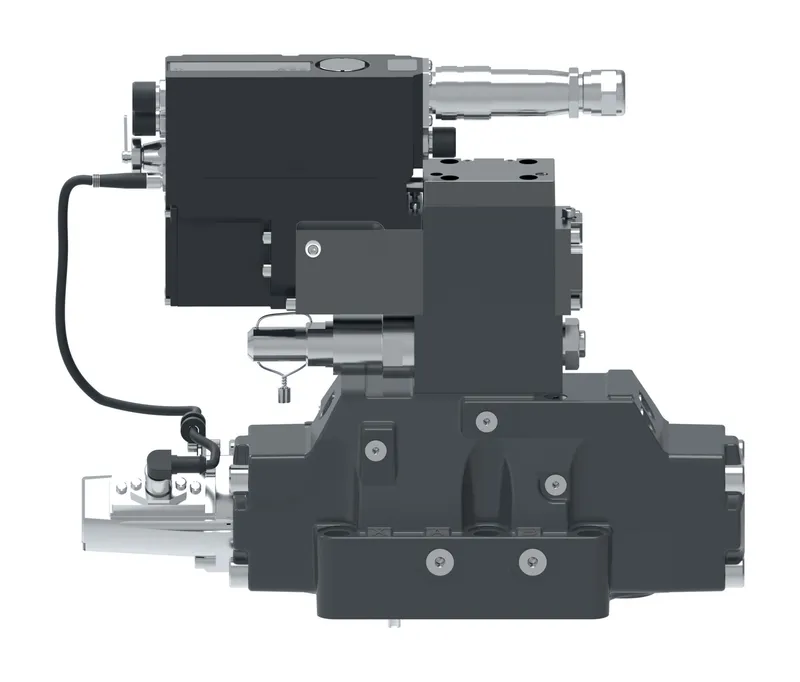

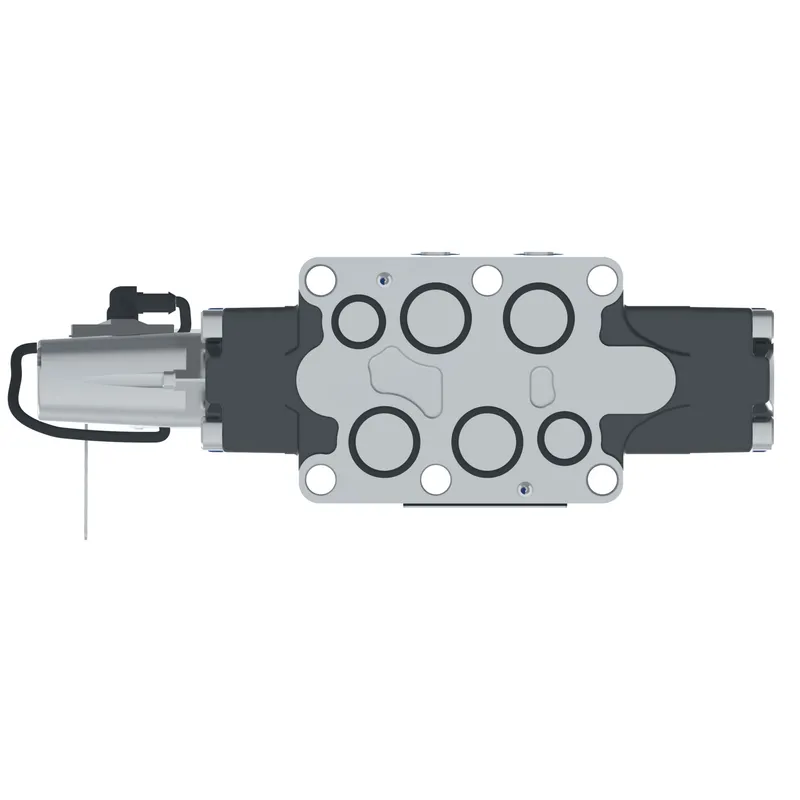

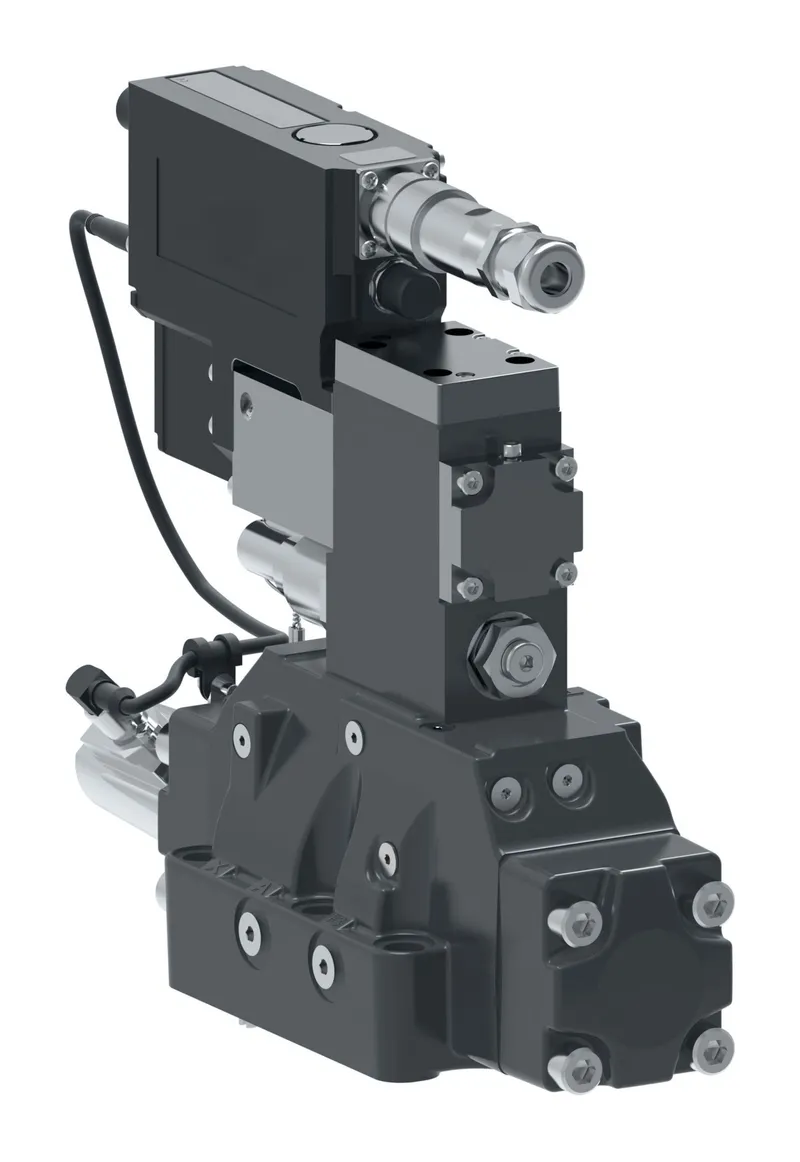

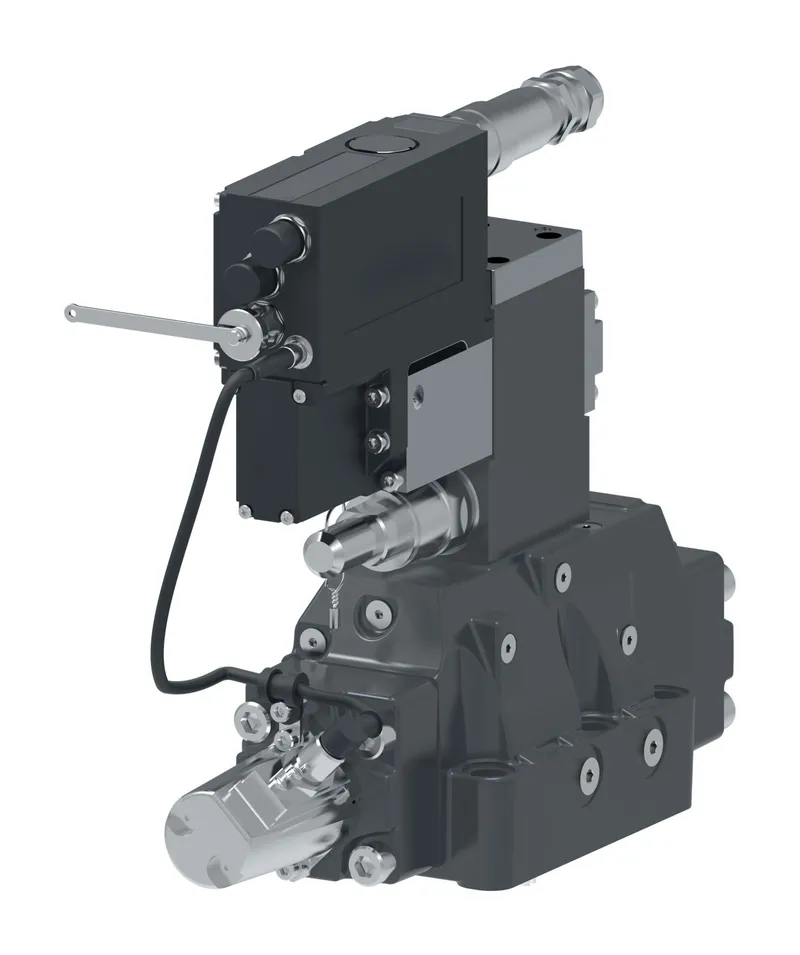

Danfoss 850AN00057A

KBH1-08-04-NS-TX-D-22-E-NS-001-10, KBH10804NSTXD22ENS00110

MPN: 850AN00057A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 850AN00057A?

Danfoss KBH1-08-04-NS-TX-D-22-E-NS-001-10, KBH10804NSTXD22ENS00110, manufacturer part number 850AN00057A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	375.00
A Port flow USGPM	99.00
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	250.00
B Port flow USGPM	66.00
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Coil voltage	24 Volt DC
Command input	4-20mA Command 4-20mA feedback
Communication protocol	None
Design Series	10 Series
Electrical Connection	Electrical (PE7) 7 pin electrical plug with mating half
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-08/NFPA D08/CETOP 8/NG25
Manual override	None
Maximum pressure BAR	350
Maximum pressure PSI	5000
Model Code 1	KBH10804NSTXD22ENS00110
On board electronics	Yes
Performance	Servo
Pilot drain	External
Pilot supply	Internal
Product height in	11.010
Product height mm	279.654
Product length in	13.420
Product length mm	340.868
Product width in	4.660
Product width mm	118.364
ProFX compatible	Yes
Reducer module	Yes
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	All ports blocked, asymmetric
Stage	Two stage
Symmetric flow	No
Tank port rating BAR	350
Tank port rating PSI	5000
Valve Mount Type	Subplate
Valve type	AxisPro level 1
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
