What is the Danfoss 850502-DC?

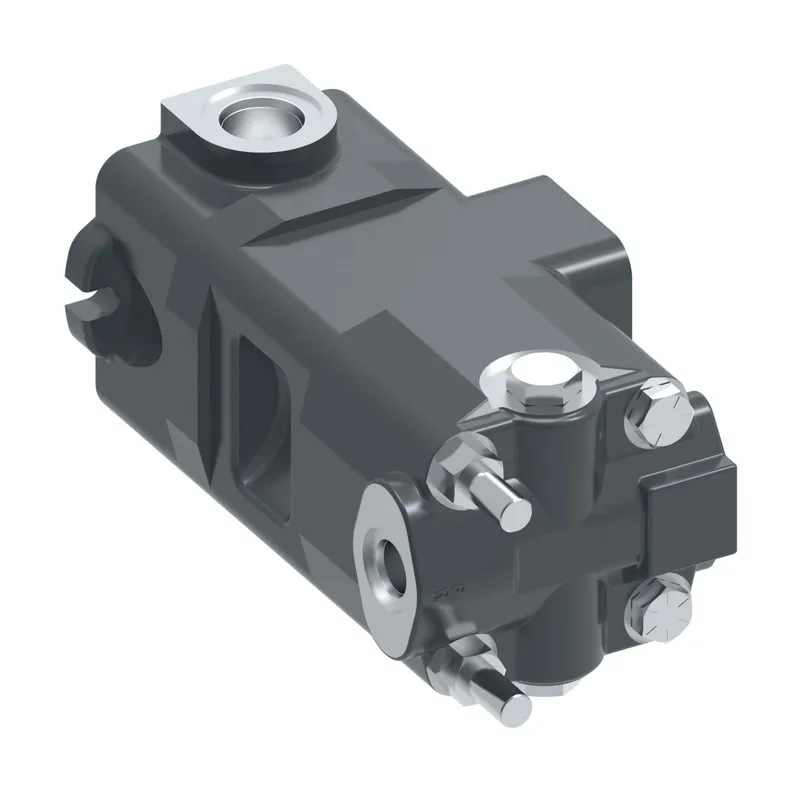

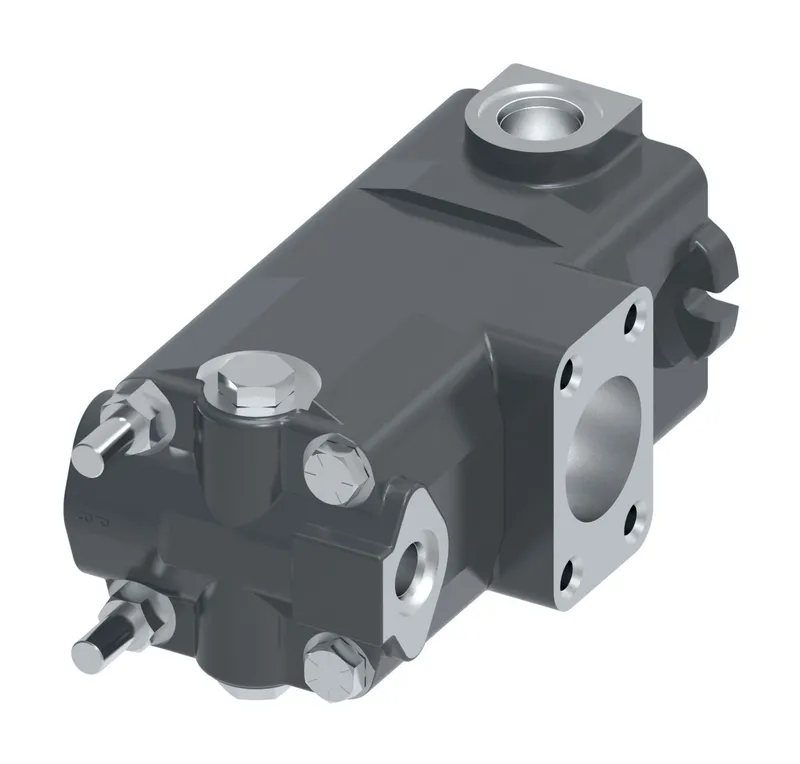

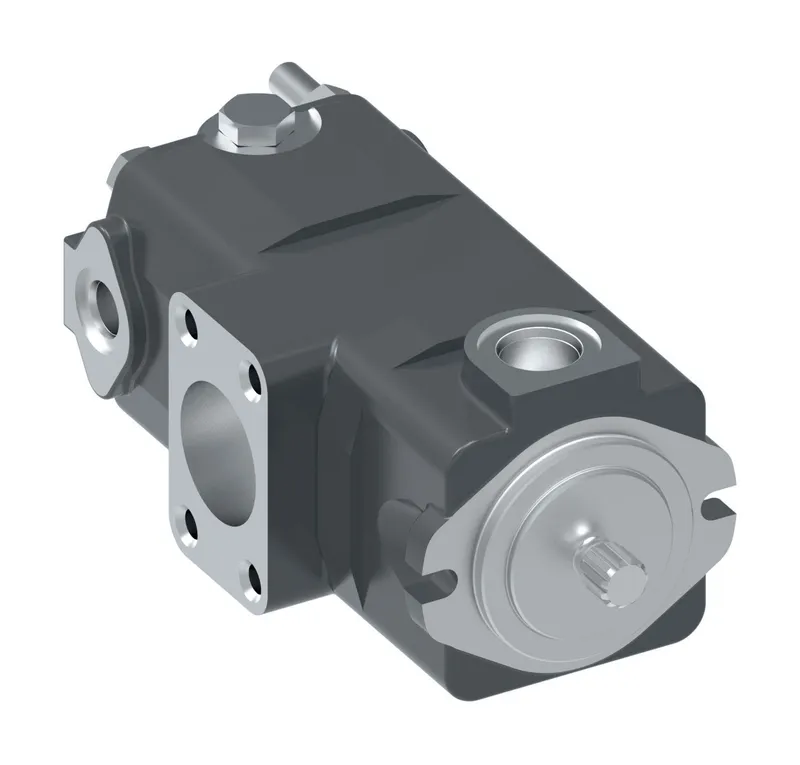

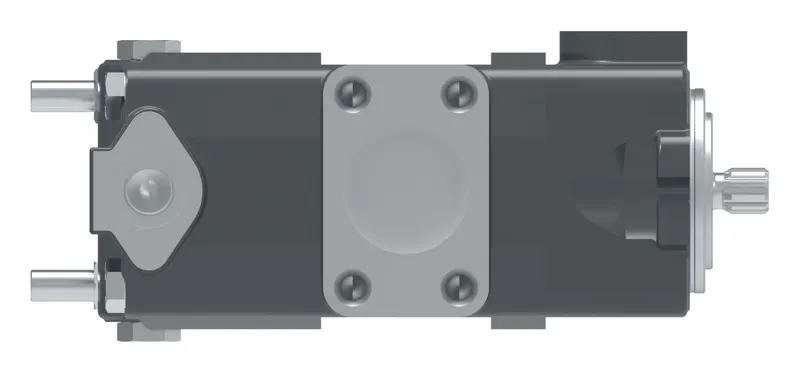

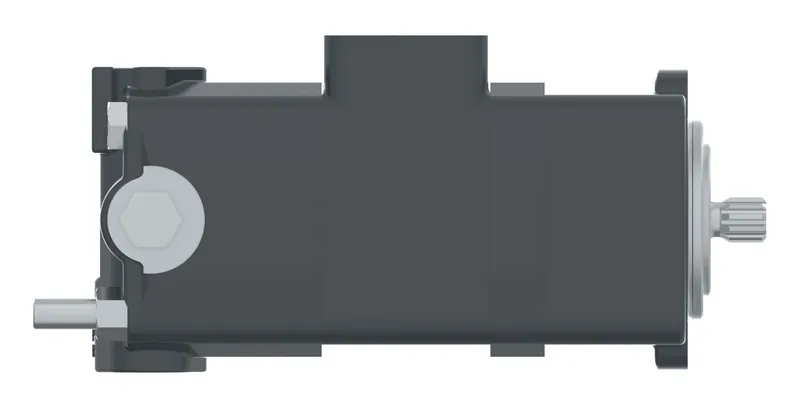

Danfoss V2020P 1F11S8T 11DC 4H 30, V2020P 1F11S8T 11DC 4H 30, manufacturer part number 850502-DC. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PUMP TYPE	VANE PUMP
Series	DOUBLE SQUARE VANE PUMP
Cover type	PRIORITY VALVE COVER
Mounting type	2 BOLT FLANGE SAE-B SIZE
INLET PORT TYPE	4 BOLT FLANGE
RING CAPACITY COVER SIDE	8 GPM
RING CAPACITY SHAFT END	11 GPM
OUTLET PORT TYPE SHAFT END	1.0625-12 UN-2B THREAD
Shaft type	13 TEETH 16/32,MAJOR DIA-.749, EXTENSION-1.625
OUTLETCOVER PORT ORIENTATION	OUTLET#2:INLINE WITH INLET PORT,OUTLET#1:90°CW TO INLET PORT
OUTLET PORT TYPE COVER SIDE	F COVER-P PORT-.750-16 UN-2B ,T PORT -.750-16 UN-2B. P COVER-PRIMARY PORT .750-16 THD,SECONDARY PORT-.875-14 THD, TANK- .750-16THD
FLOW RATE THRU ORIFICE COVER	4 GPM
PRESSURE SETTING	2000 PSI
DESIGN CODE	30-DESIGN CODE
Shaft rotation	RH CW ROTATION VIEWED FROM SHAFT END
Brand	Vickers by Danfoss
IPM FRAME SIZE	V2020 Double Pump
Model Code 1	V2020P 1F11S8T 11DC 4H 30
