Danfoss 850401-3

MPN: 850401-3
Category: Industrial vane pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 850401-3?

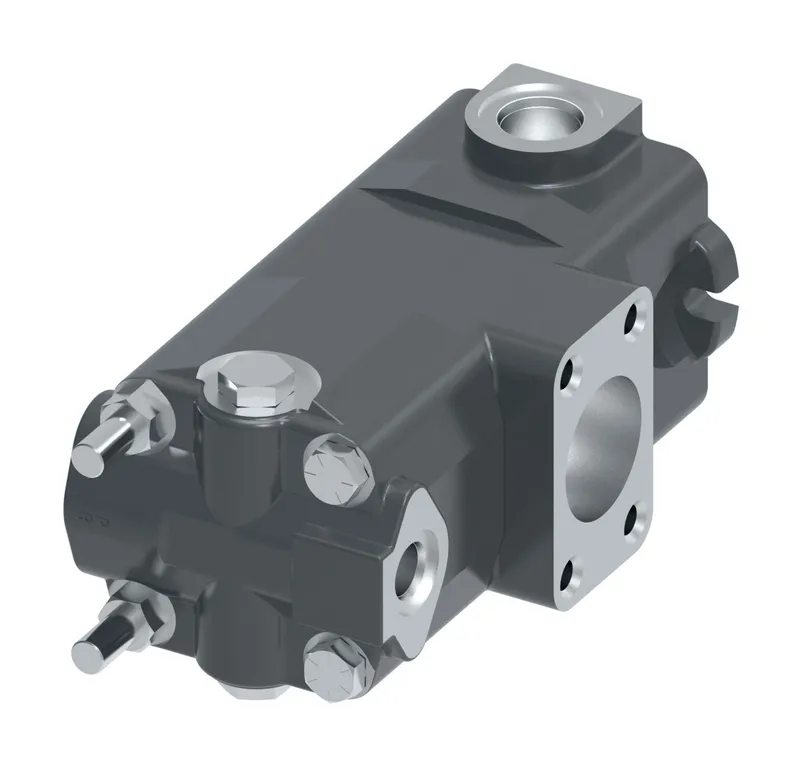

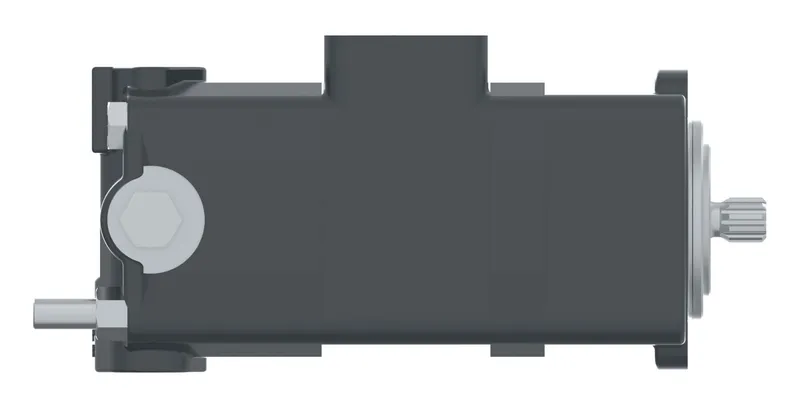

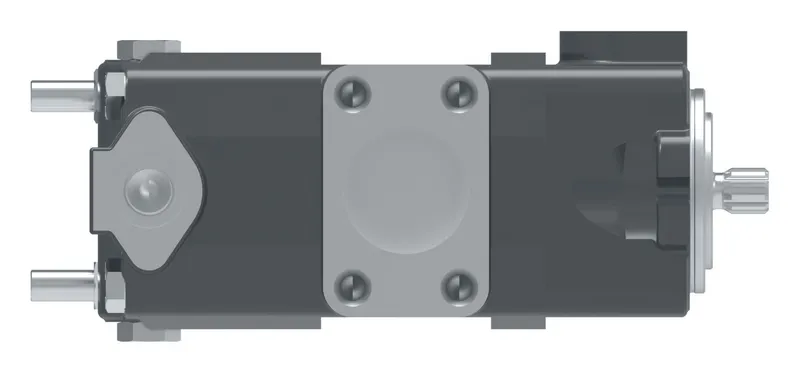

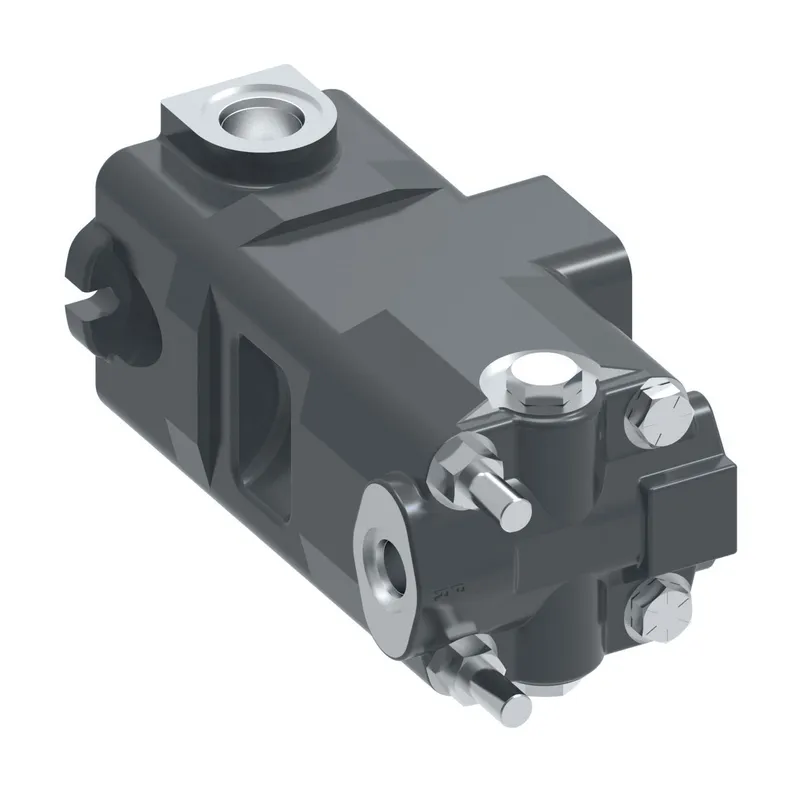

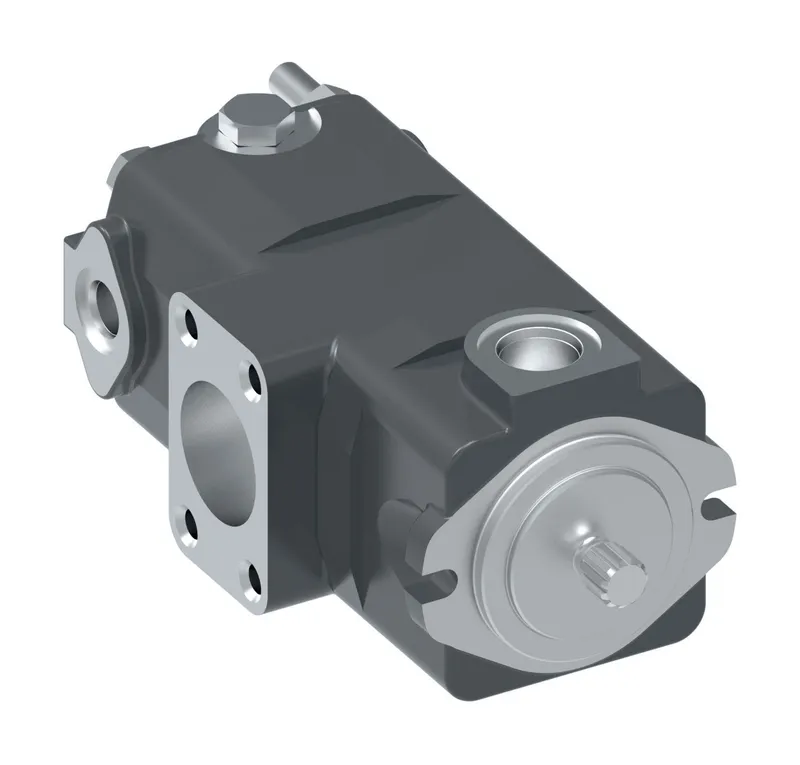

Danfoss V2020 6F9S7S 11CC30 064, V2020 6F9S7S 11CC30 064, manufacturer part number 850401-3. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PUMP TYPE	VANE PUMP
Series	DOUBLE SQUARE VANE PUMP
Mounting type	2 BOLT FLANGE SAE-A SIZE
INLET PORT TYPE	4 BOLT FLANGE
RING CAPACITY COVER SIDE	7 GPM
RING CAPACITY SHAFT END	9 GPM
OUTLET PORT TYPE SHAFT END	1.0625-12 UN-2B THREAD
Shaft type	13 TEETH 16/32,MAJOR DIA-.749, EXTENSION-1.625
OUTLETCOVER PORT ORIENTATION	OUTLET#2: INLINE WITH INLET PORT,OUTLET#1:INLINE WITH INLET PORT
OUTLET PORT TYPE COVER SIDE	COVER STANDARD - 1.062-12 UN-2B THRD, F COVER - PRESSURE PORT -.750-16 UN-2B THRD, TANK PORT-1.0625-12 UN-2B THRD
DESIGN CODE	30-DESIGN CODE
Shaft rotation	RH CW ROTATION VIEWED FROM SHAFT END
SPECIAL FEATURE SUFFIX	RING/ROTOR & VANES MODIFIED FOR 3000 PSI SQ CUT SEALING RING AT PRESSURE PLATE DOUBLE
Brand	Vickers by Danfoss
IPM FRAME SIZE	V2020 Double Pump
Model Code 1	V2020 6F9S7S 11CC30 064
