Danfoss
850061-3
Danfoss 850065-M
Industrial vane pump
- MPN
- 850065-M
- Category
- Industrial vane pumps
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

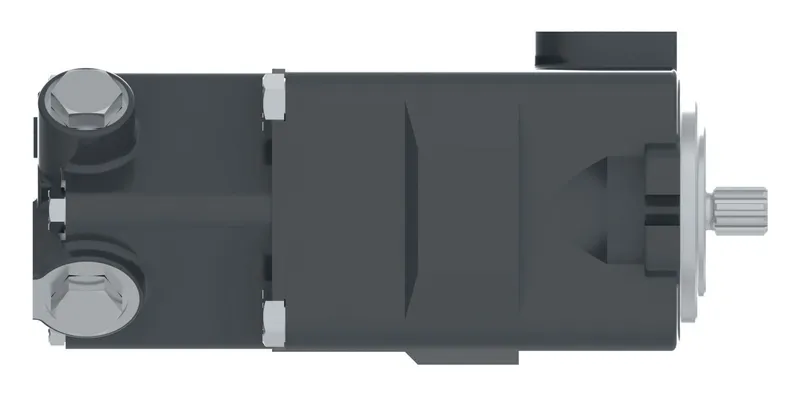

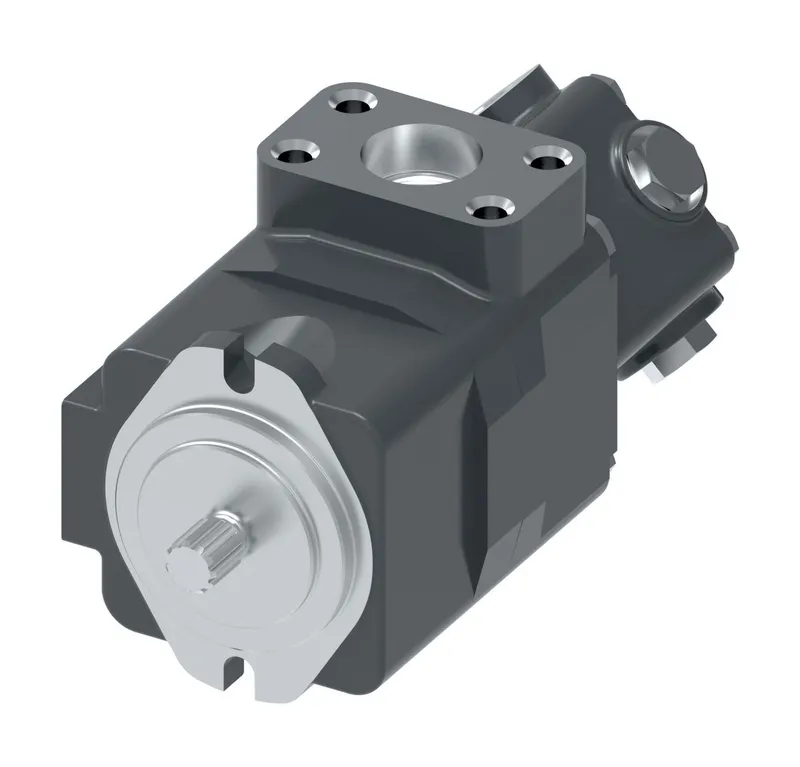

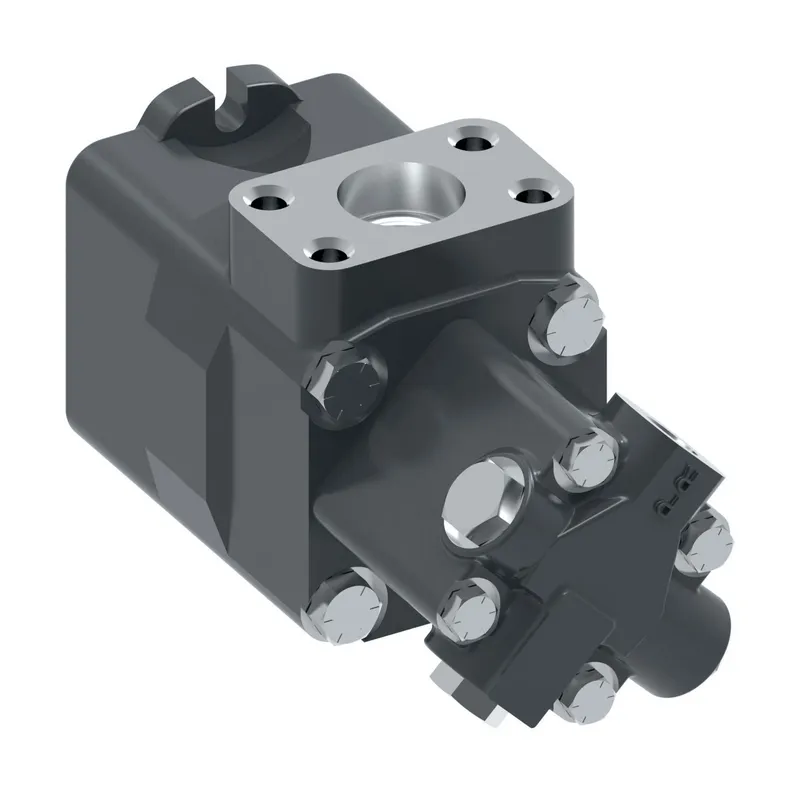

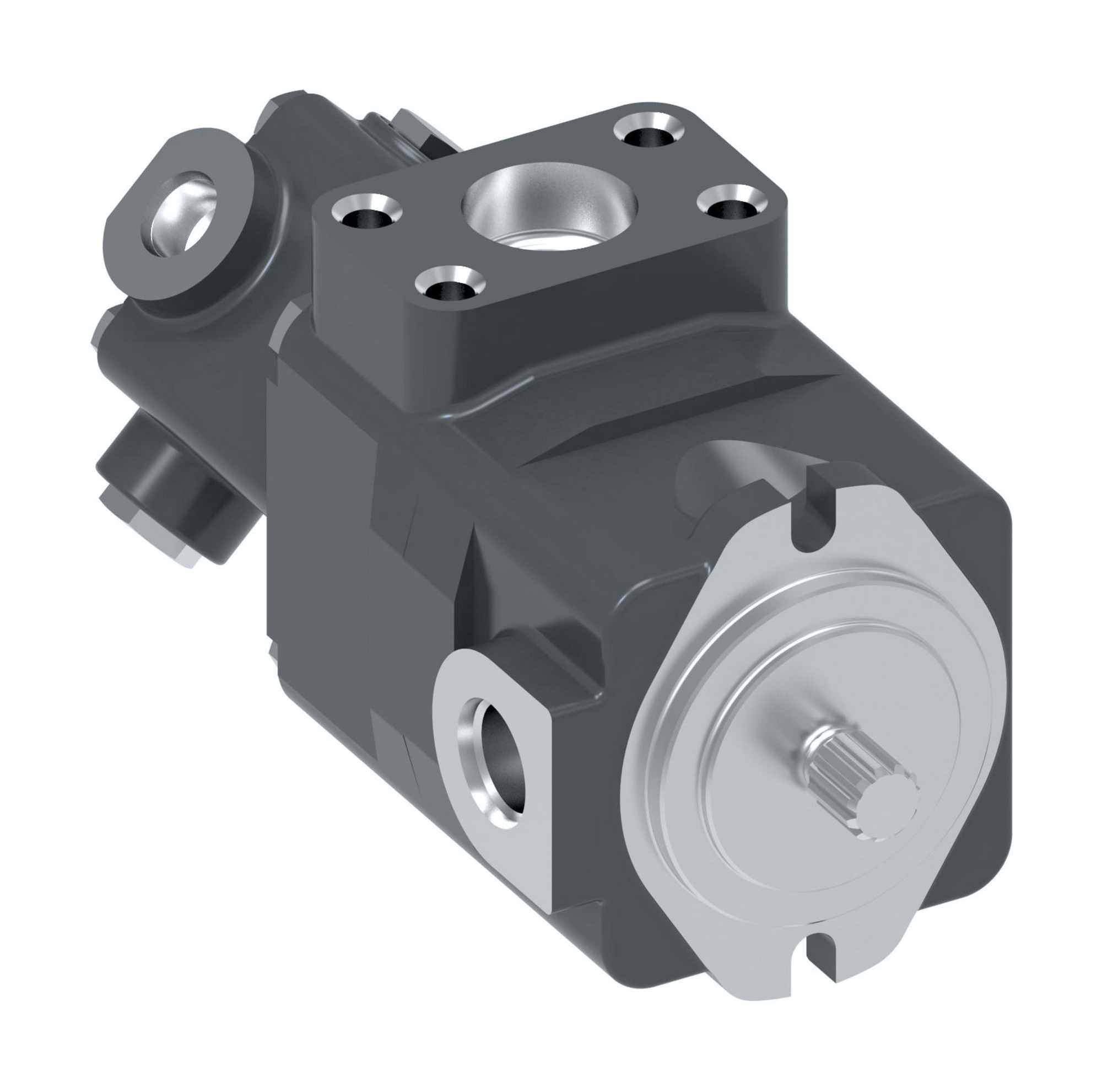

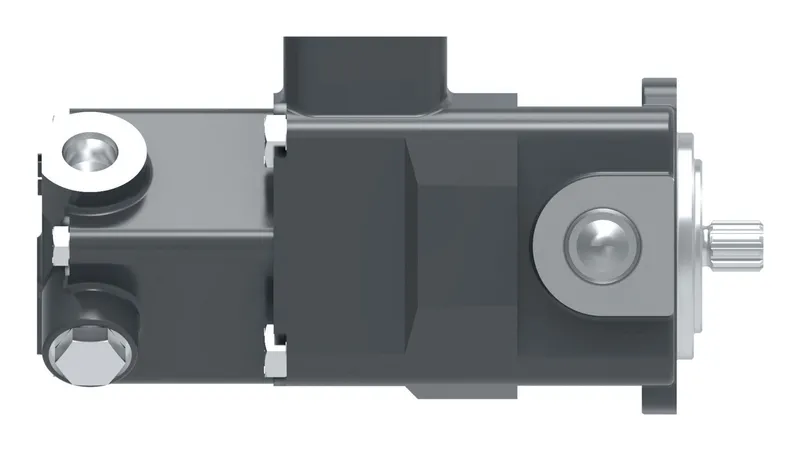

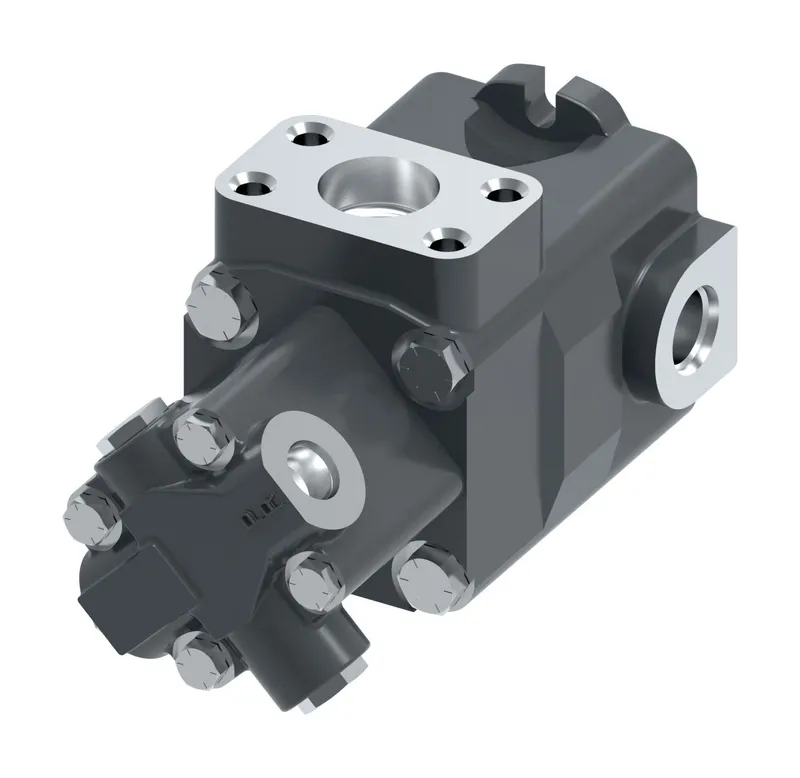

What is the Danfoss 850065-M?
Danfoss V2010-1F9S6S-1BD12, V2010-1F9S6S-1BD12, manufacturer part number 850065-M. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| PUMP TYPE | VANE PUMP |
| Series | DOUBLE SQUARE PUMP |
| Mounting type | 2 BOLT FLANGE SAE-B SIZE |
| INLET PORT TYPE | 4 BOLT FLANGE |
| RING CAPACITY COVER SIDE | 6 GPM |
| RING CAPACITY SHAFT END | 9 GPM |
| OUTLET PORT TYPE SHAFT END | 1.0625-12 UN-2B THREAD |
| Shaft type | 3/16 SQUARE KEY,MAJOR DIA-.875, EXTENSION-2.31 |
| OUTLETCOVER PORT ORIENTATION | OUTLET#2: 135 ° CW FROM INLET PORT ,OUTLET#1:90 °CCW FROM INLET PORT |
| OUTLET PORT TYPE COVER SIDE | .750-16 UN-2B THREAD |
| DESIGN CODE | 12-DESIGN CODE |
| Shaft rotation | RH CW ROTATION VIEWED FROM SHAFT END |
| Brand | Vickers by Danfoss |
| IPM FRAME SIZE | V2010 Double Pump |
| Model Code 1 | V2010-1F9S6S-1BD12 |
850065-M: frequently asked questions
When can 850065-M be shipped?
850065-M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 850065-M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 850065-M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 850065-M, subject to availability and destination.
