Danfoss 848AN00040A

DG5V-7-6C-T-M-U-D6-50, DG5V76CTMUD650

MPN: 848AN00040A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 848AN00040A?

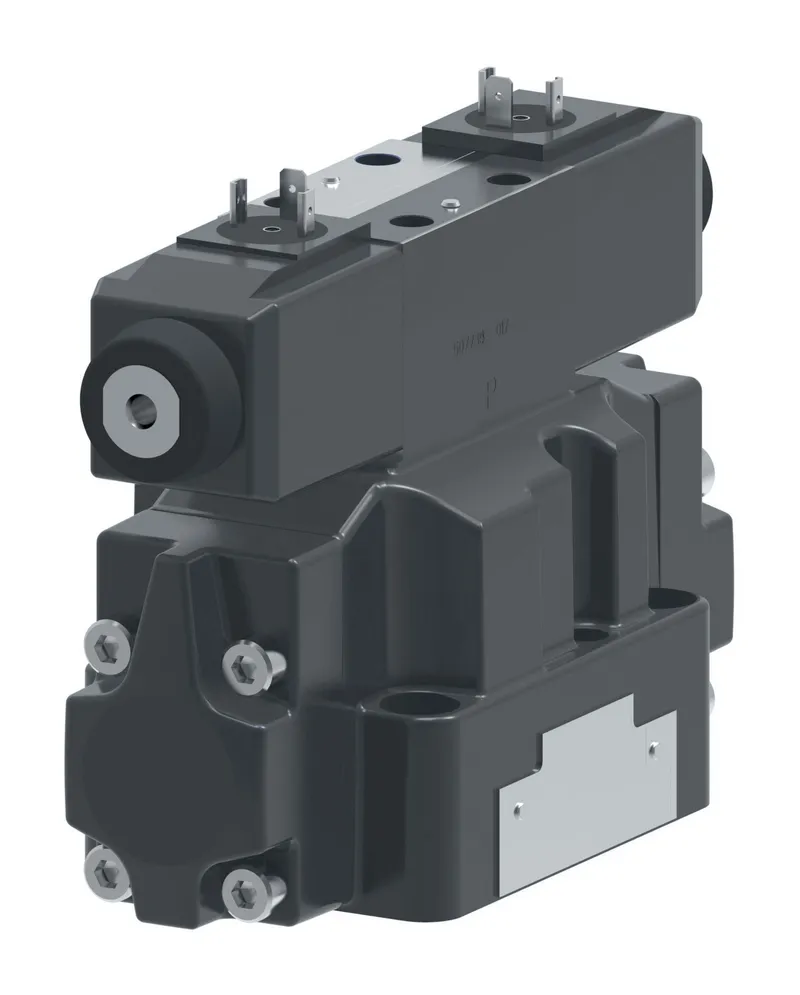

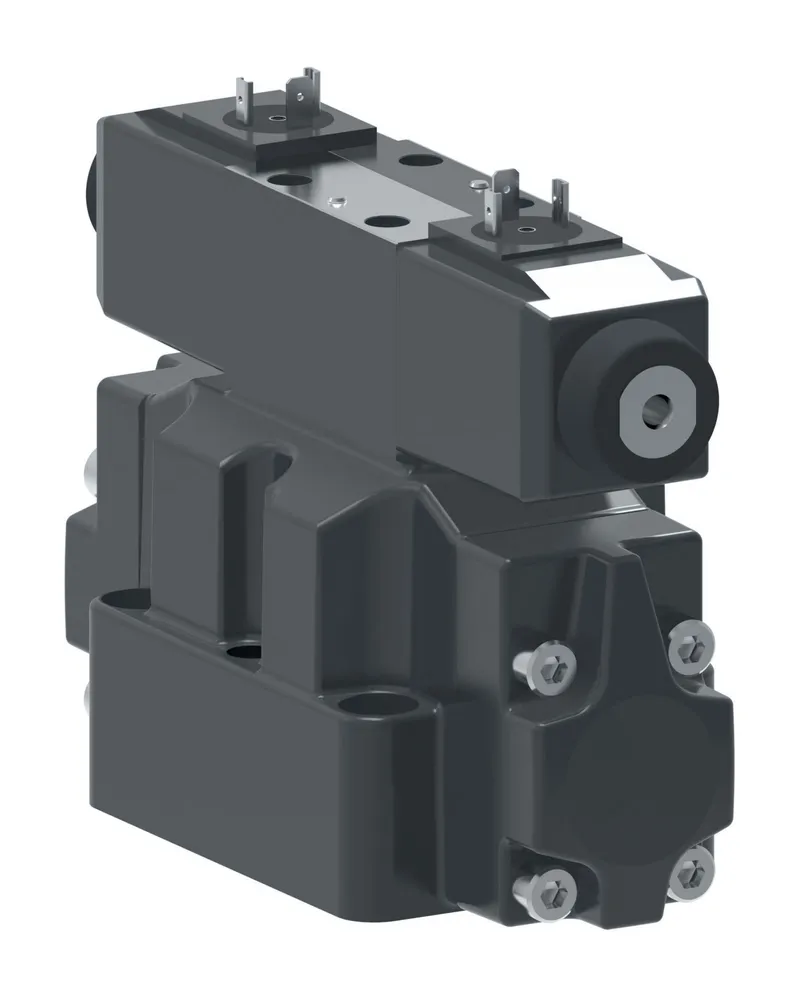

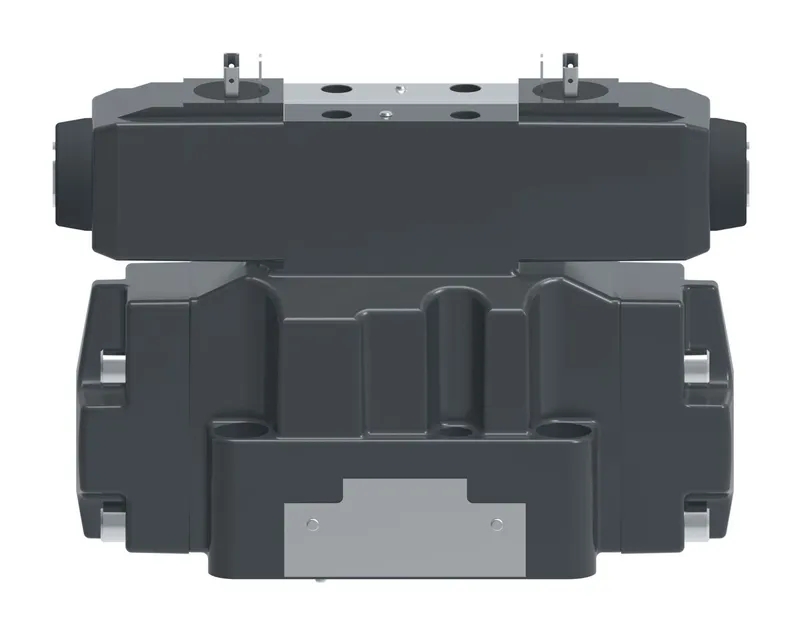

Danfoss DG5V-7-6C-T-M-U-D6-50, DG5V76CTMUD650, manufacturer part number 848AN00040A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	220 VAC 50 Hz/240 VAC 60 Hz
Design Series	50 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Ext pilot pressure	Internal
Flow rate upto GPM	79.0
Flow rate upto LPM	300.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Int pilot drain	Internal

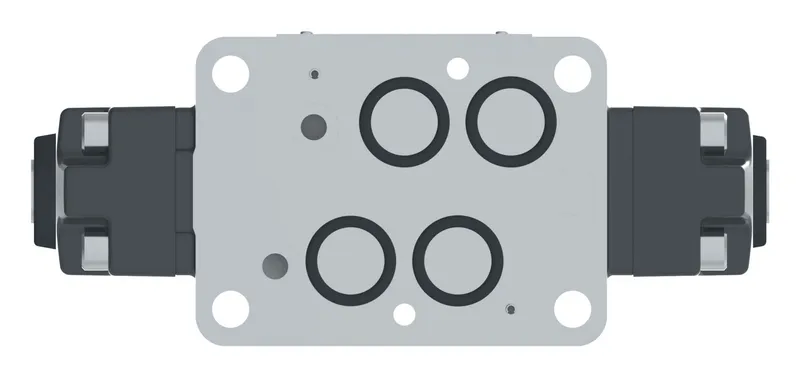

Interface	ISO4401-07
Manual override	Plain
Model Code 1	DG5V76CTMUD650
Performance	High performance
Power Consumption	49VA 50HZ - 48VA 60HZ
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	7.170
Product height mm	182.118
Product length in	7.800
Product length mm	198.120
Product width in	3.650
Product width mm	92.71
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 6
Spring Arrangement	Spring centred
Stage	Two stage
Surge Suppr Damper	No
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

848AN00040A: frequently asked questions

When can 848AN00040A be shipped?

848AN00040A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 848AN00040A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 848AN00040A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 848AN00040A, subject to availability and destination.
