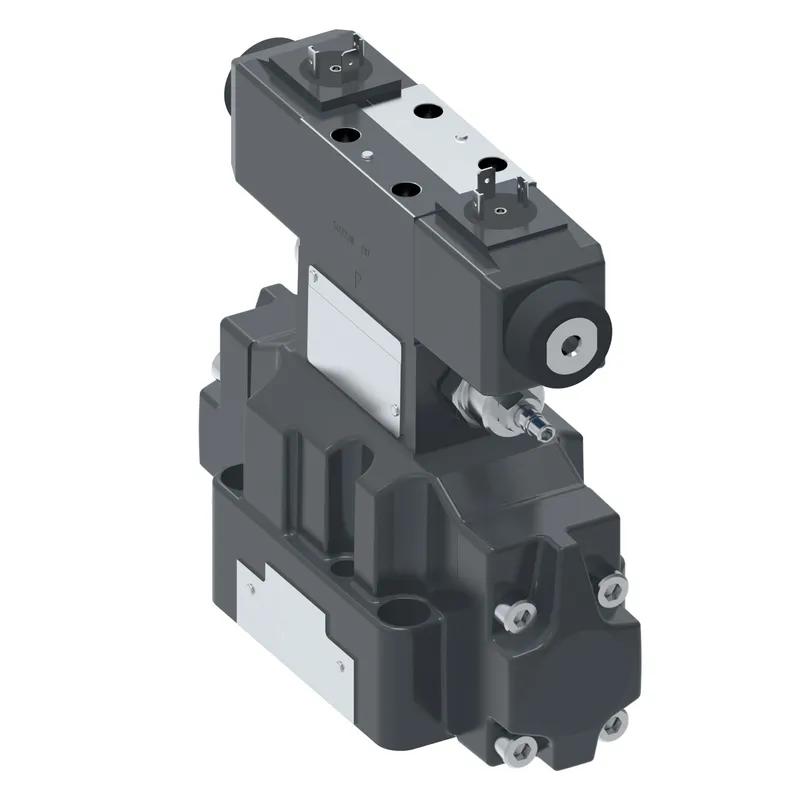

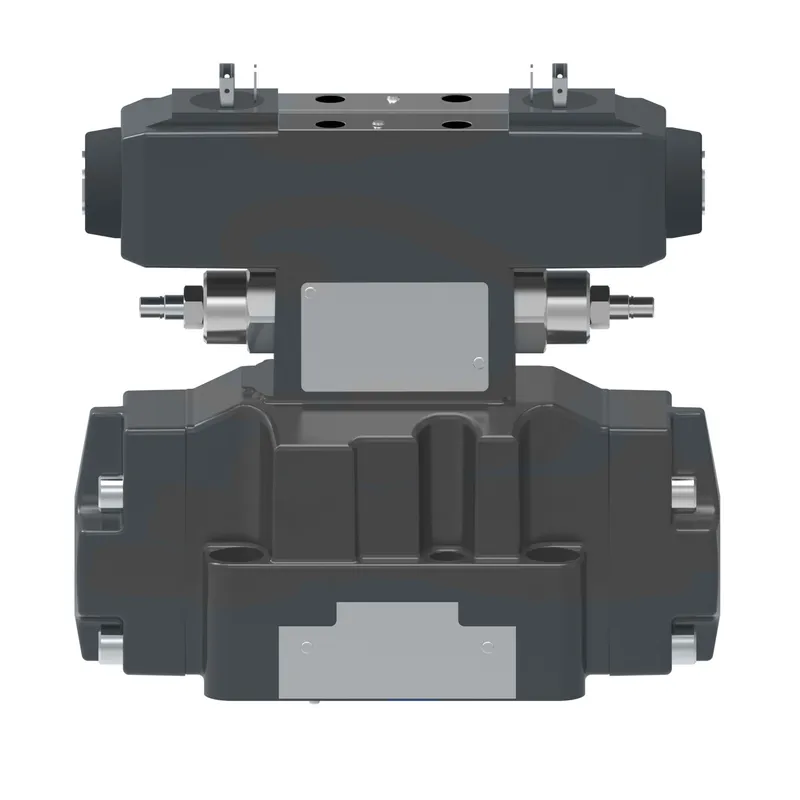

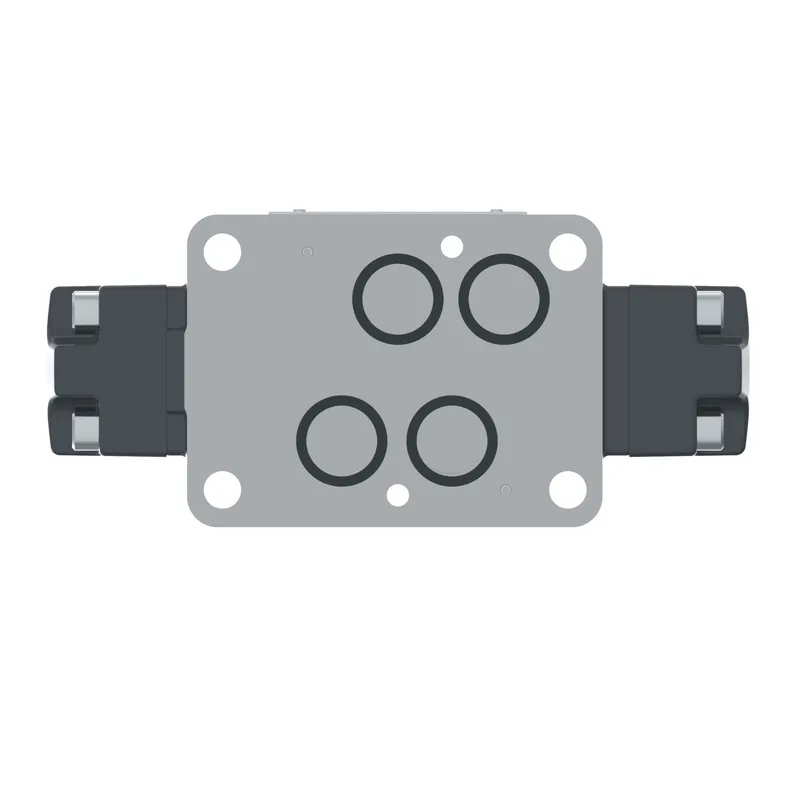

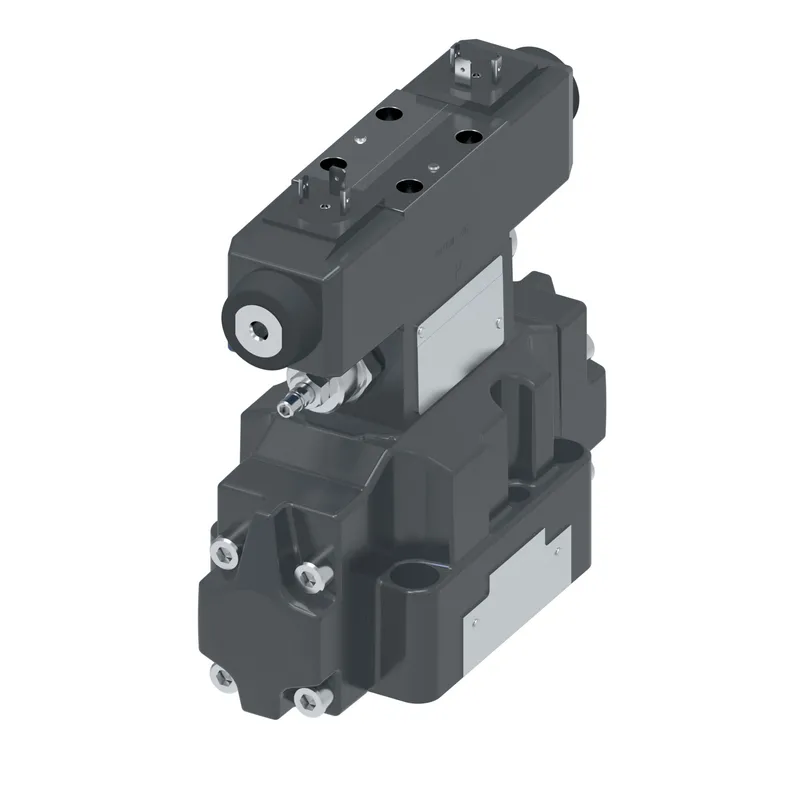

Danfoss 848AN00020A

DG5V-7-6C-2-M-U-H7-50, DG5V76C2MUH750

MPN: 848AN00020A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 848AN00020A?

Danfoss DG5V-7-6C-2-M-U-H7-50, DG5V76C2MUH750, manufacturer part number 848AN00020A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	50 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Ext pilot pressure	Internal
Flow rate upto GPM	79.0
Flow rate upto LPM	300.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Int pilot drain	External
Interface	ISO4401-07
Manual override	Plain
Model Code 1	DG5V76C2MUH750
Performance	High performance
Power Consumption	30 watt
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	8.740
Product height mm	221.996
Product length in	8.700
Product length mm	220.980
Product width in	3.650
Product width mm	92.71
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Control	Pilot choke adjustment
Spool Position Monitor	No
Spool Type	Spool 6
Spring Arrangement	Spring centred
Stage	Two stage
Surge Suppr Damper	No
Tank port rating BAR	300
Tank port rating PSI	4351
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
