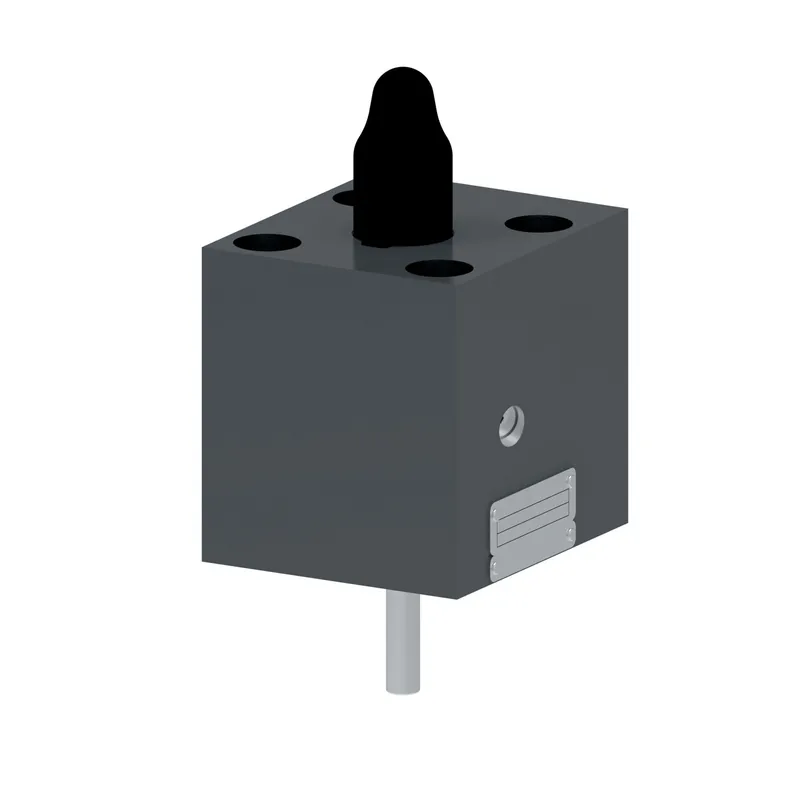

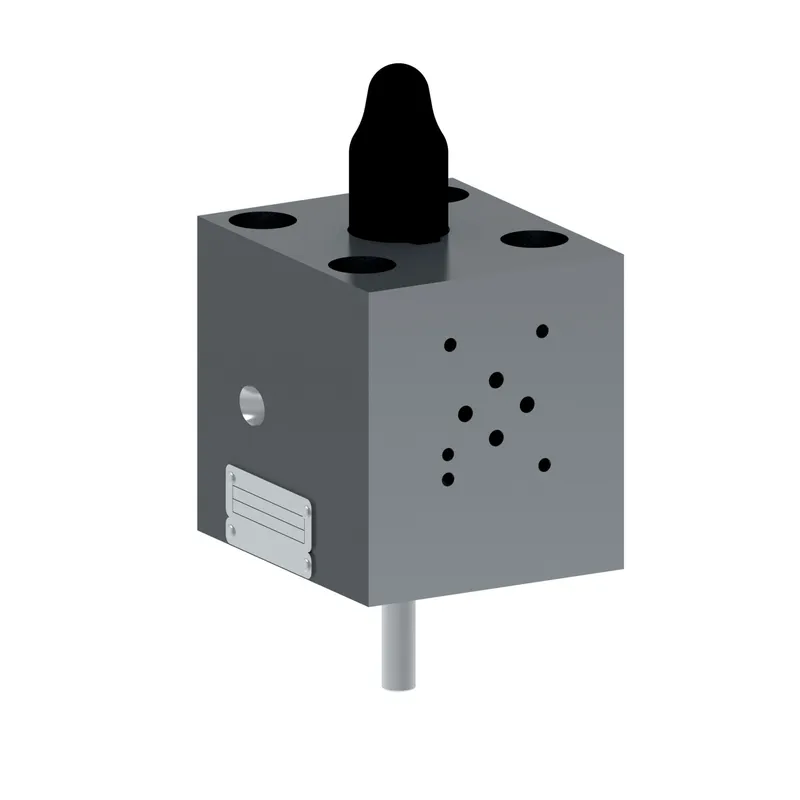

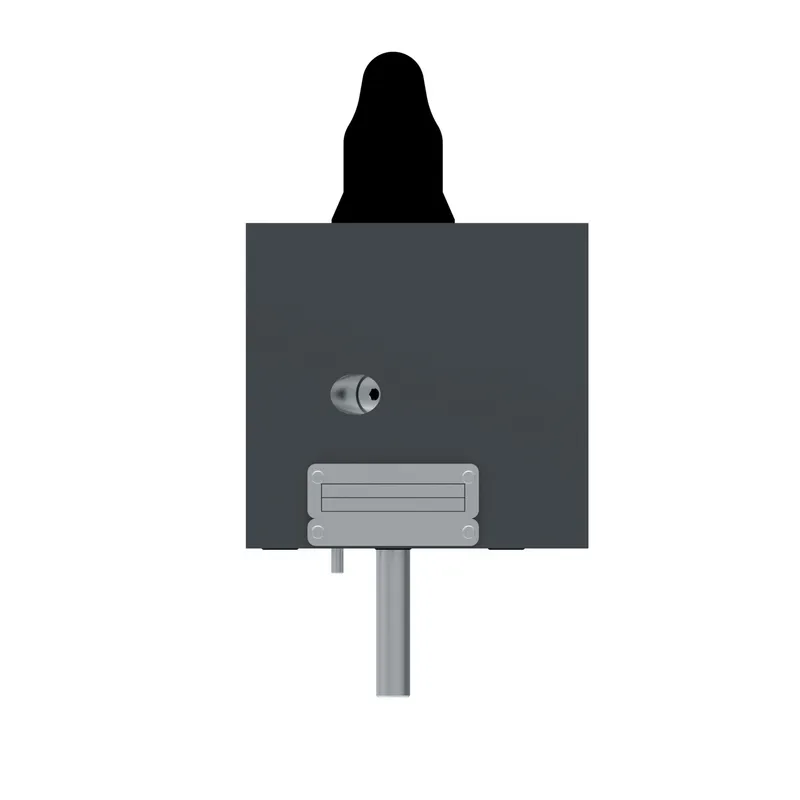

Danfoss 846AN00304A

F3-CVCS-40-A3-W-20, F3CVCS40A3W20

MPN: 846AN00304A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 846AN00304A?

Danfoss F3-CVCS-40-A3-W-20, F3CVCS40A3W20, manufacturer part number 846AN00304A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	Yes
Adjustment type	Wrench with hex locknut
Brand	Vickers by Danfoss
Cover type	Stroke adjuster with size 03 pilot interface
Design Series	20 Design
Flow rate LPM	1700
Flow rate USGPM	450.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Phosphate Ester and other Synthetic Fire Resistant Fluids
Gauge port thread	SAE
Insert ratio	1:1.5
Insert type	Flow control
Interface	Yes
Leakage	Standard
Model Code 1	F3CVCS40A3W20
Normal function	Normally open
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	7.120
Product height mm	180.848
Product length in	5.350
Product length mm	135.890
Product width in	5.080
Product width mm	129.032
Seal material	Viton
Size	NG 40
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve cover
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
