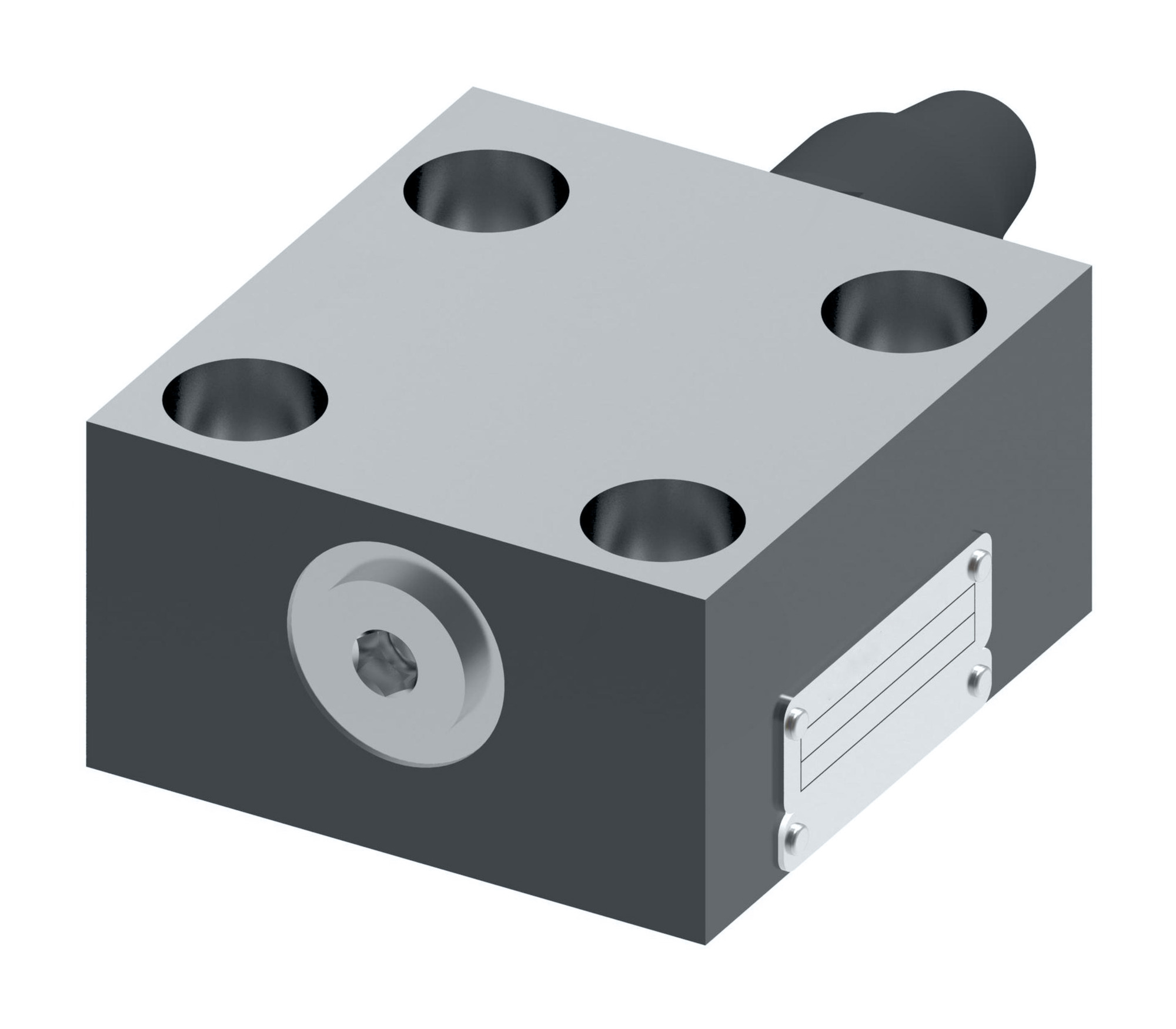

Danfoss 846AN00142A

F3-CVCS-16-C3-W-350-20, F3CVCS16C3W35020

MPN: 846AN00142A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 846AN00142A?

Danfoss F3-CVCS-16-C3-W-350-20, F3CVCS16C3W35020, manufacturer part number 846AN00142A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	Yes
Adjustment type	Wrench with hex locknut
Brand	Vickers by Danfoss
Cover type	Relief with pilot control
Cracking pressure BAR	1.70
Cracking pressure PSI	25.0
Design Series	20 Design
Flow rate LPM	255
Flow rate USGPM	67.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Phosphate Ester and other Synthetic Fire Resistant Fluids
Gauge port thread	SAE
Insert ratio	1:1
Insert type	Relief
Interface	Yes
Leakage	Standard
Model Code 1	F3CVCS16C3W35020
Normal function	Normally closed
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	2.440
Product height mm	61.976
Product length in	5.750
Product length mm	146.050
Product width in	2.720
Product width mm	69.088
Seal material	Viton
Size	NG 16
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve cover
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
