What is the Danfoss 846AN00083A?

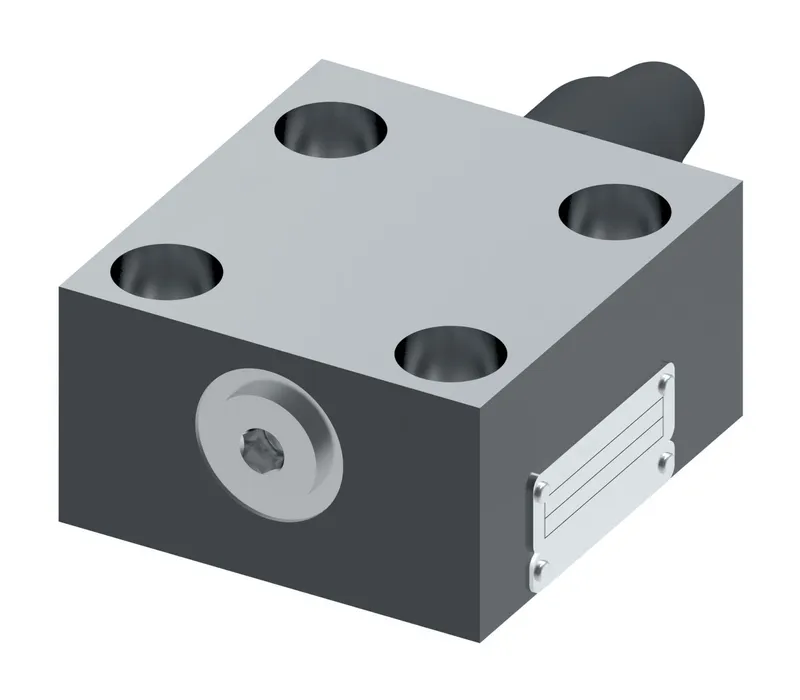

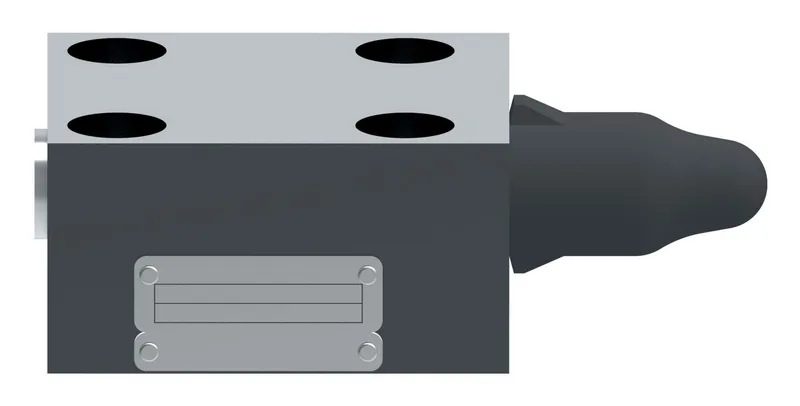

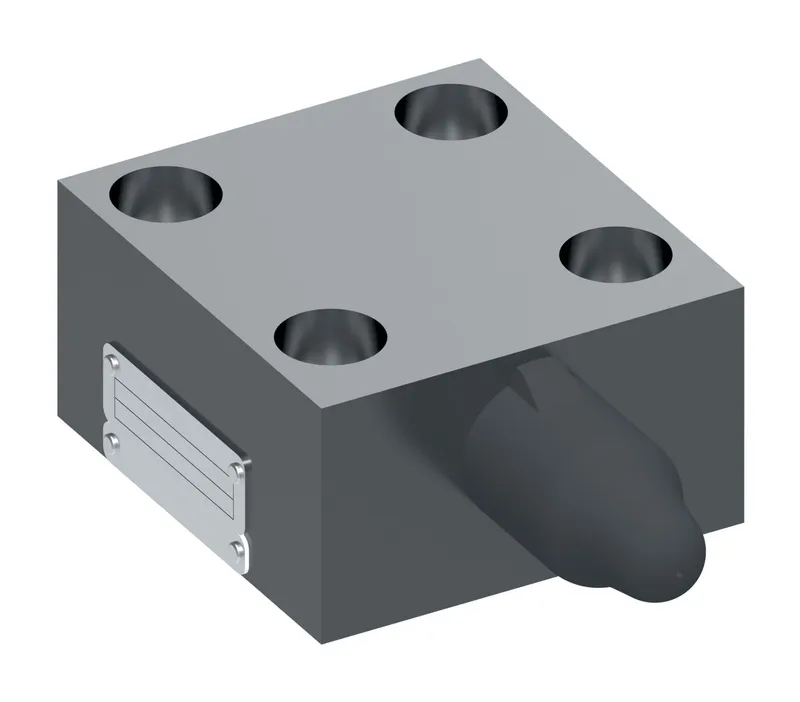

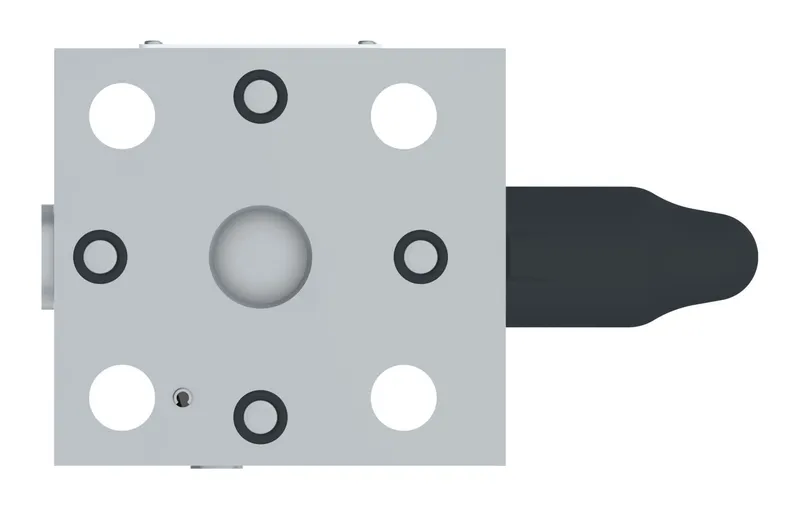

Danfoss CVCS-40-C-W-250-20, CVCS40CW25020, manufacturer part number 846AN00083A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	Yes
Adjustment type	Wrench with hex locknut
Brand	Vickers by Danfoss
Cover type	Relief
Cracking pressure BAR	3.30
Cracking pressure PSI	48.0
Design Series	20 Design
Flow rate LPM	1700
Flow rate USGPM	450.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:1
Insert type	Relief
Interface	No
Leakage	Standard
Model Code 1	CVCS40CW25020
Normal function	Normally closed
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.220
Product height mm	81.788
Product length in	7.090
Product length mm	180.086
Product width in	5.080
Product width mm	129.032
Seal material	Buna-N
Size	NG 40
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve cover
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
