What is the Danfoss 846AN00034A?

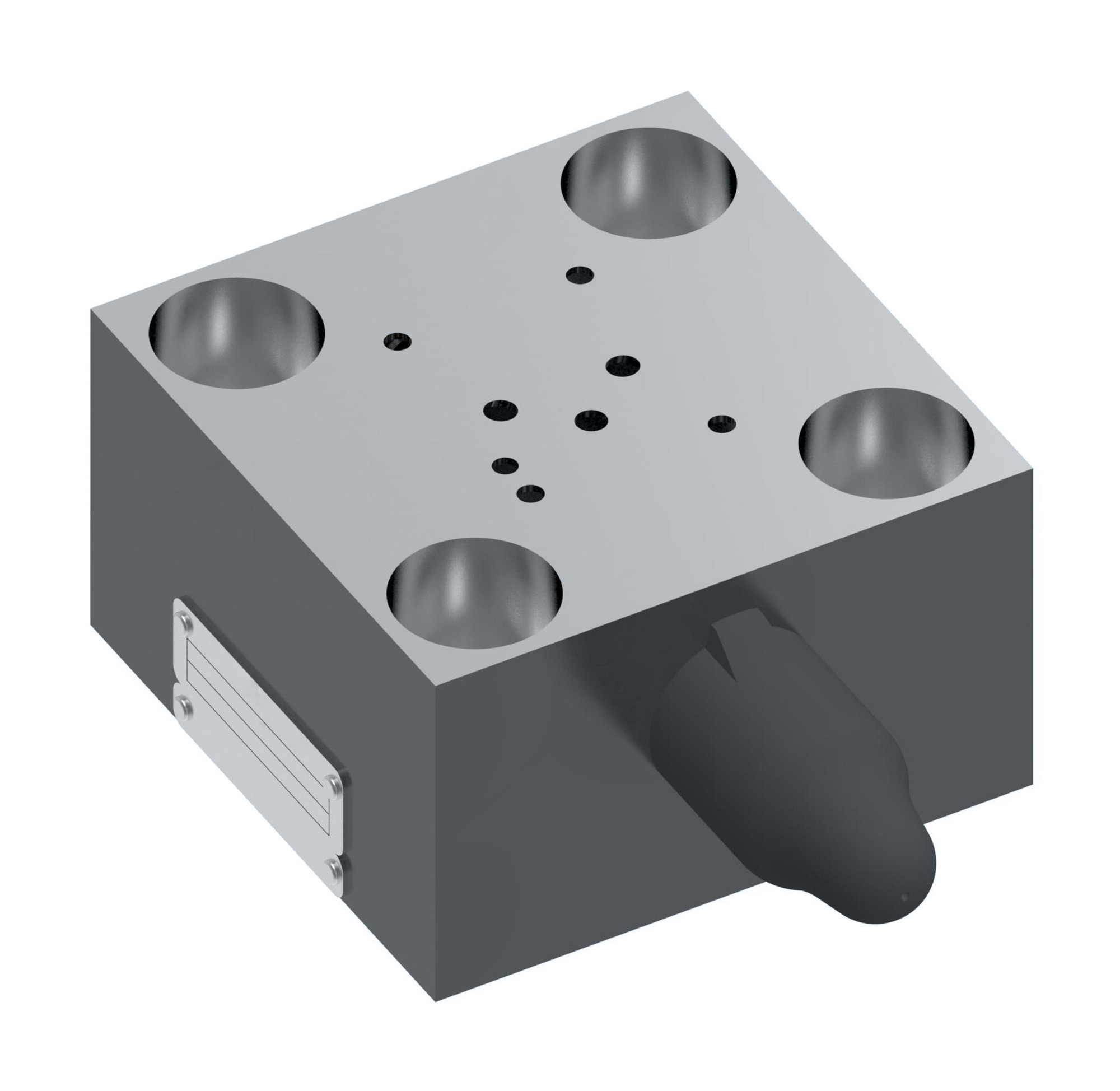

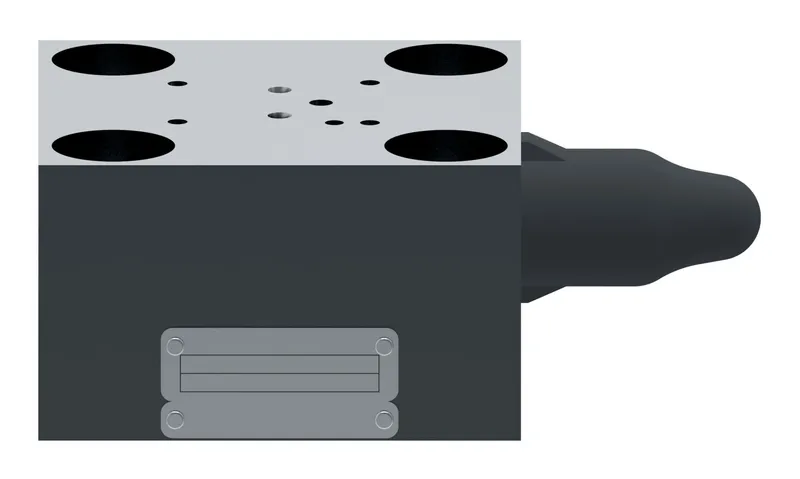

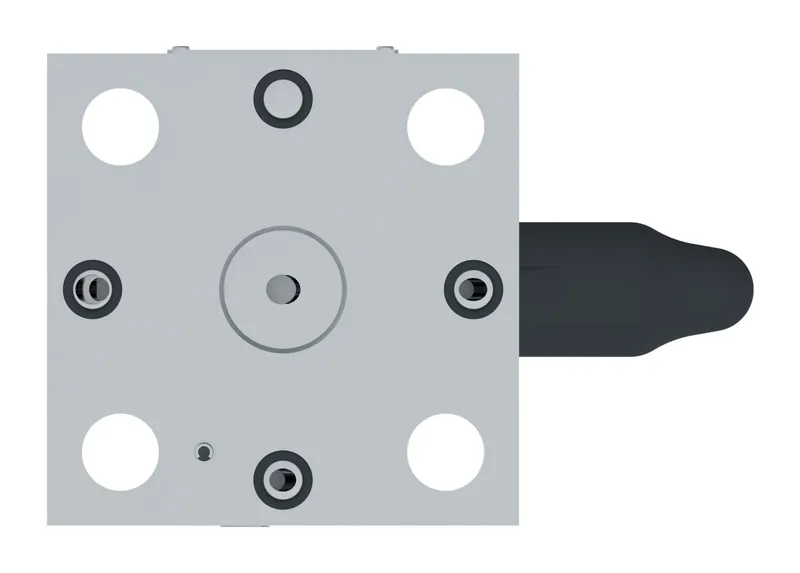

Danfoss CVCS-25-U3-W-250-20, CVCS25U3W25020, manufacturer part number 846AN00034A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	Yes
Adjustment type	Wrench with hex locknut
Brand	Vickers by Danfoss
Cover type	Unloading relief with size 03 pilot interface
Cracking pressure BAR	5.00
Cracking pressure PSI	72.0
Design Series	20 Design
Flow rate LPM	300
Flow rate USGPM	80.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:1
Insert type	Unloading
Interface	Yes
Leakage	Standard
Model Code 1	CVCS25U3W25020
Normal function	Normally closed
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	2.480
Product height mm	62.992
Product length in	5.990
Product length mm	152.146
Product width in	3.510
Product width mm	89.154
Seal material	Buna-N
Size	NG 25
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve cover
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
