Danfoss 84011901

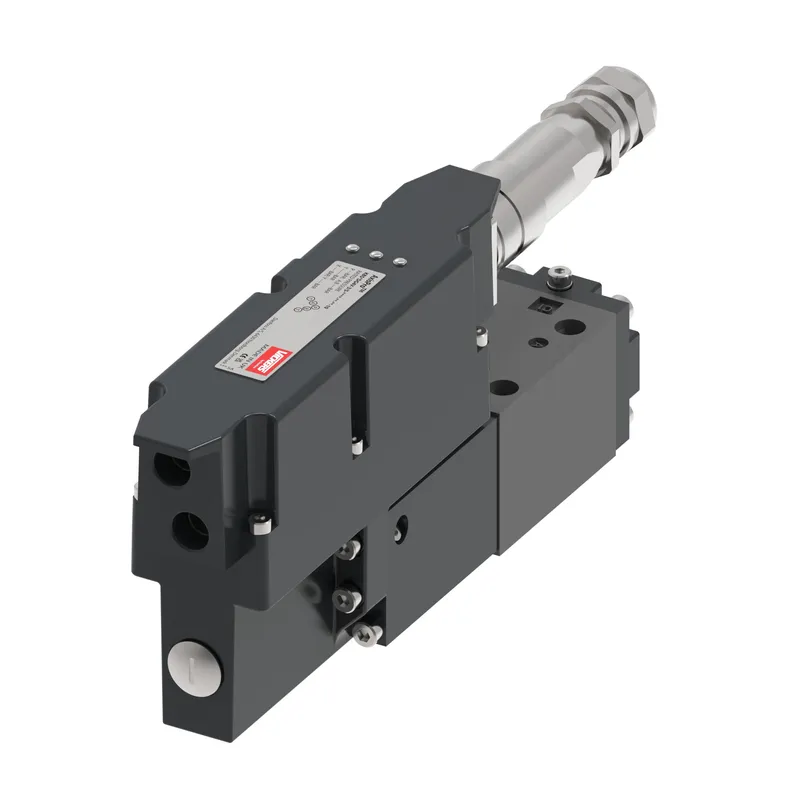

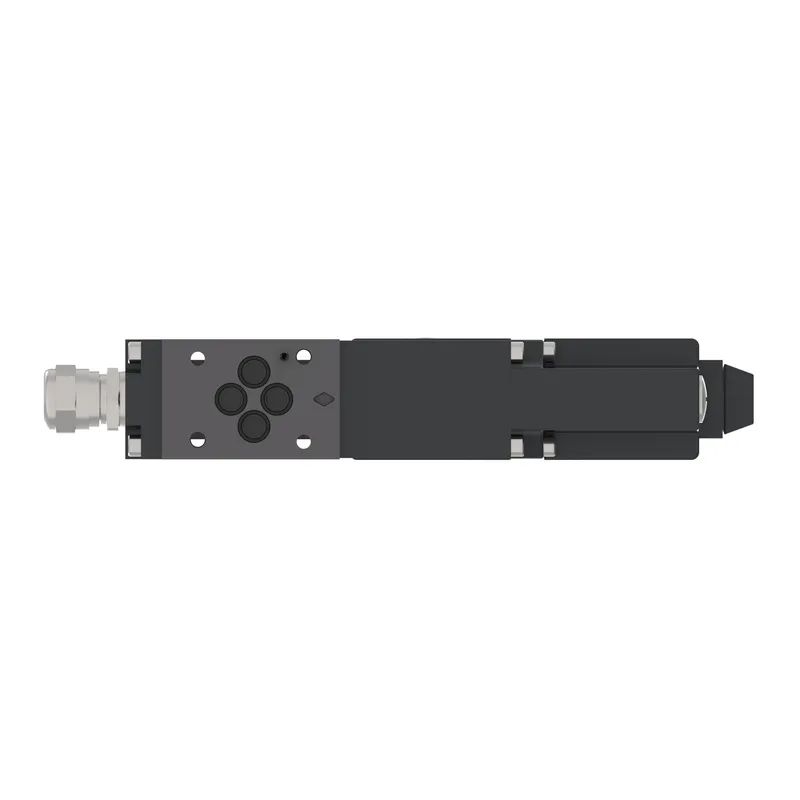

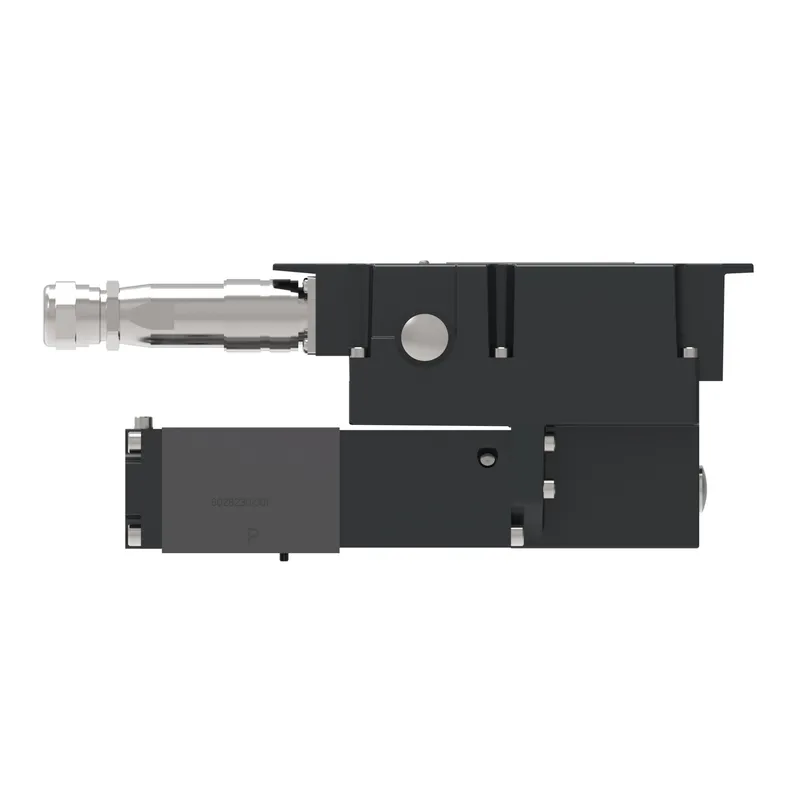

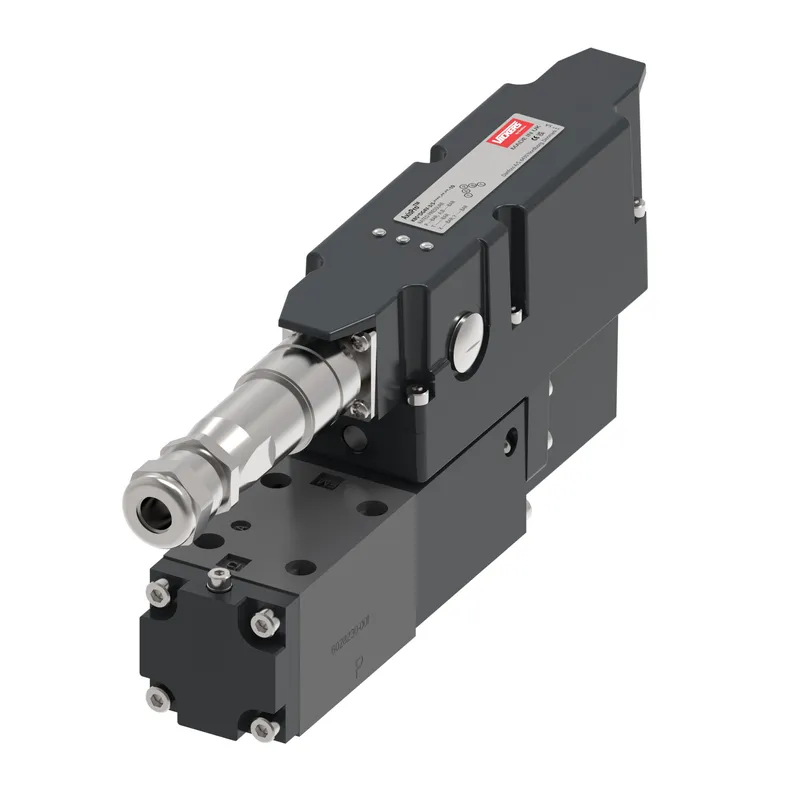

SERVO PROPORTIONAL- SIZE 03, KBSD140300092L01U15N52E07NSN01H0010000000

MPN: 84011901
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 84011901?

Danfoss SERVO PROPORTIONAL- SIZE 03, KBSD140300092L01U15N52E07NSN01H0010000000, manufacturer part number 84011901. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation	Solenoid operated single stage
Brand	Vickers by Danfoss
Coil Rating & Overrides	24 VDC Amplifier supply, water-resistant overrides
Command Signal	+/- 20mA Current
Configuration level	Directional level - 1
Design Series	Design series -01
Digital Comm. Interface	Not selected
Electrical Connections	7 -PIN connector with plug, no enable
EN Series	Omit for standard
External Sensor	NONE
ISO Interface	ISO 4401 size-03
Model	Industrial proportional valves
Model Code 1	KBSD140300092L01U15N52E07NSN01
Model Code 2	H0010000000
Monitor Output	4-20mA Current feedback signal
Pilot Supply & Drain Option	None_
Software Version	Software version -001
Spool Type	2-gain Symmetric – 1.5LPM @ 60% -15LPM @100% - At Failsafe -all portsbllocked.
Valve Type	Proportional valve with integrated amplifier and electronic feedback
