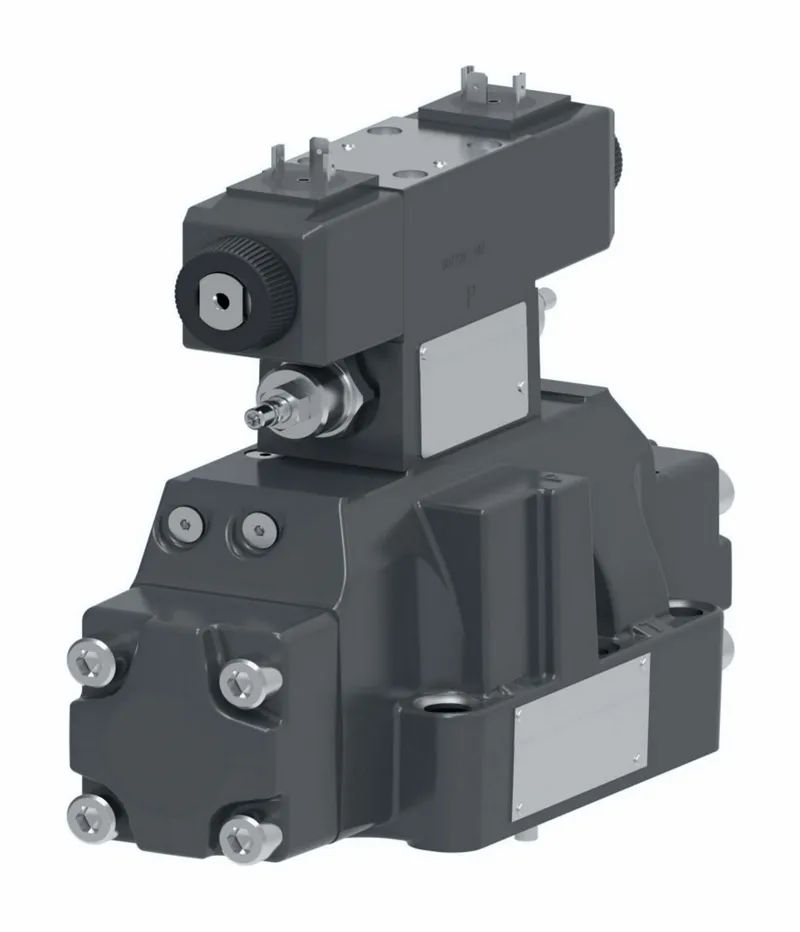

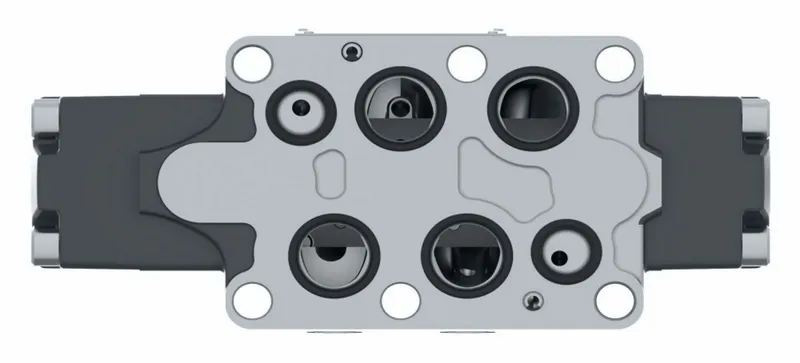

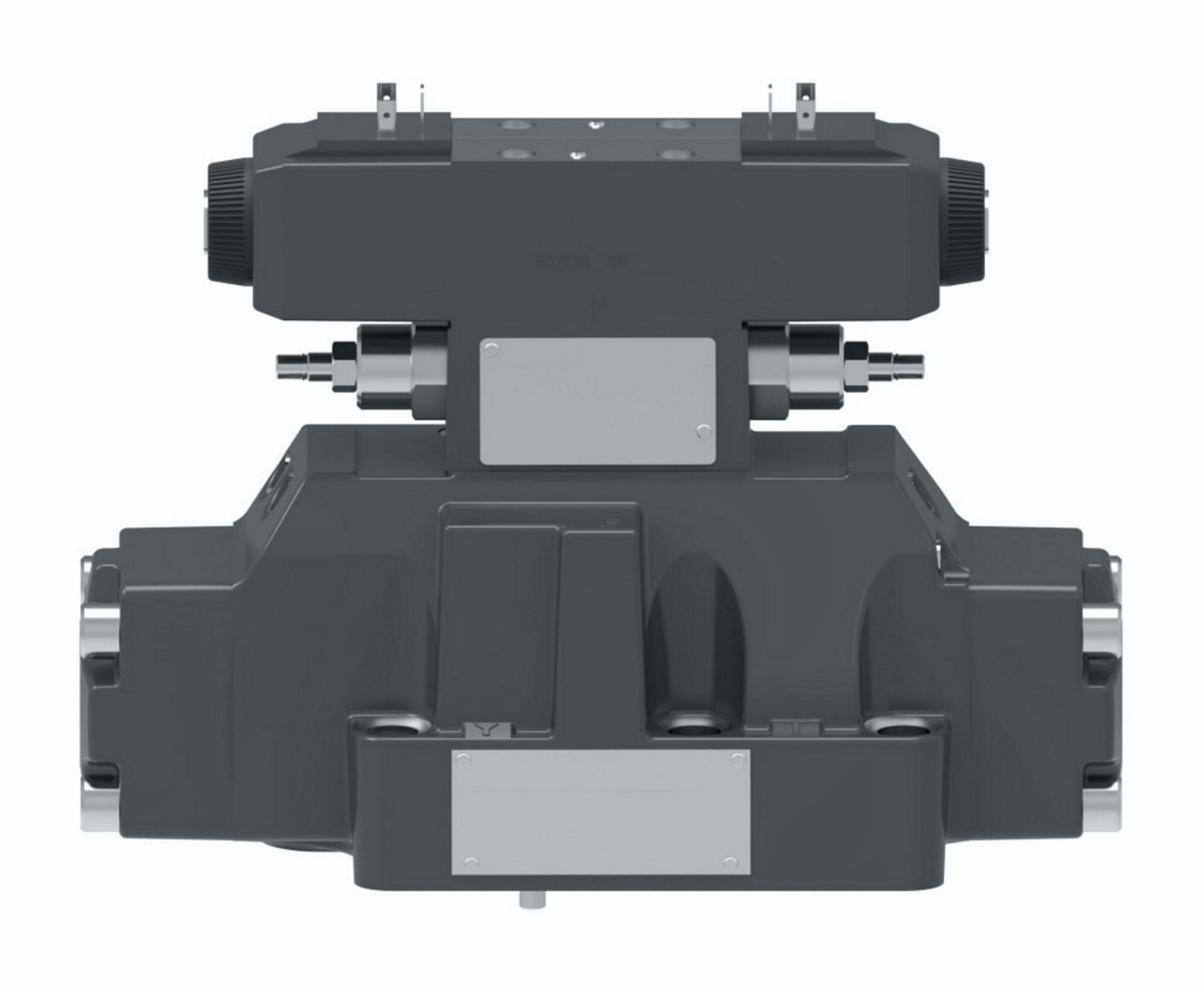

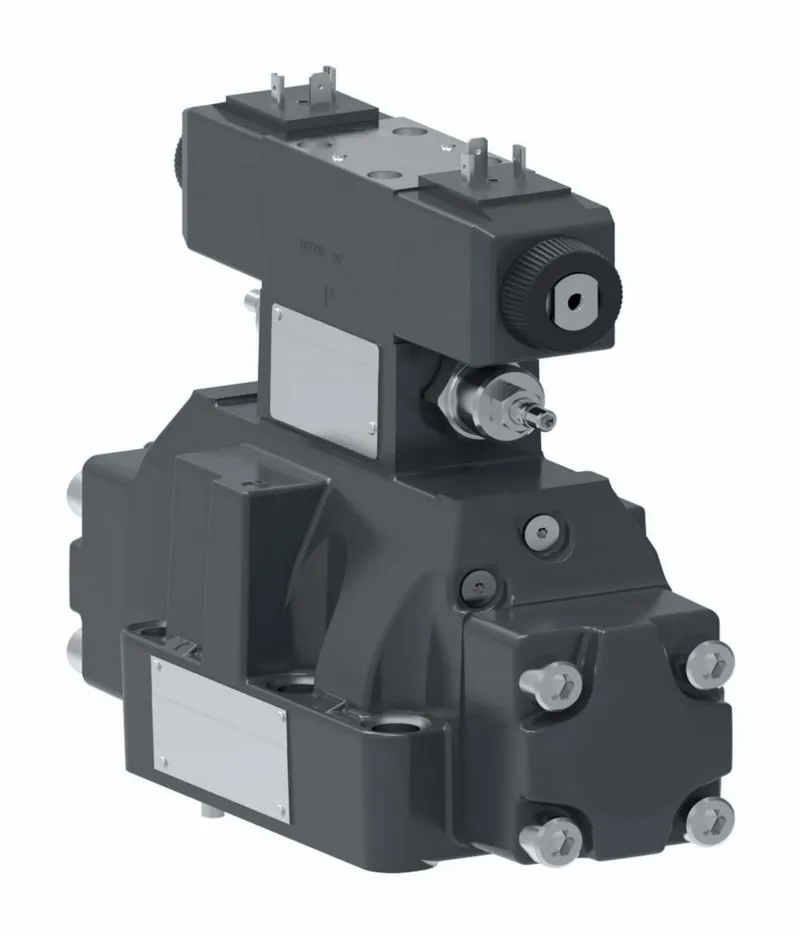

Danfoss 836AN00643A

DG5V-8-H-52C-2-E-T-M-U-H-10, DG5V8H52C2ETMUH10

MPN: 836AN00643A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 836AN00643A?

Danfoss DG5V-8-H-52C-2-E-T-M-U-H-10, DG5V8H52C2ETMUH10, manufacturer part number 836AN00643A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	10 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Ext pilot pressure	External
Flow rate upto GPM	185.0
Flow rate upto LPM	700.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Gauge Port Thread Type	0.4375 - 20 UNF, SAE Thread
Indicator Light	No
Int pilot drain	Internal
Interface	ISO4401-08
Manual override	Plain
Model Code 1	DG5V8H52C2ETMUH10
Performance	High performance
Power Consumption	30 watt
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	9.360
Product height mm	237.744
Product length in	10.450
Product length mm	265.430
Product width in	4.670
Product width mm	118.618
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Control	Pilot choke adjustment
Spool Position Monitor	No
Spool Type	Spool 52
Spring Arrangement	Spring centred
Stage	Two stage
Surge Suppr Damper	No
Tank port rating BAR	350
Tank port rating PSI	5000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

836AN00643A: frequently asked questions

When can 836AN00643A be shipped?

836AN00643A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 836AN00643A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 836AN00643A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 836AN00643A, subject to availability and destination.
