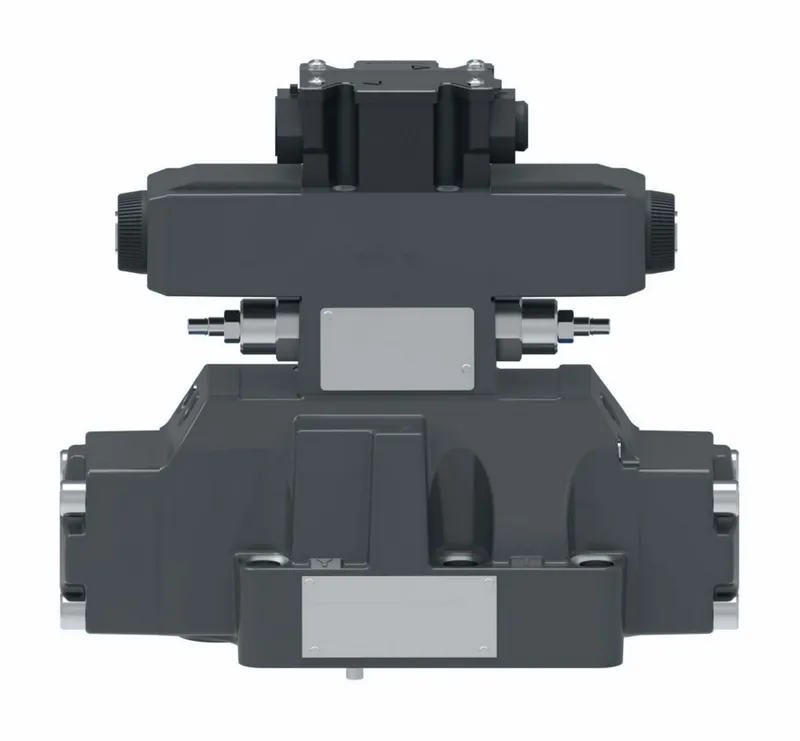

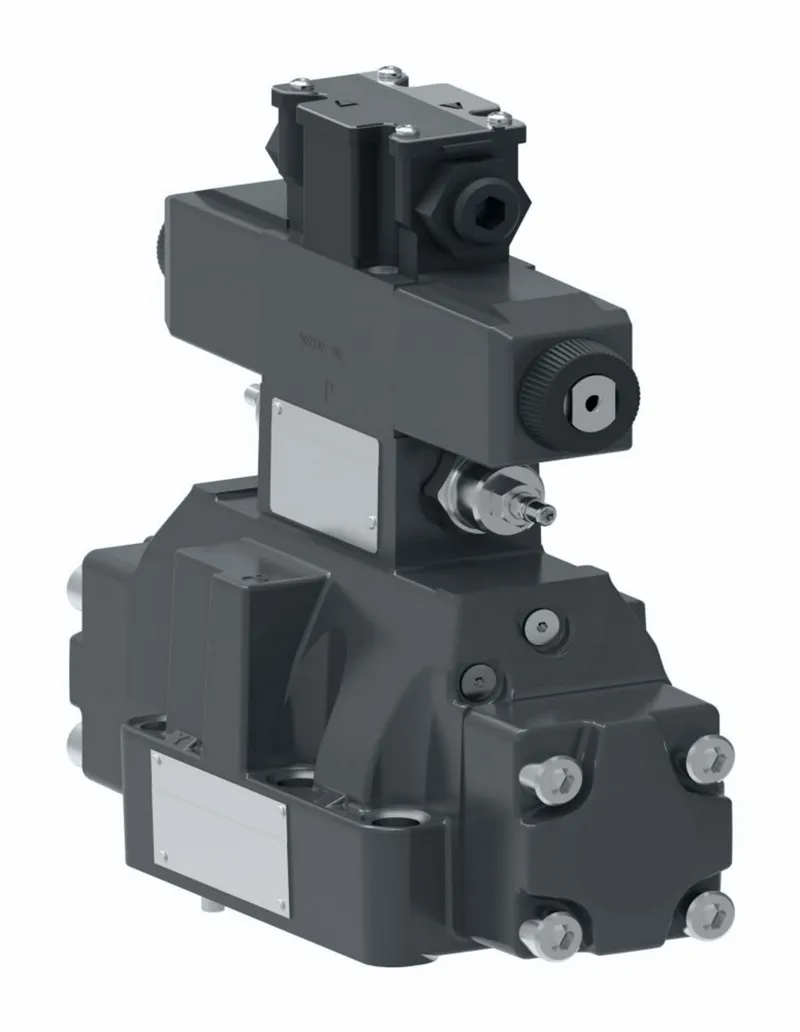

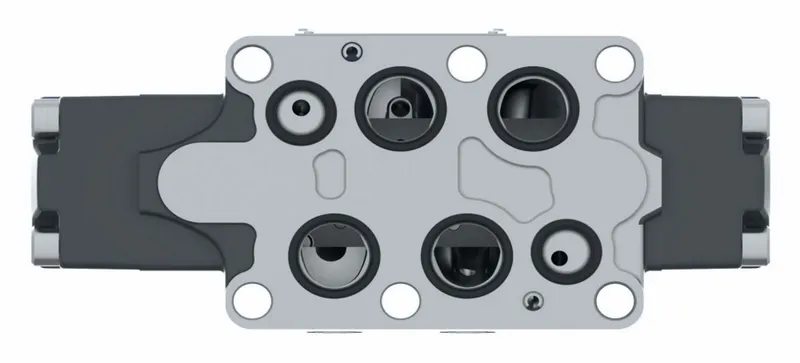

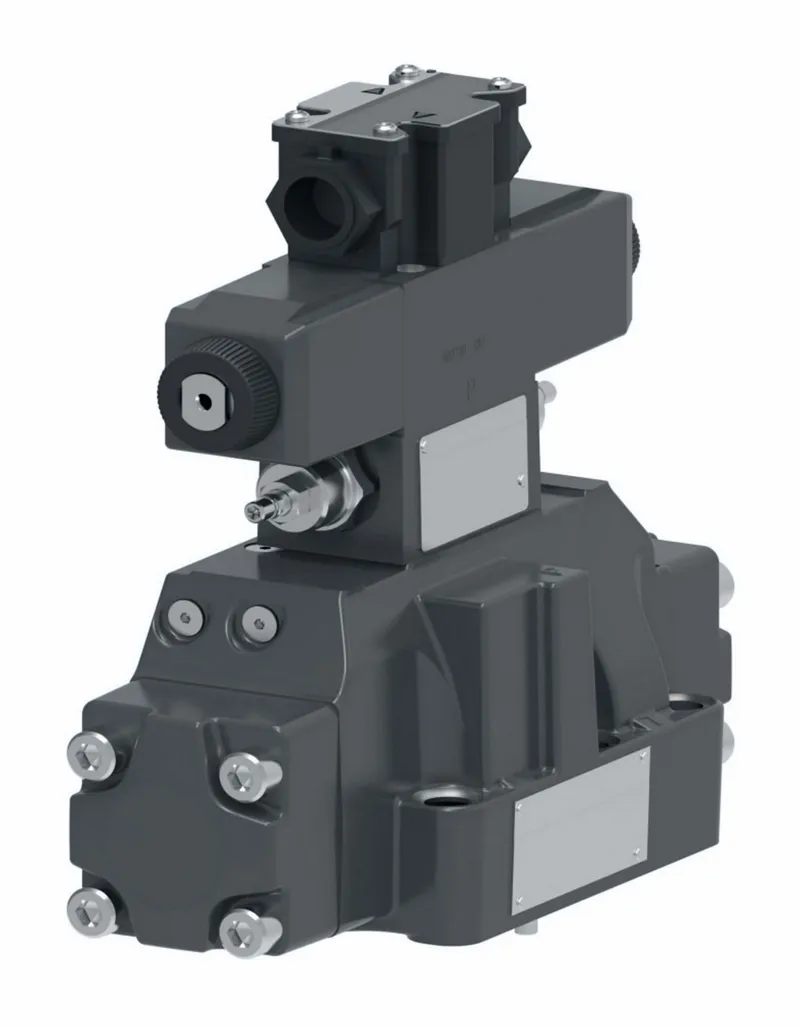

Danfoss 836AN00252A

DG5V-8-H-33C-2-E-T-K-M-F TWL-B-10, DG5V8H33C2ETKMFTWLB10

MPN: 836AN00252A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 836AN00252A?

Danfoss DG5V-8-H-33C-2-E-T-K-M-F TWL-B-10, DG5V8H33C2ETKMFTWLB10, manufacturer part number 836AN00252A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	110 VAC 50Hz/120 VAC 60Hz
Design Series	10 Series
Electrical Connection	Flying lead wired terminalblock & 1/2" NPT thread wiring housing
Ext pilot pressure	External
Flow rate upto GPM	185.0
Flow rate upto LPM	700.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Gauge Port Thread Type	0.4375 - 20 UNF, SAE Thread
Indicator Light	No
Int pilot drain	Internal
Interface	ISO4401-08
Manual override	Plain
Model Code 1	DG5V8H33C2ETKMFTWLB10
Performance	High performance
Power Consumption	49VA 50HZ - 48VA 60HZ
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	9.510
Product height mm	241.554
Product length in	10.450
Product length mm	265.430
Product width in	4.670
Product width mm	118.618
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Control	Pilot choke adjustment
Spool Position Monitor	No
Spool Type	Spool 33
Spring Arrangement	Spring centred
Stage	Two stage
Surge Suppr Damper	No
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	65
Working temp max F	150
Working temp min C	-20
Working temp min F	-4
