Danfoss 836AN00151A

DG5V-8-S-2C-T-M-X5-H-10, DG5V8S2CTMX5H10

MPN: 836AN00151A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

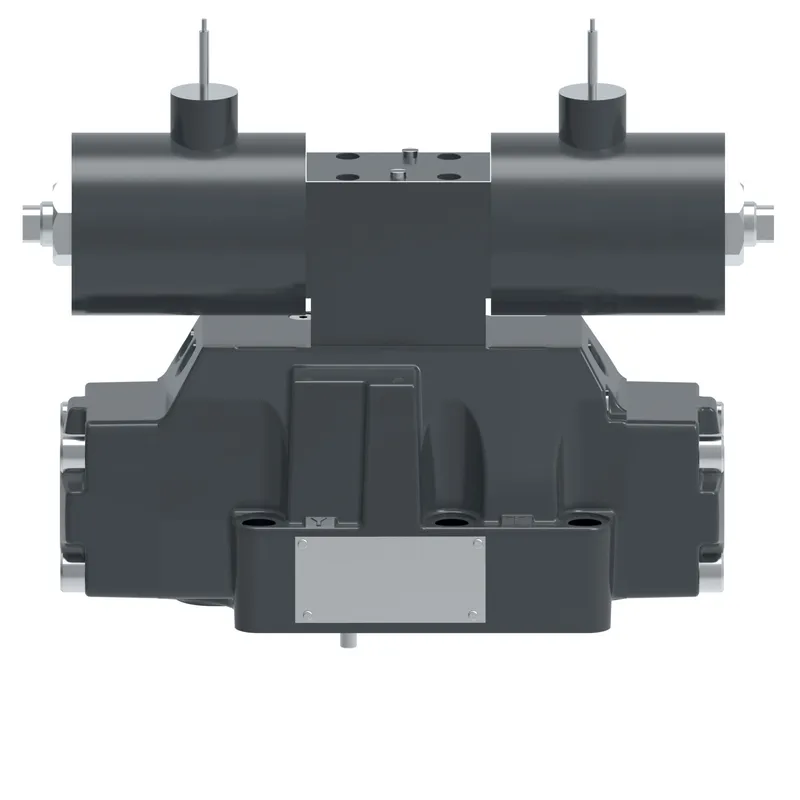

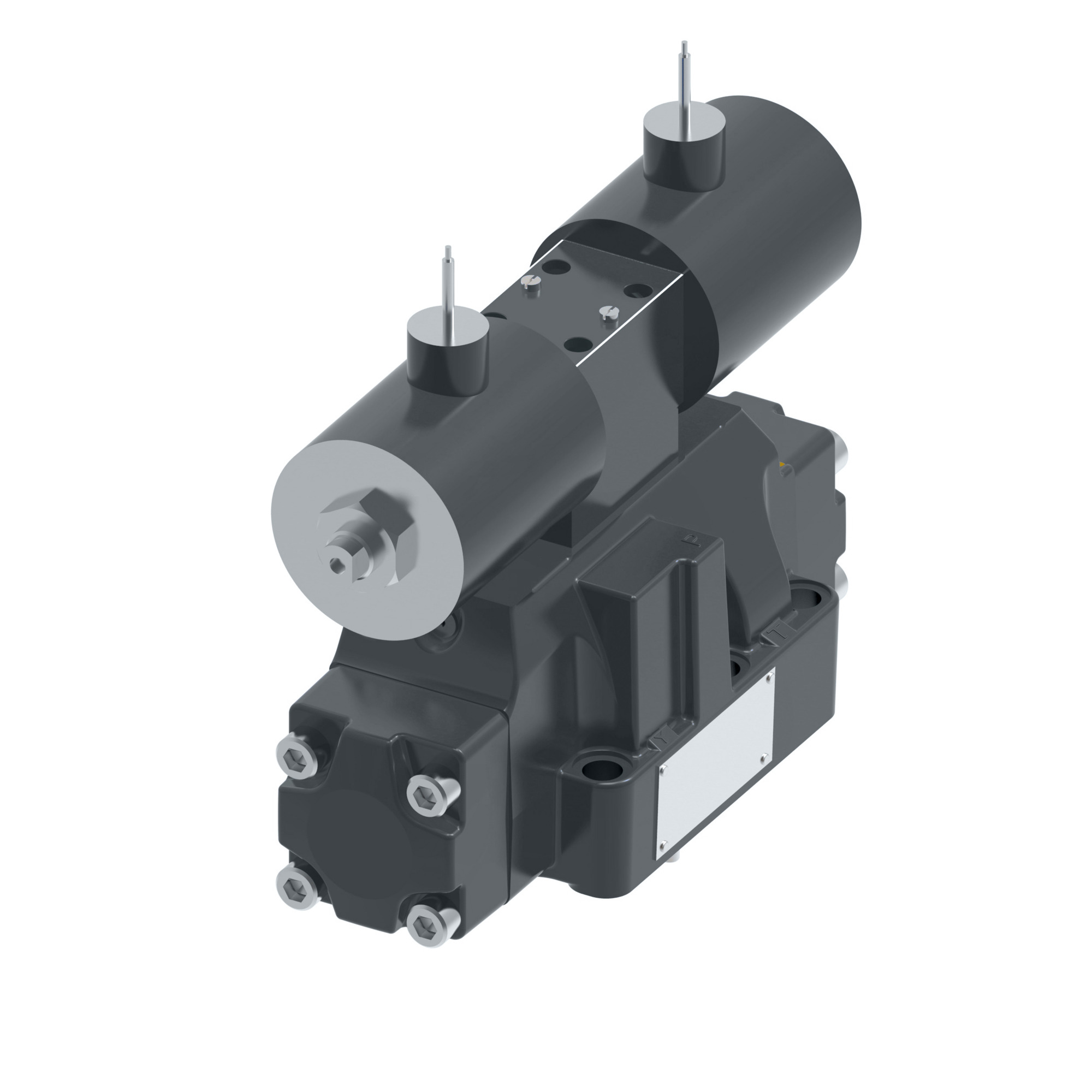

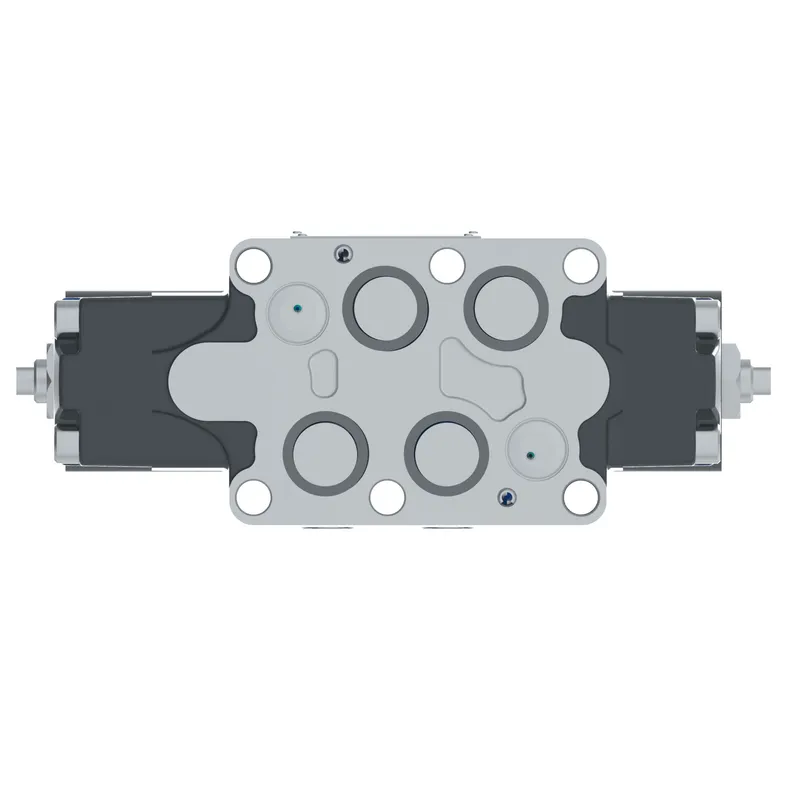

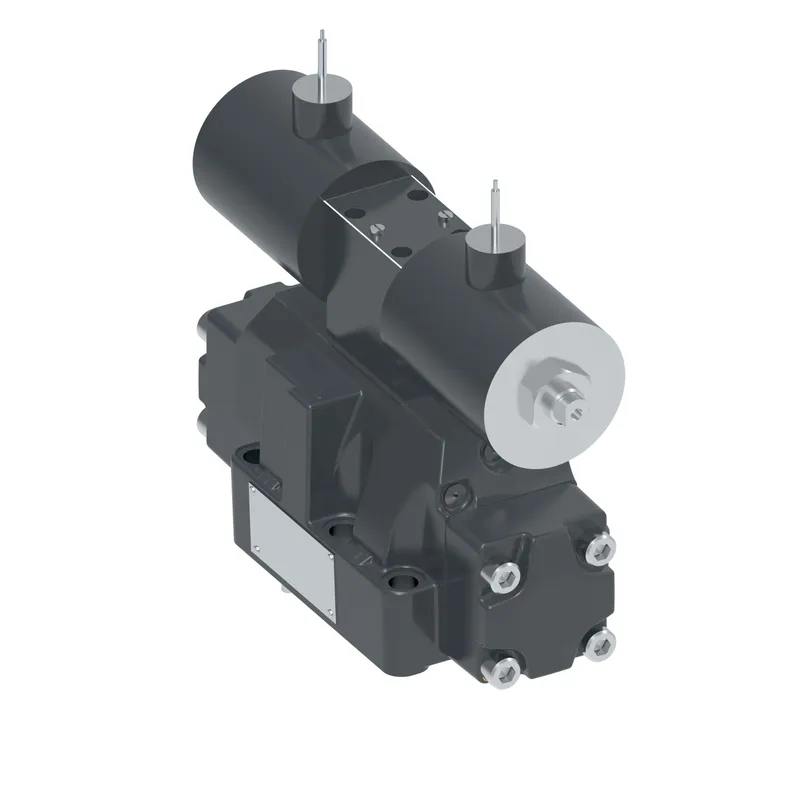

What is the Danfoss 836AN00151A?

Danfoss DG5V-8-S-2C-T-M-X5-H-10, DG5V8S2CTMX5H10, manufacturer part number 836AN00151A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	10 Series
Electrical Connection	Atex ExdIIC2G zone 1&2 CSA/UL
Ext pilot pressure	Internal
Flow rate upto GPM	185.0
Flow rate upto LPM	700.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Gauge Port Thread Type	0.4375 - 20 UNF, SAE Thread
Indicator Light	No
Int pilot drain	Internal
Interface	ISO4401-08
Manual override	Plain
Model Code 1	DG5V8S2CTMX5H10
Performance	Standard performance
Power Consumption	17 watt
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	7.810
Product height mm	198.374
Product length in	10.440
Product length mm	265.176
Product width in	4.670
Product width mm	118.618
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Solenoid Features	ATEX approval
Special features	None
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring centred
Stage	Two stage
Surge Suppr Damper	No
Tank port rating BAR	70
Tank port rating PSI	1000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
