Home / Danfoss (Drives) / Industrial valves / Danfoss 836AN00136A
Danfoss (Drives)

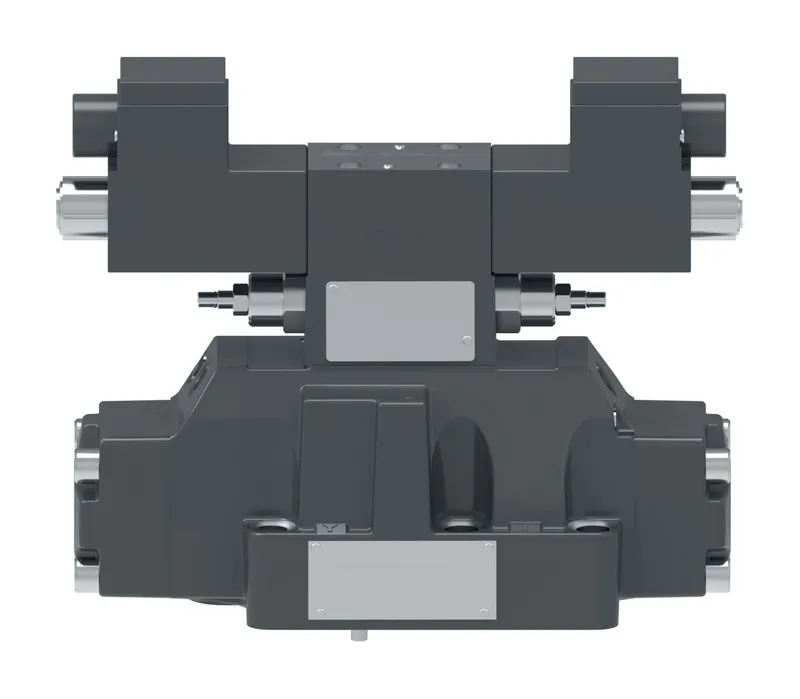

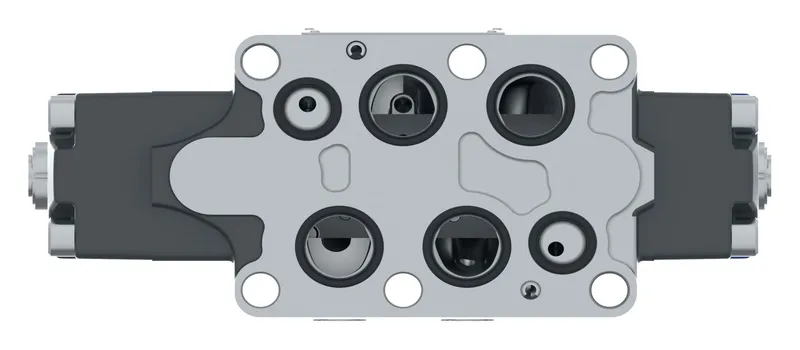

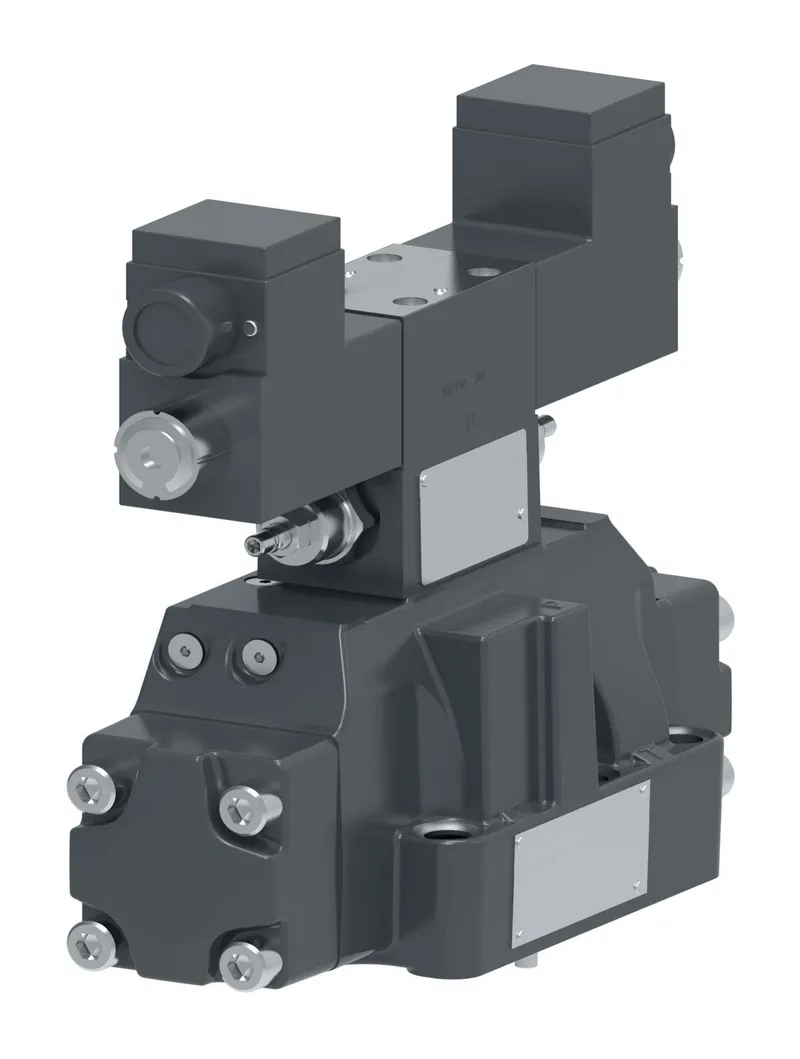

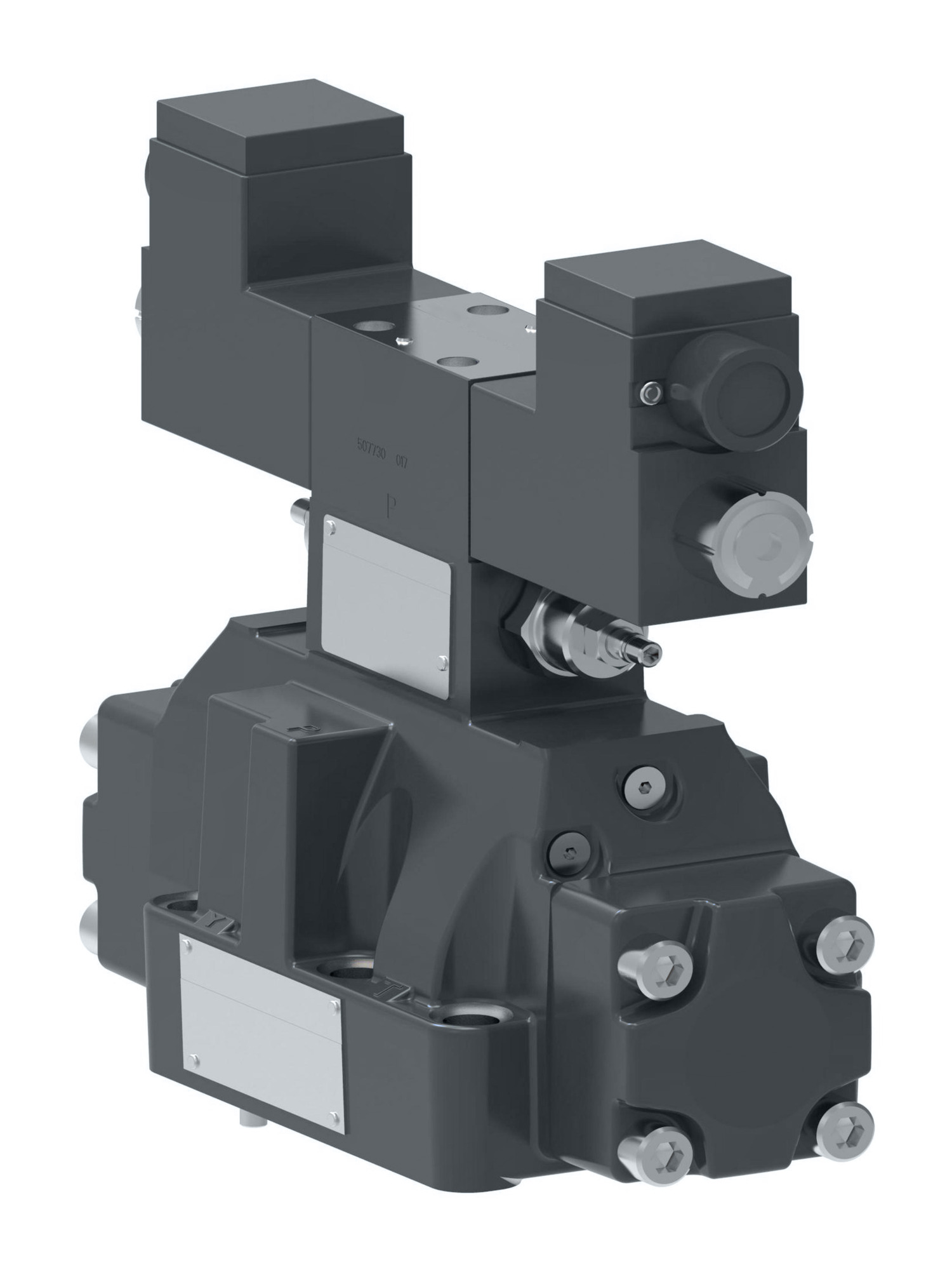

Danfoss 836AN00136A

DG5V-8-S-2C-M-X5-ER-10, DG5V8S2CMX5ER10

MPN
836AN00136A
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 836AN00136A?

Danfoss DG5V-8-S-2C-M-X5-ER-10, DG5V8S2CMX5ER10, manufacturer part number 836AN00136A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Design Series10 Series
Ext pilot pressureInternal
Indicator LightNo
Int pilot drainExternal
InterfaceISO4401-08
Manual overridePlain
Model Code 1DG5V8S2CMX5ER10
PerformanceStandard performance
Product height in10.000
Product height mm254.000
Product length in10.440
Product length mm265.176
Product width in4.670
Product width mm118.618
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Spool TypeSpool 2
Spring ArrangementSpring centred
StageTwo stage
Surge Suppr DamperNo
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
