Home / Danfoss (Drives) / Industrial valves / Danfoss 834AN00072A
Danfoss (Drives)

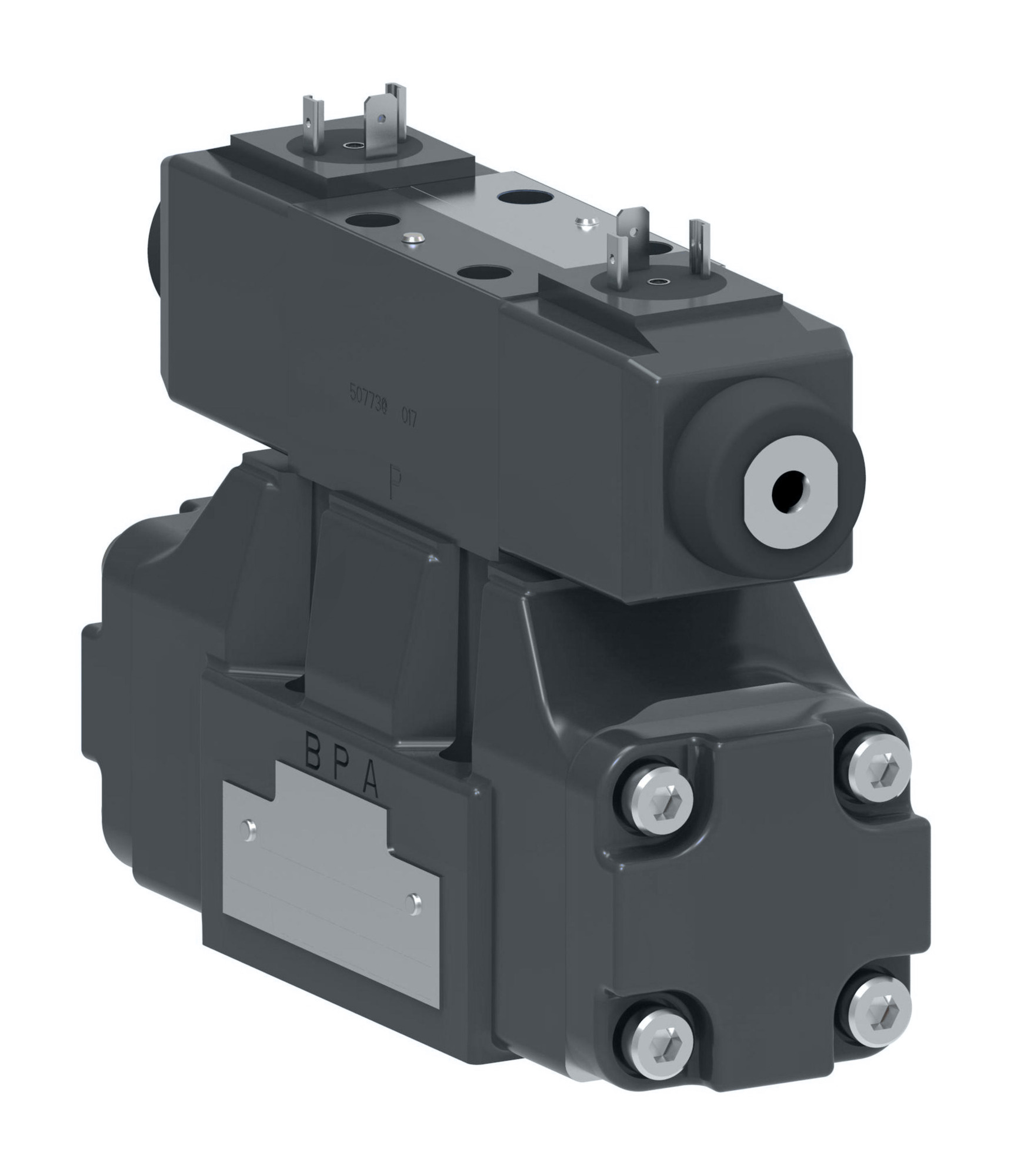

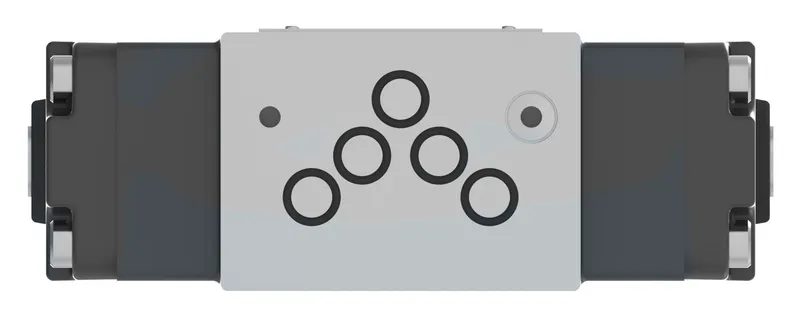

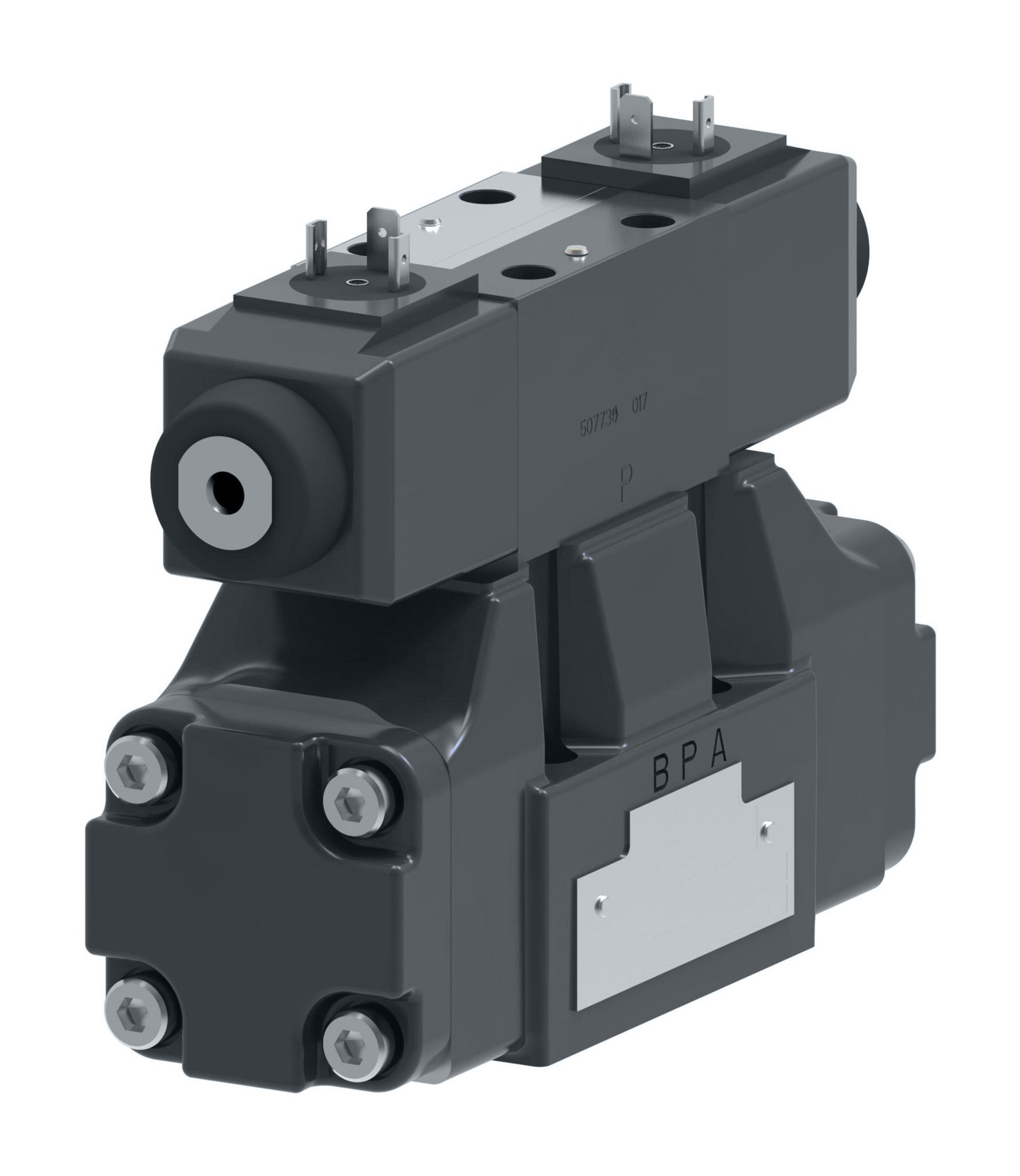

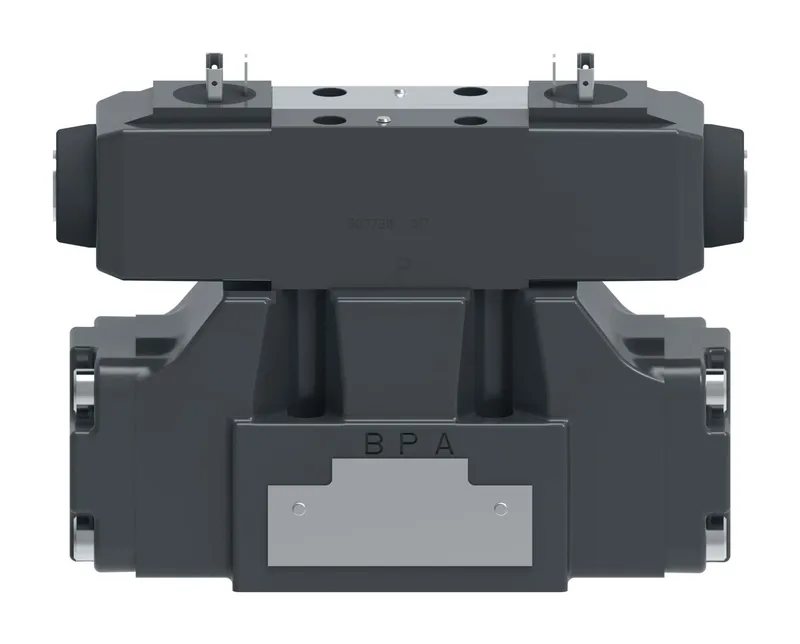

Danfoss 834AN00072A

DG5V-5-6B-M-U-B6-10, DG5V56BMUB610

MPN
834AN00072A
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 834AN00072A?

Danfoss DG5V-5-6B-M-U-B6-10, DG5V56BMUB610, manufacturer part number 834AN00072A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Coil Rating110 VAC 50Hz/120 VAC 60Hz
Design Series10 Series
Electrical ConnectionISO 4400 (Din 43650) connector
Ext pilot pressureInternal
Flow rate upto LPM160.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
Int pilot drainExternal
InterfaceISO4401-05
Manual overridePlain
Model Code 1DG5V56BMUB610
PerformanceHigh performance
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Spool TypeSpool 6
StageTwo stage
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp min C-20
Working temp min F-4

834AN00072A: frequently asked questions

When can 834AN00072A be shipped?

834AN00072A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 834AN00072A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 834AN00072A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 834AN00072A, subject to availability and destination.
