What is the Danfoss 833AN00134A?

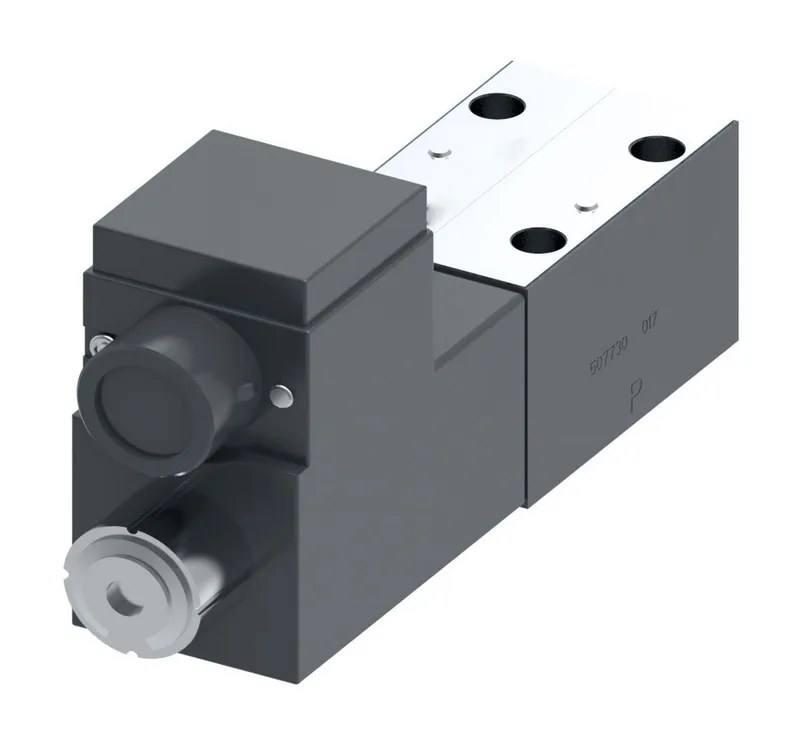

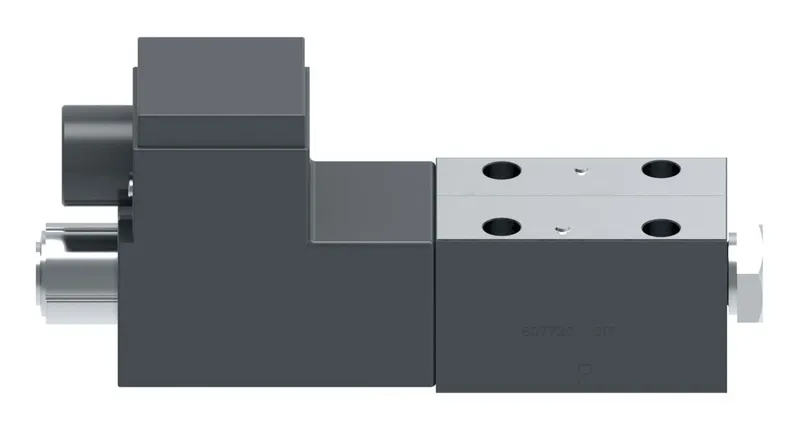

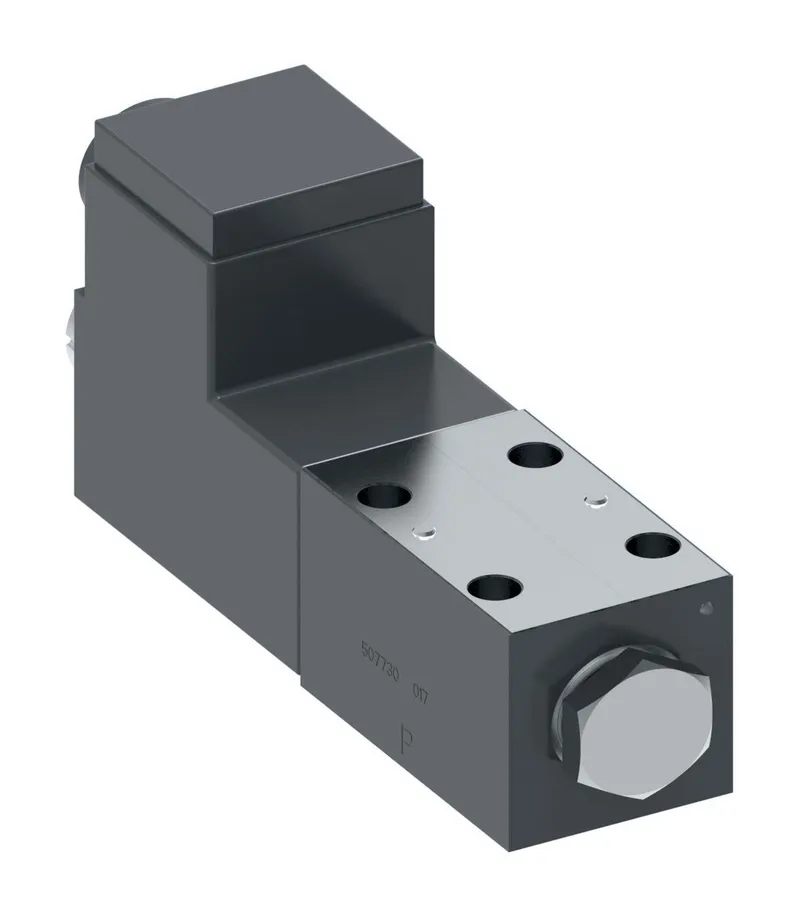

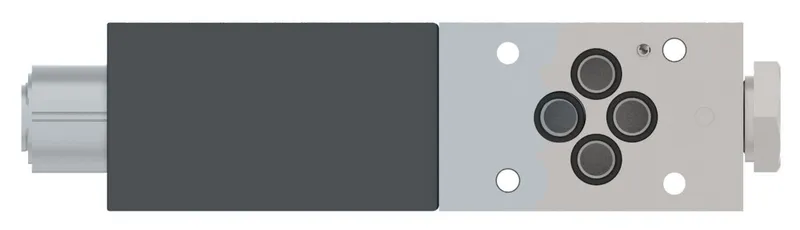

Danfoss DG4V 3S 0A M X5 H4 60, DG4V3S0AMX5H460, manufacturer part number 833AN00134A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	60 Series
Electrical Connection	Atex ExdIIC2G zone 1&2 CSA/UL
Energ Time	60-40 ms
Flow rate upto GPM	10.5
Flow rate upto LPM	40.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-03
Manual override	Plain
Model Code 1	DG4V3S0AMX5H460
Performance	Standard performance
Power Consumption	17 watt
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.440
Product length in	7.360
Product length mm	186.944
Product width in	1.880
Product width mm	47.752
Seal type	WATER GLYCOL
Solenoid Energising ID	Standard as per ANSI B93 9
Solenoid Features	ATEX approval
Special features	None
Spool Position Monitor	No
Spool Type	Spool 0
Spring Arrangement	Spring offset end to end
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	70
Tank port rating PSI	1000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
