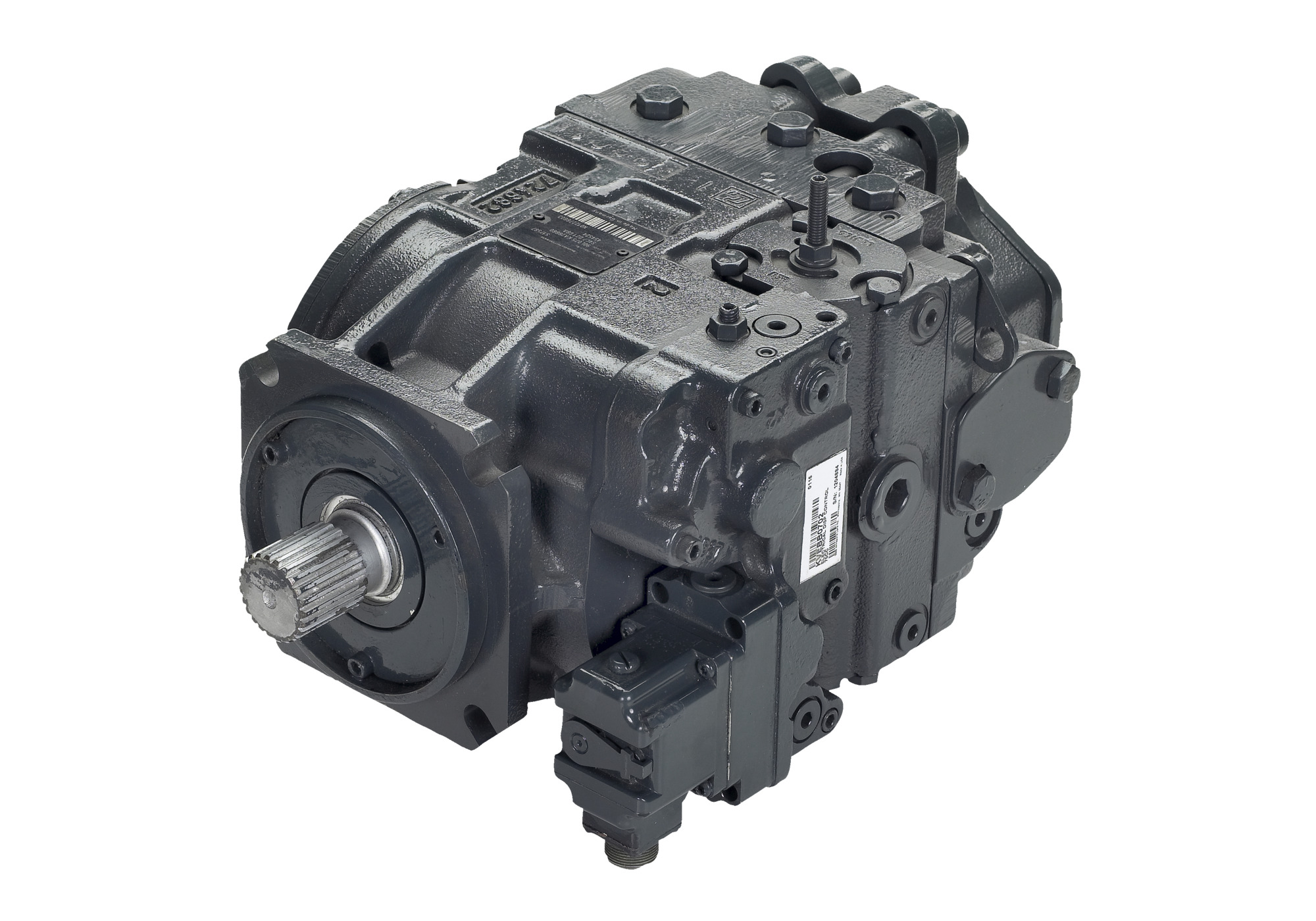

Danfoss 83141925

PUMP-VAR DISPL, CCW 90PV075

MPN: 83141925
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83141925?

Danfoss PUMP-VAR DISPL, CCW 90PV075, manufacturer part number 83141925. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

F: DISPLACEMENT LIMITATION	Limitation Both Sides
G: END CAP PORTS	twin ports
H: CHARGE PUMP	20 cc/rev
J: AUXILIARY MOUNTING PAD	AP:AX MTG A FLG SEAL COVER 9T
K: CHARGE PRS RELIEF	24 bar
L: SHAFT OPTIONS	splined shaft , 14 teeth, pitch = 12 / 24
M: CONTROL	3 positon F-N-R solenoid control ( 24 V , DC ),DIN connector
N: FILTRATION	Remote filtration
P: HIGH PRESSURE REGULATION	Port A & B: fast response PL, up to 450 bar settings
Proposition 65	Cancer and Reproductive Harm
Series 90 Displacement	75 Cubic Centimeters per Revolution
Series 90 Product Line	Series 90
Series 90 Rotation	Counter-clockwise (Left hand) Rotation
Size/Dimensions	0.001
T: CONTROL ORIFICES	FNR (P) 0,81 (TA) 1,0 (TB) 1,0 (A) 1,0 (B) 1,0
W: SPECIAL HARDWARE FEATURES	FBS:N SPR, +1.5ºVP SANY TAG
X: DATA SHEET	F085:DSPLMTR A=53.5 B=47.5
Y: HIGH PRS SETTING PORT A	Port A = 320 Bar / 4640 PSI
Z: HIGH PRS SETTING PORT B	Port B = 320 Bar / 4640 PSI
