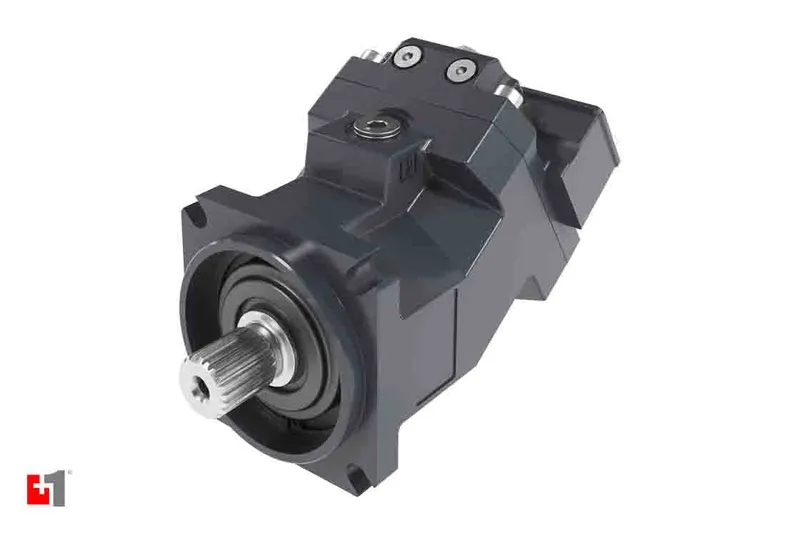

Danfoss 83138963

MOTOR-FIX-DISPL H1F080

MPN
83138963
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83138963?

Danfoss MOTOR-FIX-DISPL H1F080, manufacturer part number 83138963. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A:Product VersionProduct Version A
B:ControlNot applicable
C:PCOR,BPDNot applicable
D:Treshold SettingsNot applicable
E:OrificesNot applicable
F:Endcap Type & PortEndcap with Loop flushing, axial ports ISO 6162-2
Frame SizeDisplacement 080 cc/rev
G:Flange & HousingSAE-Flange motor housing (ISO 3019 / 1), With Speed sensor port
H:Shaft & Speed Ring14 teeth 12/24 Pitch ANSI 92.1 1970 class 5, with speed ring
J:SensorSpeed sensor ready (plugged)
K:Loop Flushing Shutle SystemLoop flushing, 6.5 bar shuttle shift pressure
L:Loop Flushing Relief Valve5 l/min, non adjustable, 16 bar cracking pressure
M:Special Harware FeatureStandard Hardware Fixed
N:DisplacementNot applicable
P:HPRV Setting APort side A, Without High Pressure Relief valve
Product typeMOTOR,FIX,BI-DIRECTIONAL
Proposition 65Cancer and Reproductive Harm
Q:HPRV Setting BPort side B, Without High Pressure Relief valve
R:Paint & NametagDanfoss nametag
SeriesH1-Series
Z:Port ConfigurationPort Configuration: METRIC according to ISO 6149-1

83138963: frequently asked questions

When can 83138963 be shipped?

83138963 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83138963 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83138963 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83138963, subject to availability and destination.
