Danfoss 83138696

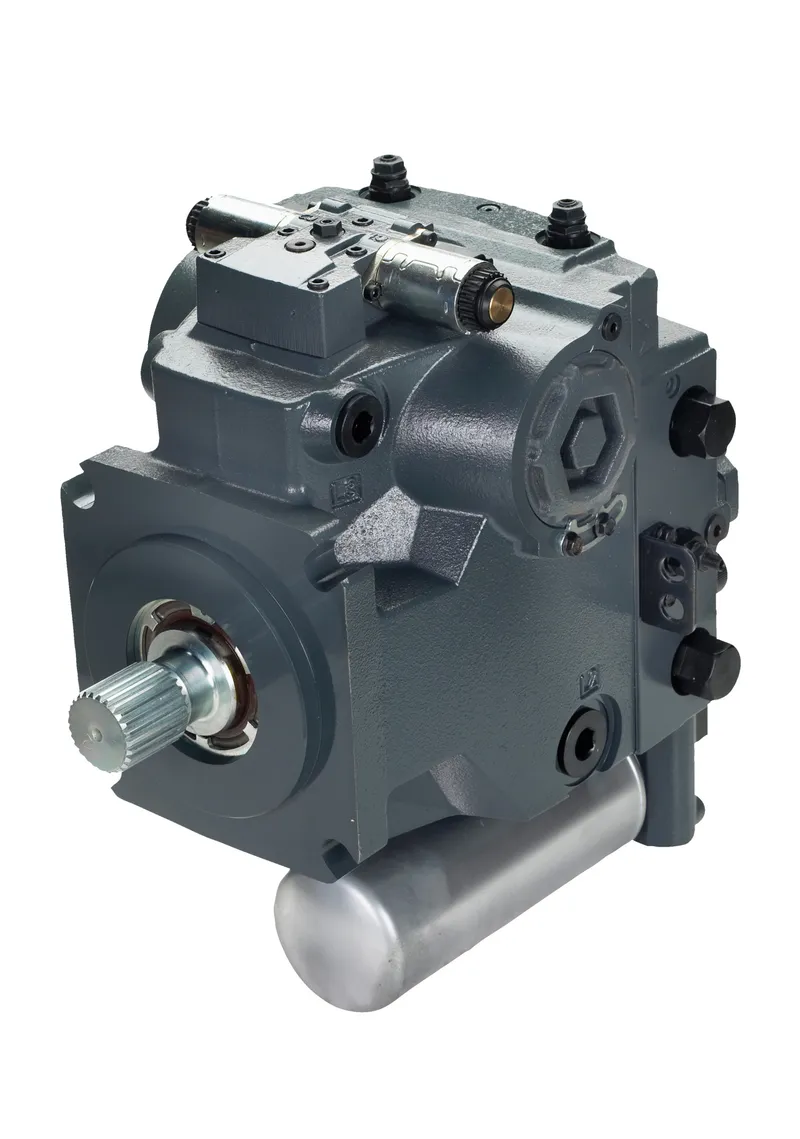

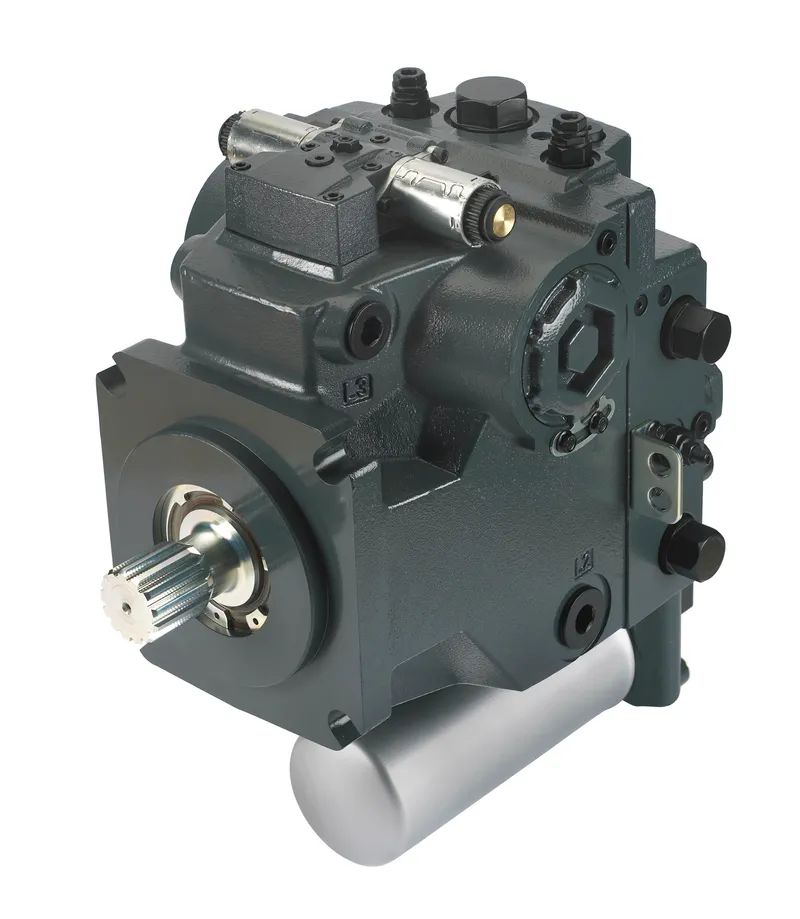

PUMP-VAR-DISPL CW H1PV180

MPN
83138696
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83138696?

Danfoss PUMP-VAR-DISPL CW H1PV180, manufacturer part number 83138696. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

SeriesH1 - Series
Product typeVariable pump
Frame Size180cc/rev max/variable displacement
RotationRight hand - clockwise
Product versionProduct version D
Configuration of portsANSI O-ring boss port configuration
ControlElectrical displacement control, 12V Deutsch DT04-2P connector, manual override
OrificesP = none, A+B = none, TA+TB = none
Displacement limitationNo limiters electrical displacement control/forward neutral reverse control
Endcap typeTwin port, code 62 metric 4 bolt flange, integral pressure filter
Mounting flangeSAE D 4 bolt flange
Input shaft13 tooth, 8/16
Auxiliary pad13 tooth, B pad
Protection type side APressure limiter, high pressure relief valve
High pressure setting side A400 bar
Protection type side BHigh pressure relief valve + pressure limiter
High pressure setting side B400 bar
Charge pump34cc/rev
FiltrationIntegral full flow with filter bypass sensor
Charge relief pressure setting26 bar charge pressure relief valve
Special hardware featuresElectrical displacement control/forward neutral reverse control/ manual displacement control valve plate, without handle
Paint and nametagBlack paint, Danfoss tag A
SettingsDefault, no special settings
Proposition 65Cancer and Reproductive Harm

83138696: frequently asked questions

When can 83138696 be shipped?

83138696 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83138696 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83138696 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83138696, subject to availability and destination.
