Danfoss 83138602

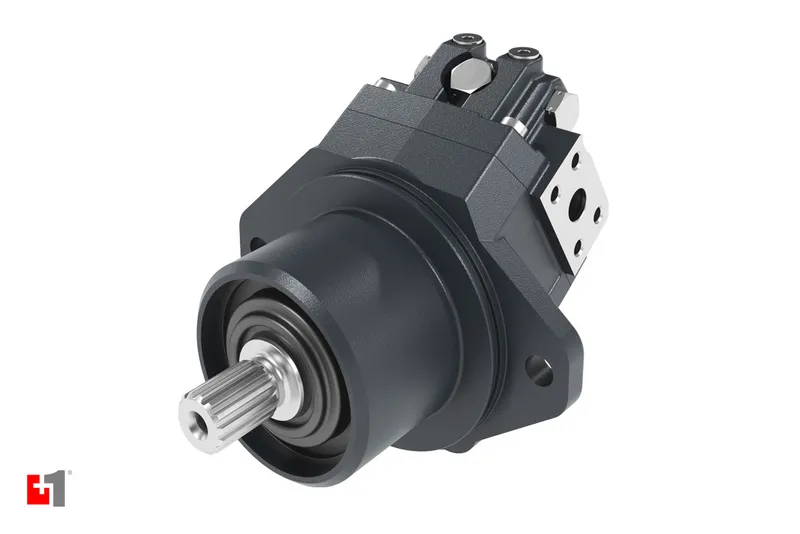

MOTOR-FIX-DISPL H1F060

MPN: 83138602
Category: Fixed displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83138602?

Danfoss MOTOR-FIX-DISPL H1F060, manufacturer part number 83138602. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A:Product Version	Product Version A
B:Control	Not applicable
C:PCOR,BPD	Not applicable
D:Treshold Settings	Not applicable
E:Orifices	Not applicable
F:Endcap Type & Port	Endcap without o Loop flushing, side ports ISO 6162-2
Frame Size	Displacement 060 cc/rev
G:Flange & Housing	DIN-Flange motor housing (ISO 3019 / 2), No speed sensor port
H:Shaft & Speed Ring	14 teeth 12/24 Pitch ANSI 92.1 1970 class 5, No speed ring
J:Sensor	No Speed sensor
K:Loop Flushing Shutle System	No loop flushing function, without parts
L:Loop Flushing Relief Valve	No loop flushing function
M:Special Harware Feature	Standard Hardware Fixed
N:Displacement	Not applicable
P:HPRV Setting A	Port side A, Without High Pressure Relief valve
Product type	MOTOR,FIX,BI-DIRECTIONAL
Proposition 65	Cancer and Reproductive Harm
Q:HPRV Setting B	Port side B, Without High Pressure Relief valve
R:Paint & Nametag	Danfoss nametag
Series	H1-Series
Z:Port Configuration	Port Configuration: METRIC according to ISO 6149-1

83138602: frequently asked questions

When can 83138602 be shipped?

83138602 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83138602 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83138602 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83138602, subject to availability and destination.
