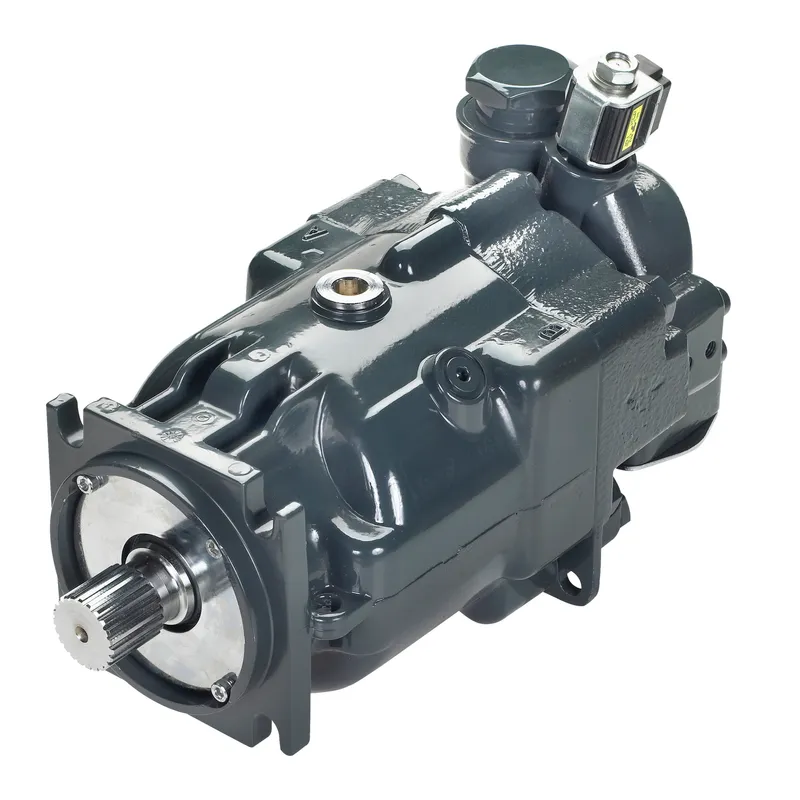

Danfoss 83138478

MOTOR-FIX DISPL 90MF100

MPN
83138478
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83138478?

Danfoss MOTOR-FIX DISPL 90MF100, manufacturer part number 83138478. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

F: NOT USEDNOT APPLICABLE
G: END CAP1 inch Twin Ports, 6000 PSI
H: LOOP FLUSHING TYPEWith Loop Flushing Valve
J: NOT USEDNot Applicable
K: CHARGE PRS RLF AMSLoop Flushing Flow 11,5 l/min at 25 bar, Cracking Pressure 16 bar, Orifice 2x1,5 mm
L: SHAFTStraight Key Shaft, Diameter = 44,450 mm ( 1,750 inch )
M: NOT USEDNOT APPLICABLE
N: NOT USEDNOT APPLICABLE
P: PRESSURE REGULATIONNo High Pressure Regulation
Proposition 65Cancer and Reproductive Harm
Series 90 Displacement100 Cubic Centimeters per Revolution
Series 90 Flange Style MFFixed Motor, SAE Flange
Series 90 Product LineSeries 90
Size/Dimensions0.001
T: NOT USEDNOT APPLICABLE
W: SPECIAL HARDWARE FEATURESpeed Sensor, Turck Connector, 4.5-8.5V, Direction Sensing, KPPx136
Y: HIGH PRS SETTING PORT APressure Settings Not Adjusted
Z: HIGH PRS SETTING PORT BPressure Settings Not Adjusted

83138478: frequently asked questions

When can 83138478 be shipped?

83138478 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83138478 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83138478 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83138478, subject to availability and destination.
