Home / Danfoss (Drives) / Series 45 open-circuit axial piston pumps / Danfoss 83138386

Danfoss (Drives)

Danfoss 83138386

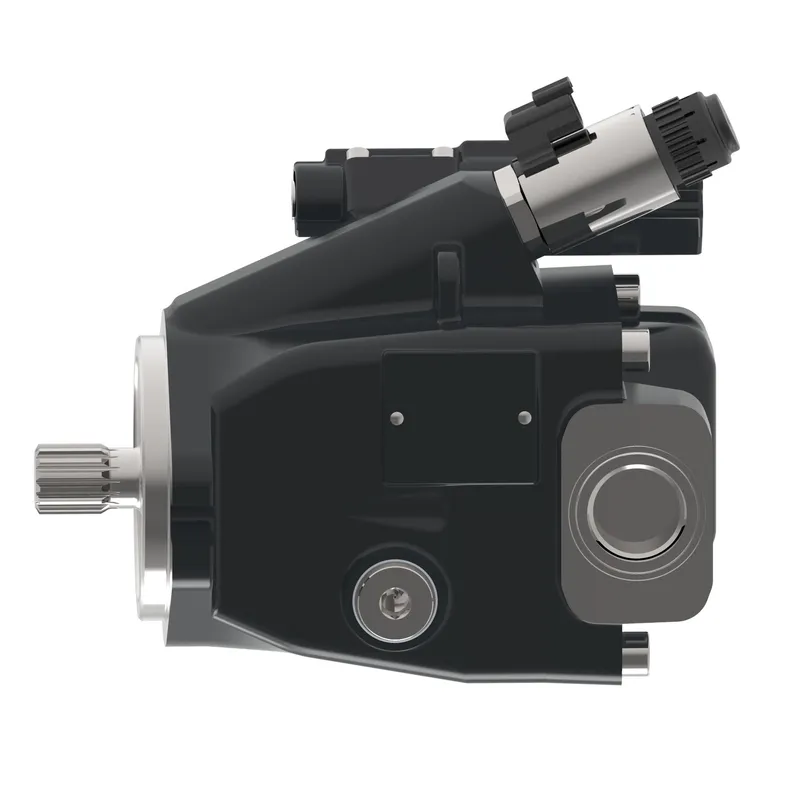

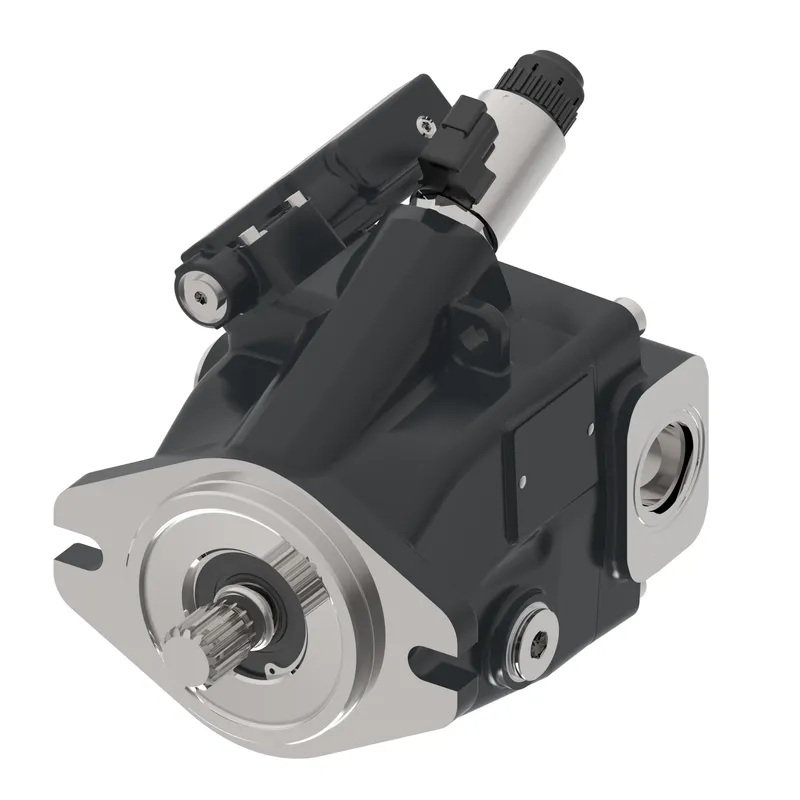

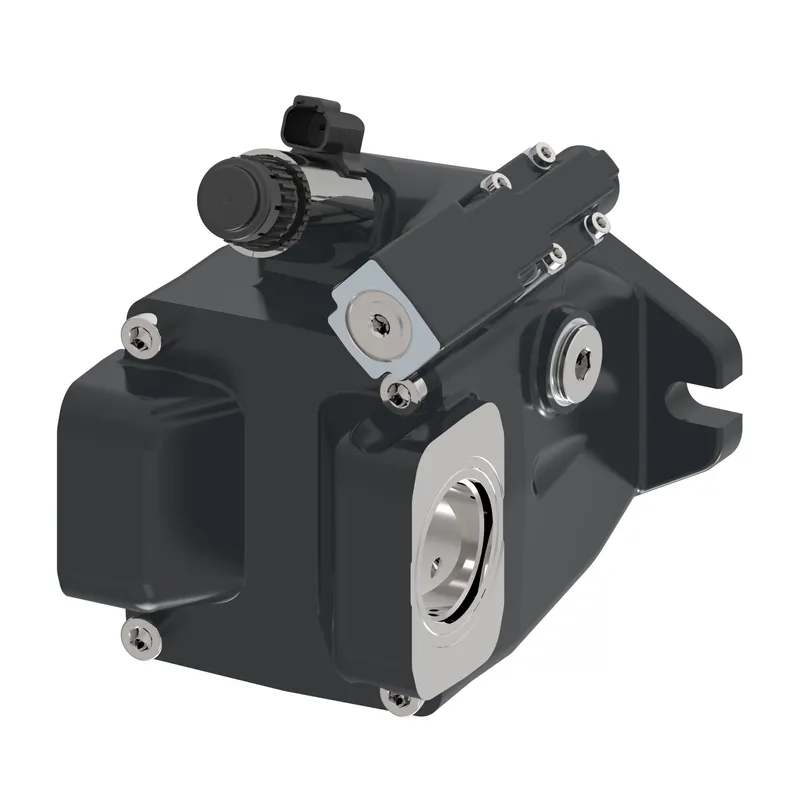

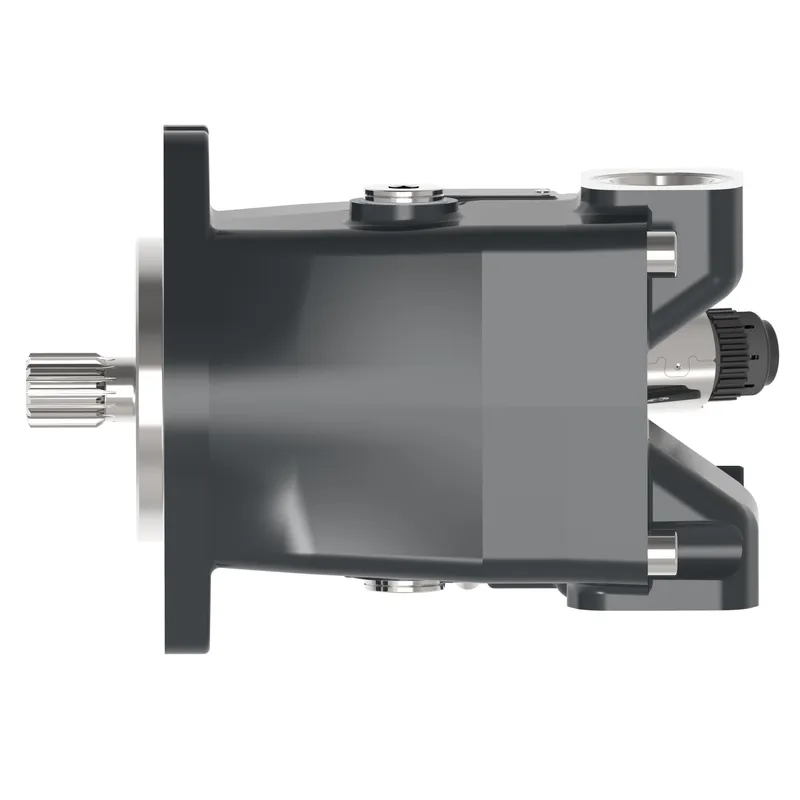

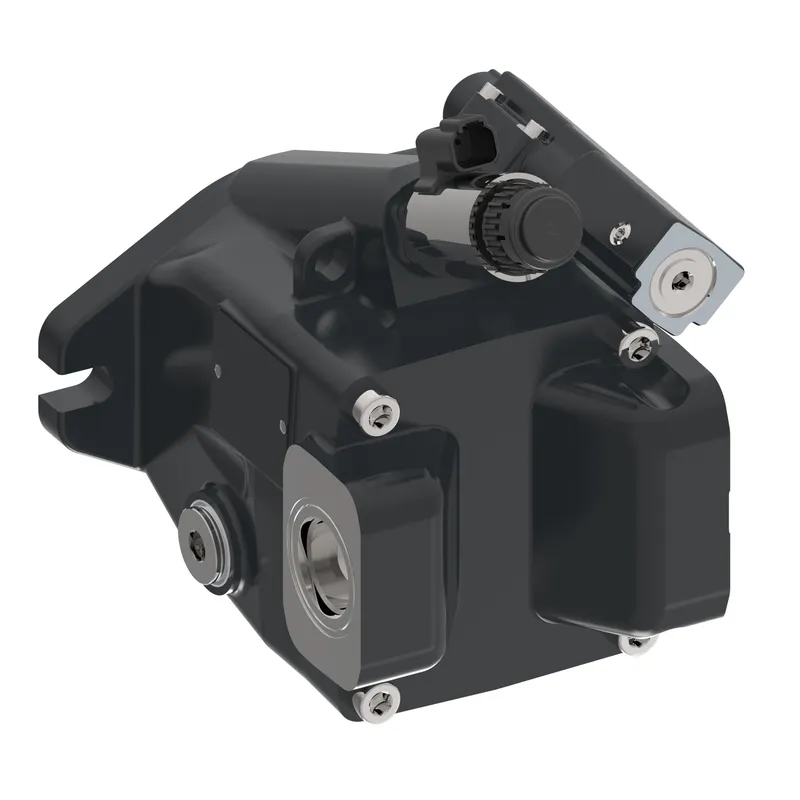

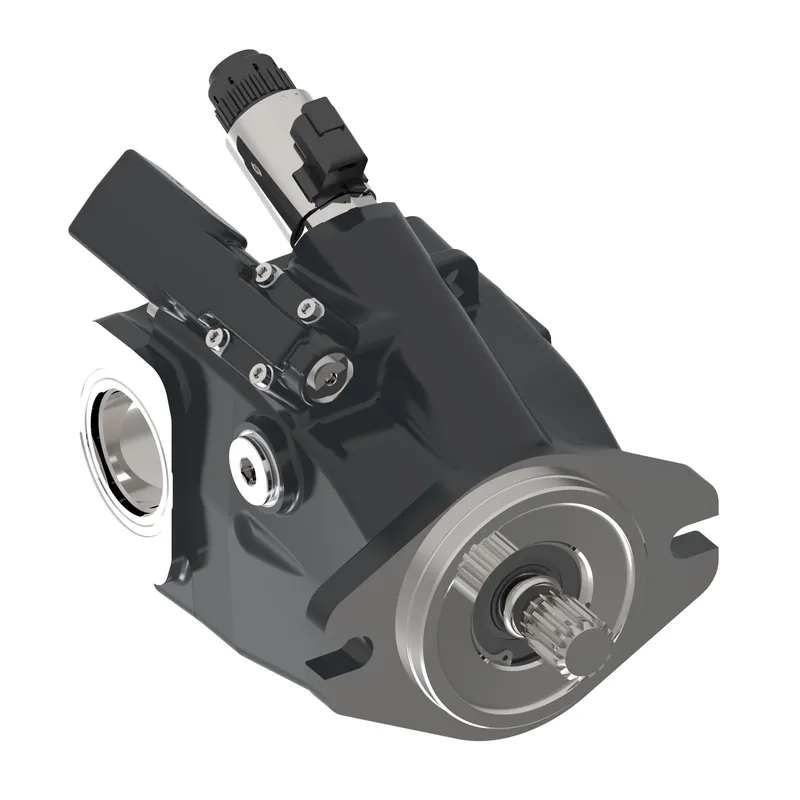

PUMP-VAR DISPL, CW S45PVOC_K2

MPN: 83138386
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83138386?

Danfoss PUMP-VAR DISPL, CW S45PVOC_K2, manufacturer part number 83138386. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	K2 frame axial piston open circuit pump
Rotation	Clockwise rotation
Displacement and load life	45 cc/rev - 260 bar maximum continuous rated pressure
Control type	Electric fan drive control, 24VDC, proportional pressure decreasing functionality (NC), Deutsch connector left [PC pressure range:100-210 bar]
Pressure compensator setting	210 bar [3045 psi]
Load sensing setting	Not applicable
Torque limiter setting	Not applicable
Choke orifice	0.8 mm diameter, fan drive control, servo choke orifice
Gain orifice	1.2 mm diameter orifice, fan drive control, gain orifice
Shaft, auxiliary flange, and endcap	15 tooth 16/32 pitch shaft, SAE-B 13 tooth auxiliary, M12, radial, inlet: o-ring boss port (1.875 inch thread), outlet: o-ring bossport (1.3125 inch thread)
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-B 2-bolt flange, SAE O-ring ports
Displacement limiter	Adjustable displacement limiter set to max flow
Special hardware	Special hardware - none
Special features	Black paint, Danfoss tag
Proposition 65	Cancer and Reproductive Harm

83138386: frequently asked questions

When can 83138386 be shipped?

83138386 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83138386 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83138386 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83138386, subject to availability and destination.
