Home / Danfoss (Drives) / Series 45 open-circuit axial piston pumps / Danfoss 83136643

Danfoss 83136643

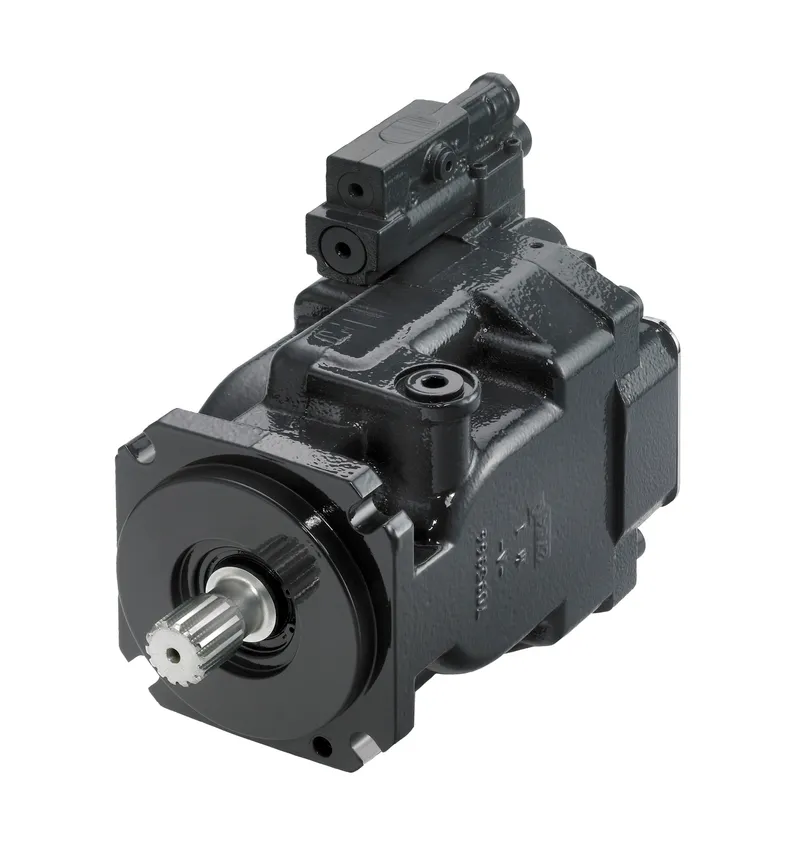

PUMP-VAR DISPL, CCW S45PVOC_F

MPN: 83136643
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83136643?

Danfoss PUMP-VAR DISPL, CCW S45PVOC_F, manufacturer part number 83136643. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	F frame axial piston open circuit pump
Rotation	Counter-clockwise rotation
Displacement and load life	74 cc/rev - 310 bar maximum continuous rated pressure
Control type	Pressure compensated / load sensing [PC pressure range: 100-280 bar, LS pressure range: 10-40 bar]
Pressure compensator setting	270 bar [3915 psi]
Load sensing setting	22 bar [319 psi]
Torque limiter setting	Not applicable
Choke orifice	0.8 mm diameter orifice - servo control orifice
Gain orifice	Standard orifice
Shaft, auxiliary flange, and endcap	14 tooth 12/24 pitch shaft, SAE-C 14 tooth auxiliary, radial, inlet: 4-bolt split flange (2 inch port, 0.5 inch threads), outlet:4-bolt split flange (1 inch port, 0.375 inch threads)
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-C 4-bolt flange, SAE O-ring ports
Displacement limiter	None
Special hardware	Special hardware - none
Special features	SNY=PNT-BLACK,TG-SANY
Proposition 65	Cancer and Reproductive Harm
Size/Dimensions	0.001
