Danfoss 83132573

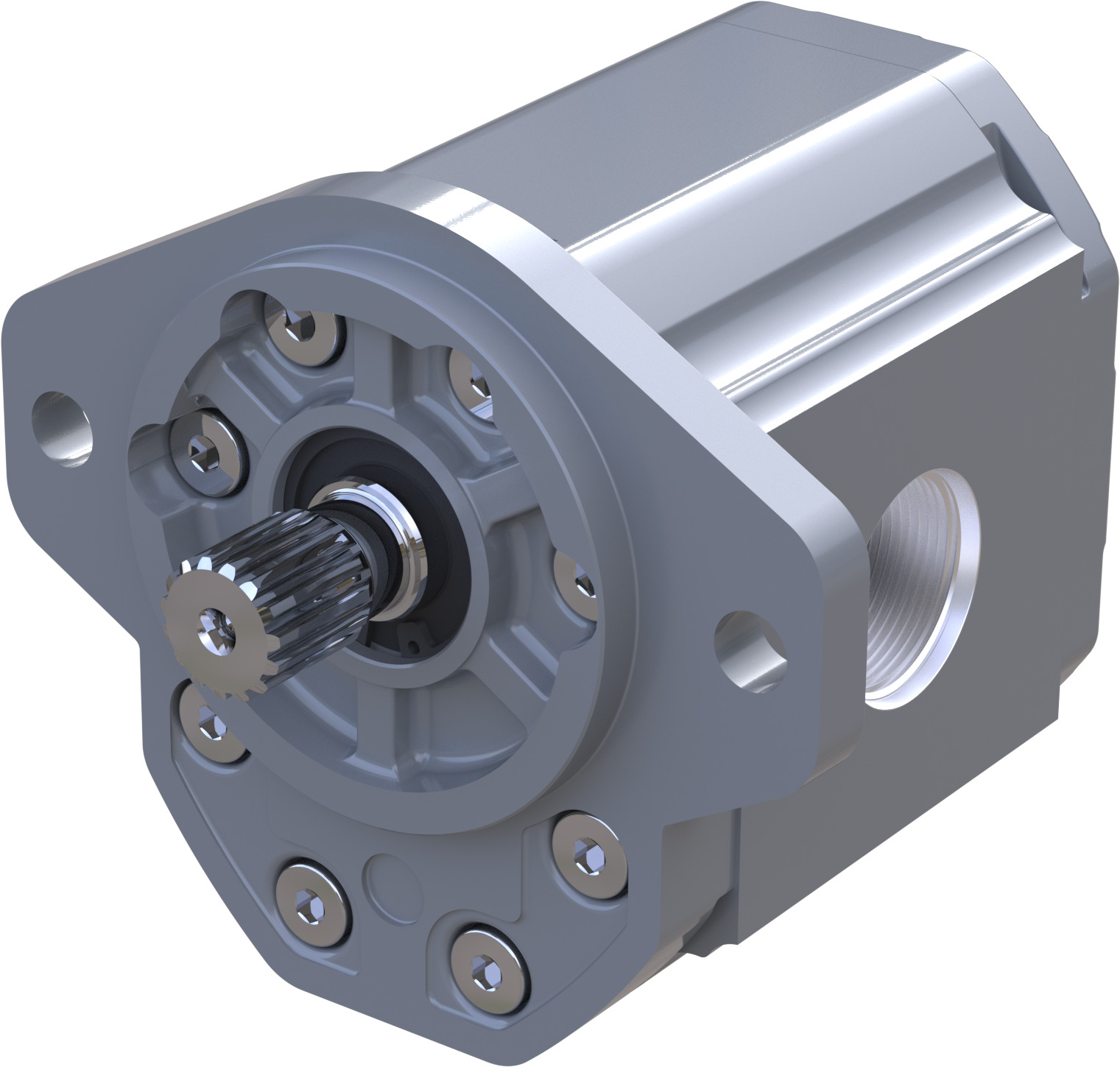

GEAR PUMP GR3 FIXED DISPL

MPN: 83132573
Category: GearMe single stage

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83132573?

Danfoss GEAR PUMP GR3 FIXED DISPL, manufacturer part number 83132573. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

B: Displacement	Displacement 44 cc
C: Rotation	Product with counter-clockwise rotation
D: Project version	Standard Version of Project
E: Mounting flange	Flange SAE b with pilot D.101,6 and 2 holes for bolts
F: Drive gear	Spl.SAE J498-15T-16/32+spline
G: Rear cover	Not assigned (with intermediate flange instead cover)
H: Inlet size	31x30,18x58,72x7/16-14UNC
I: Outlet size	25x26,19x52,37x3/8-16UNC
J: Ports position	Standard from catalogue
K: Seals	Standard seal
L: Screws	Screws standard
M: Valve setting	without setting
N: Mark type	Standard Marking
O-Ring, Inside Diameter	Slash
O: Mark position	Position Marking standard
Proposition 65	Cancer and Reproductive Harm
Single Stage Family	Gr3 Main stage
Slash separator	Slash
