Danfoss 83132396

PUMP-VAR DISPL, CCW S45PVOC_J

MPN: 83132396
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83132396?

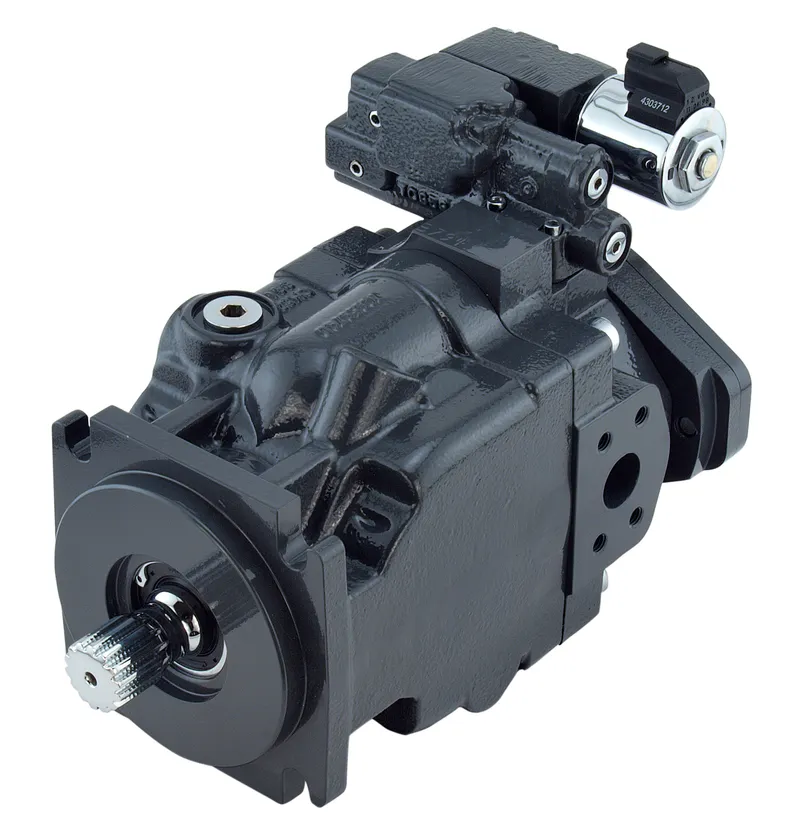

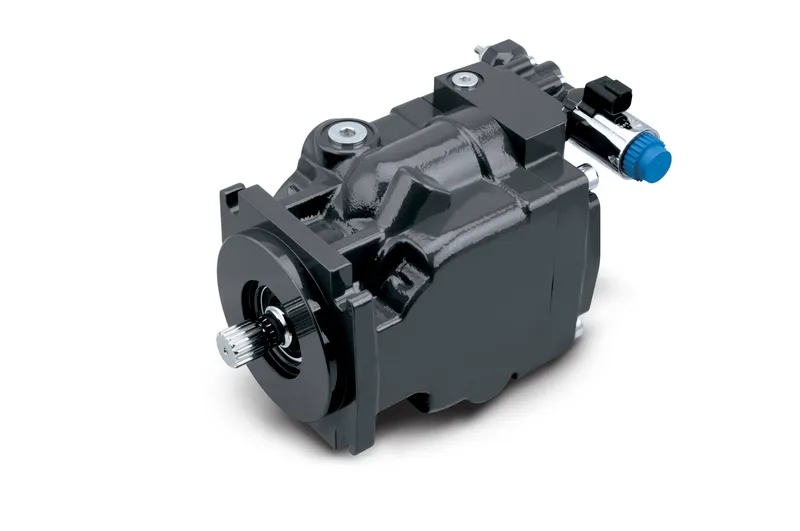

Danfoss PUMP-VAR DISPL, CCW S45PVOC_J, manufacturer part number 83132396. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	J frame axial piston open circuit pump
Rotation	Counter-clockwise rotation
Displacement and load life	60 cc/rev - 310 bar maximum continuous rated pressure
Control type	Pressure compensated / load sense capability, electric proportional-solenoid right, 24VDC normally-open Deutsch [PC pressure range:100-280 bar, LS pressure range: 10-40 bar]
Pressure compensator setting	230 bar [3335 psi]
Load sensing setting	20 bar [290 psi]
Torque limiter setting	Not applicable
Choke orifice	1.0 mm diameter orifice - servo control orifice
Gain orifice	Standard orifice
Shaft, auxiliary flange, and endcap	15 tooth 16/32 pitch shaft, no auxiliary, axial, inlet: 4-bolt split flange (2 inch port, M12 metric threads), outlet: 4-bolt splitflange (1 inch port, M10 metric threads)
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-B 2-bolt flange, SAE O-ring ports
Displacement limiter	None
Special hardware	Special hardware - none
Special features	Black paint, Danfoss tag
Proposition 65	Cancer and Reproductive Harm

83132396: frequently asked questions

When can 83132396 be shipped?

83132396 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83132396 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83132396 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83132396, subject to availability and destination.
