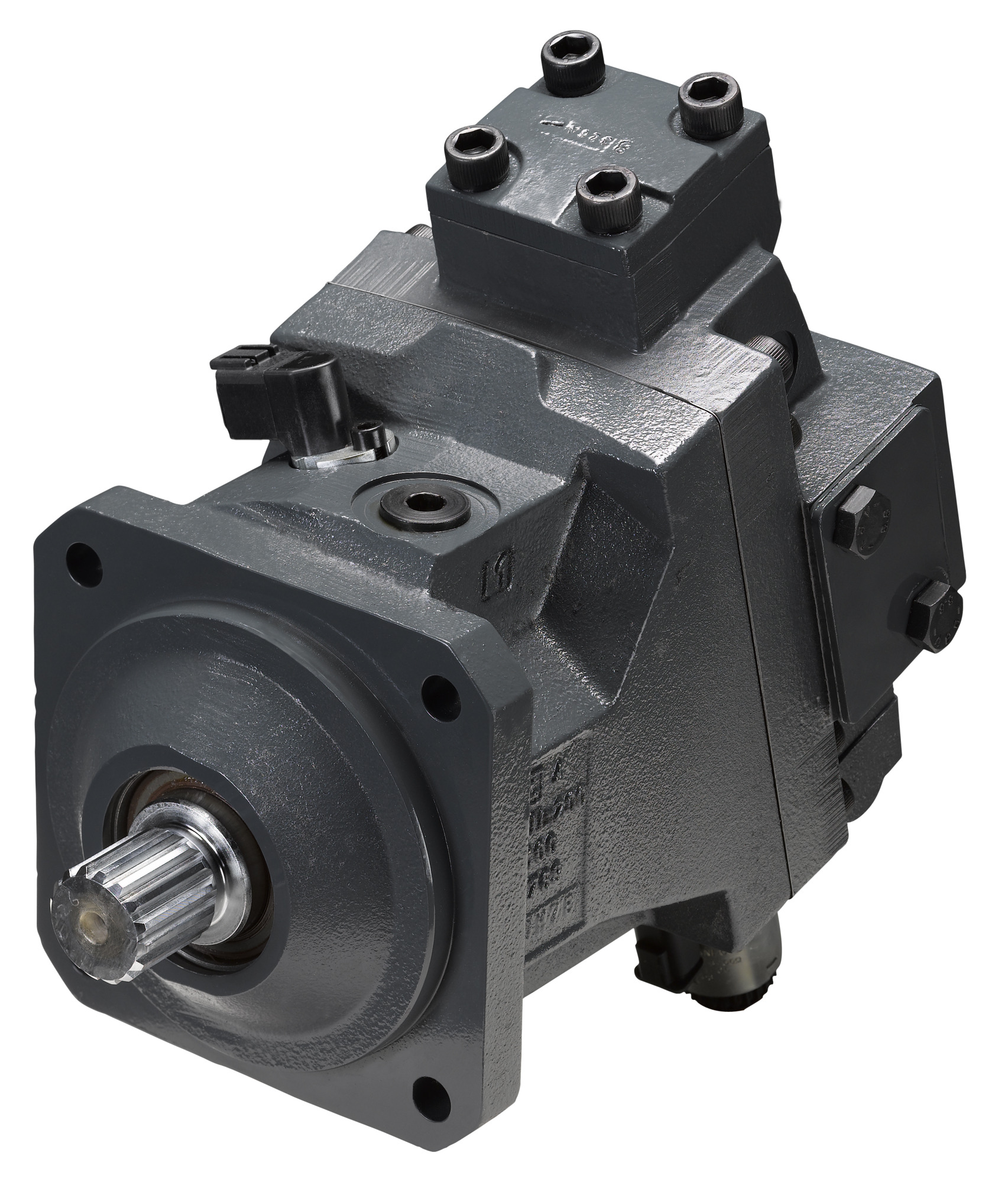

Danfoss 83130761

MOTOR-VAR-DISPL H1B080

MPN: 83130761
Category: Variable displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83130761?

Danfoss MOTOR-VAR-DISPL H1B080, manufacturer part number 83130761. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Bent-axis variable motor
Frame Size	Displacement 80 cc/rev at maximum angle
Revision	Product version A of H1B series
Configuration of ports	Port configuration: inch according to ISO 11926-1
Control	Pressure compensator override, default = minimum displacement
Pressure compensator override and brake pressure defeat	With pressure compensator override and without brake pressure defeat, use with “P” and “T” controls
Threshold setting	Not applicable
Orifices	1.2mm diameter orifices M4 and M5
Endcap type and ports	Endcap for 2 position and pressure compensator controls, axial ports ISO 6162 Type 1 (metric), use with “E”, “F”, “T”, “P” and“H*” controls
Flange and housing	SAE-flange motor housing (ISO 3019 / 1), no speed sensor port
Shaft and speed ring	14 tooth 12/24 pitch ANSI 92.1 1970 class 5, no speed ring
Sensor	No speed sensor
Loop flushing shuttle system	No loop flushing function
Loop flushing relief valve	No loop flushing function
Special hardware features	Standard hardware feature 2 position standard
Minimum displacement	000 cc/rev minimum displacement setting
Maximum displacement	100% maximum displacement, non adjustable, use with "E", "F", "T","P" & "H*"
Pressure compensator override setting	Pressure compensator override pressure setting 200 bar
Paint and nametag	Danfoss nametag
Proposition 65	Cancer and Reproductive Harm
