Danfoss 83127973

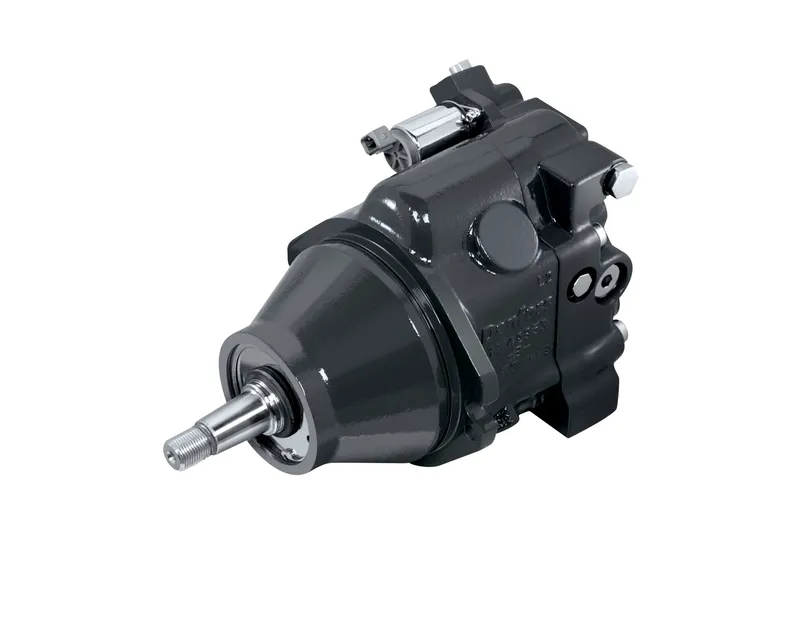

MOTOR-VARIABLE REVERSING CARTRIDGE K

MPN: 83127973
Category: Reverse displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83127973?

Danfoss MOTOR-VARIABLE REVERSING CARTRIDGE K, manufacturer part number 83127973. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

VARIABLE MOTOR PRODUCT	K Frame
B: CONFIGURATION	MOTOR-VARIABLE REVERSING CARTRIDGE
C: BASE DISPL / SPEED RING	38cc/REVOLUTION (2.32 CU. IN.)
D: SHAFT	Tapered, 0.875 inch Dia, 1.5 in/ft taper, uses Square key, with dust seal
E: END CAP/LOOP FL/MIN ANGLE A	TWIN RADIAL, SPLIT FLANGE 6162, ANTI-CAVITATION, A-PORT HIGH PRESSURE, 280 BAR OVERPRESSURE PROTECTION, 24 VOLT ELECTRIC SHIFT
F: MINIMUM DISPLACEMENT SETTI	REVERSE DISPLACEMENT 18 DEGREE
G: CONTROL TYPE	HYDRAULIC SINGLE LINE
H: SUPPLY ORIFICE	NONE
J: DRAIN ORIFICE	NONE
K: SPD SNSG/MAX ANGLE ADJ	HOUSING WITH SPEED SENSOR PORT PLUGGED, SAE CASE DRAIN, 3/4-16
L: MAXIMUM DISPLACEMENT SETTIN	18 DEG
M: SPECIAL HARDWARE	SPECIAL HARDWARE - HIGH CAPACITY ROLLER BEARING
N: SPECIAL FEATURES	SPECIAL FEATURE - BLACK PAINT, FULL COVERAGE, DANFOSS NAMETAG, LAYOUT Q
Proposition 65	Cancer and Reproductive Harm

83127973: frequently asked questions

When can 83127973 be shipped?

83127973 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83127973 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83127973 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83127973, subject to availability and destination.
