Danfoss 83126765

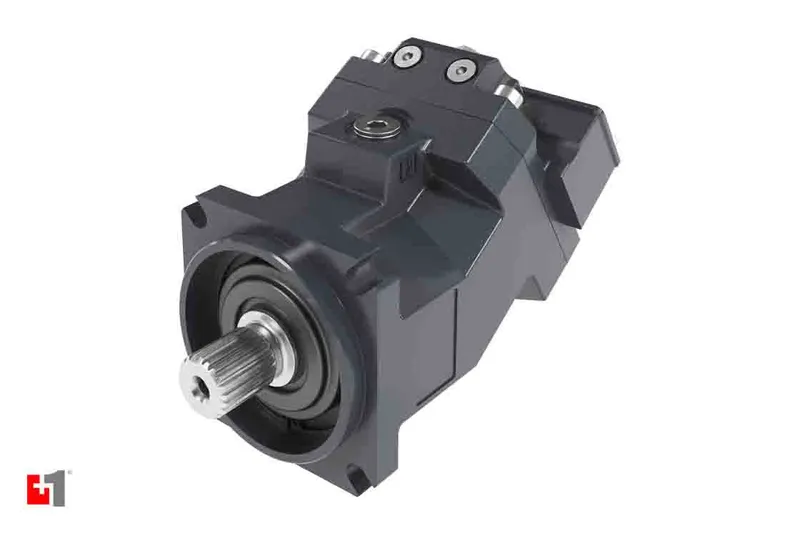

MOTOR-FIX-DISPL H1F080

MPN: 83126765
Category: Fixed displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83126765?

Danfoss MOTOR-FIX-DISPL H1F080, manufacturer part number 83126765. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A:Product Version	Product Version A
B:Control	Not applicable
C:PCOR,BPD	Not applicable
D:Treshold Settings	Not applicable
E:Orifices	Not applicable
F:Endcap Type & Port	Endcap with Loop flushing, side ports ISO 6162-2
Frame Size	Displacement 080 cc/rev
G:Flange & Housing	DIN-Flange motor housing (ISO 3019 / 2), With Speed sensor port
H:Shaft & Speed Ring	21 teeth 16/32 Pitch ANSI 92.1 1970 class 5, with speed ring
J:Sensor	Speed sensor, DEUTSCH DTM 04-6P connector, 4.5V to 8V
K:Loop Flushing Shutle System	Loop flushing, 6.5 bar shuttle shift pressure
L:Loop Flushing Relief Valve	10 l/min, non adjustable, 16 bar cracking pressure
M:Special Harware Feature	Standard Hardware Fixed
N:Displacement	Not applicable
P:HPRV Setting A	Port side A, Without High Pressure Relief valve
Product type	MOTOR,FIX,BI-DIRECTIONAL
Proposition 65	Cancer and Reproductive Harm
Q:HPRV Setting B	Port side B, Without High Pressure Relief valve
R:Paint & Nametag	Danfoss nametag
Series	H1-Series
Z:Port Configuration	Port Configuration: METRIC according to ISO 6149-1
