Danfoss 83124159

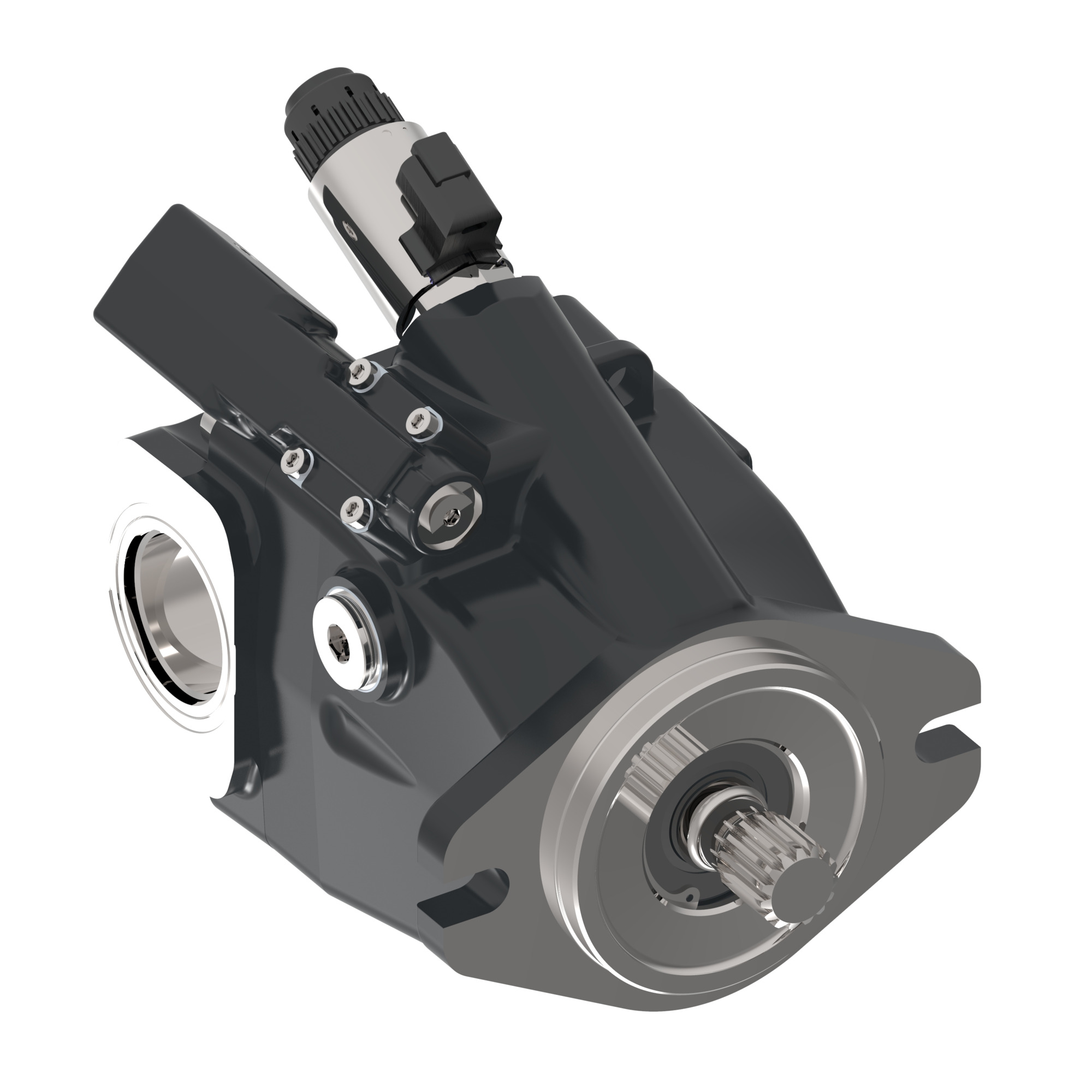

PUMP-VAR DISPL, CW S45PVOC_K2

MPN: 83124159
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83124159?

Danfoss PUMP-VAR DISPL, CW S45PVOC_K2, manufacturer part number 83124159. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	K2 frame axial piston open circuit pump
Rotation	Clockwise rotation
Displacement and load life	38cc displacement, C load life, electric displacement
Control type	Pressure compensated [PC pressure range: 100-280 bar, LS pressure range: 10-40 bar]
Pressure compensator setting	230 bar [3335 psi]
Load sensing setting	Not applicable
Torque limiter setting	Not applicable
Choke orifice	None
Gain orifice	Standard orifice
Shaft, auxiliary flange, and endcap	13 tooth 16/32 pitch shaft, SAE-A 9 tooth auxiliary, radial, inlet: metric O-ring boss port (M48 thread), outlet: metric O-ring boss port (M33 thread), integrated SAE-A auxiliary
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-B 2-bolt flange, M22, EDC_K2
Displacement limiter	Electric displacement control, normally open, 12VDC, 1.0mm orifice
Special hardware	Electric displacement control, K2
Special features	Black paint, Danfoss tag
Proposition 65	Cancer and Reproductive Harm
