Danfoss 83123743

PUMP-VAR DISPL, CW S45PVOC_K2

MPN: 83123743
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 83123743?

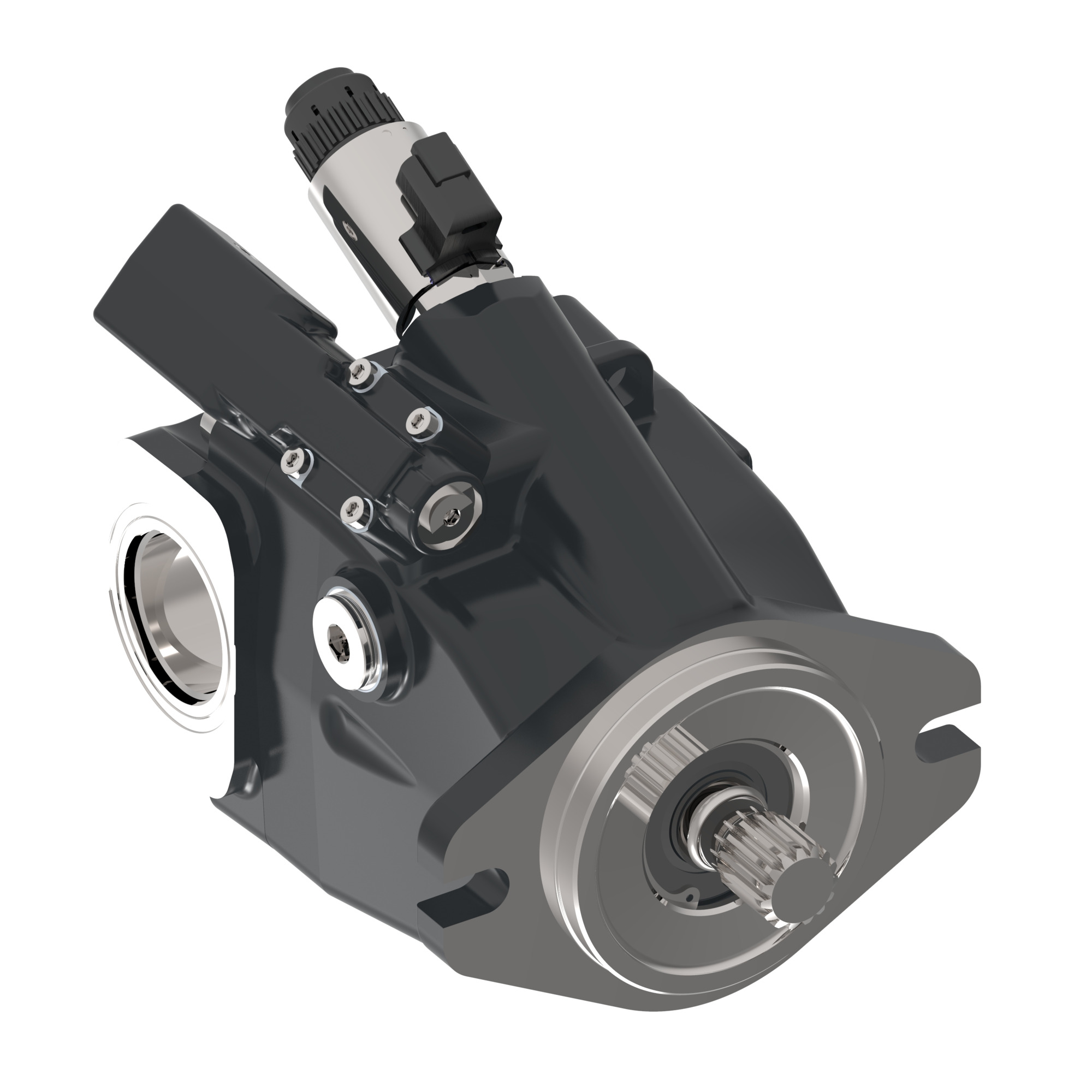

Danfoss PUMP-VAR DISPL, CW S45PVOC_K2, manufacturer part number 83123743. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	K2 frame axial piston open circuit pump
Rotation	Clockwise rotation
Displacement and load life	30 cc/rev - 260 bar maximum continuous rated pressure
Control type	Pressure compensated / load sensing [PC pressure range: 100-280 bar, LS pressure range: 10-40 bar]
Pressure compensator setting	260 bar [3770 psi]
Load sensing setting	18 bar [261 psi]
Torque limiter setting	Not applicable
Choke orifice	None
Gain orifice	Standard orifice
Shaft, auxiliary flange, and endcap	13 tooth 16/32 pitch shaft, no auxiliary, axial, inlet: SAE O-ring boss port (1.875 inch thread), outlet: SAE O-ring boss port(1.3125 inch thread)
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-B 2-bolt flange, metric O-ring ports
Displacement limiter	Adjustable displacement limiter set to max flow
Special hardware	Special hardware - none
Special features	Black paint, Danfoss tag
