Danfoss 83120272

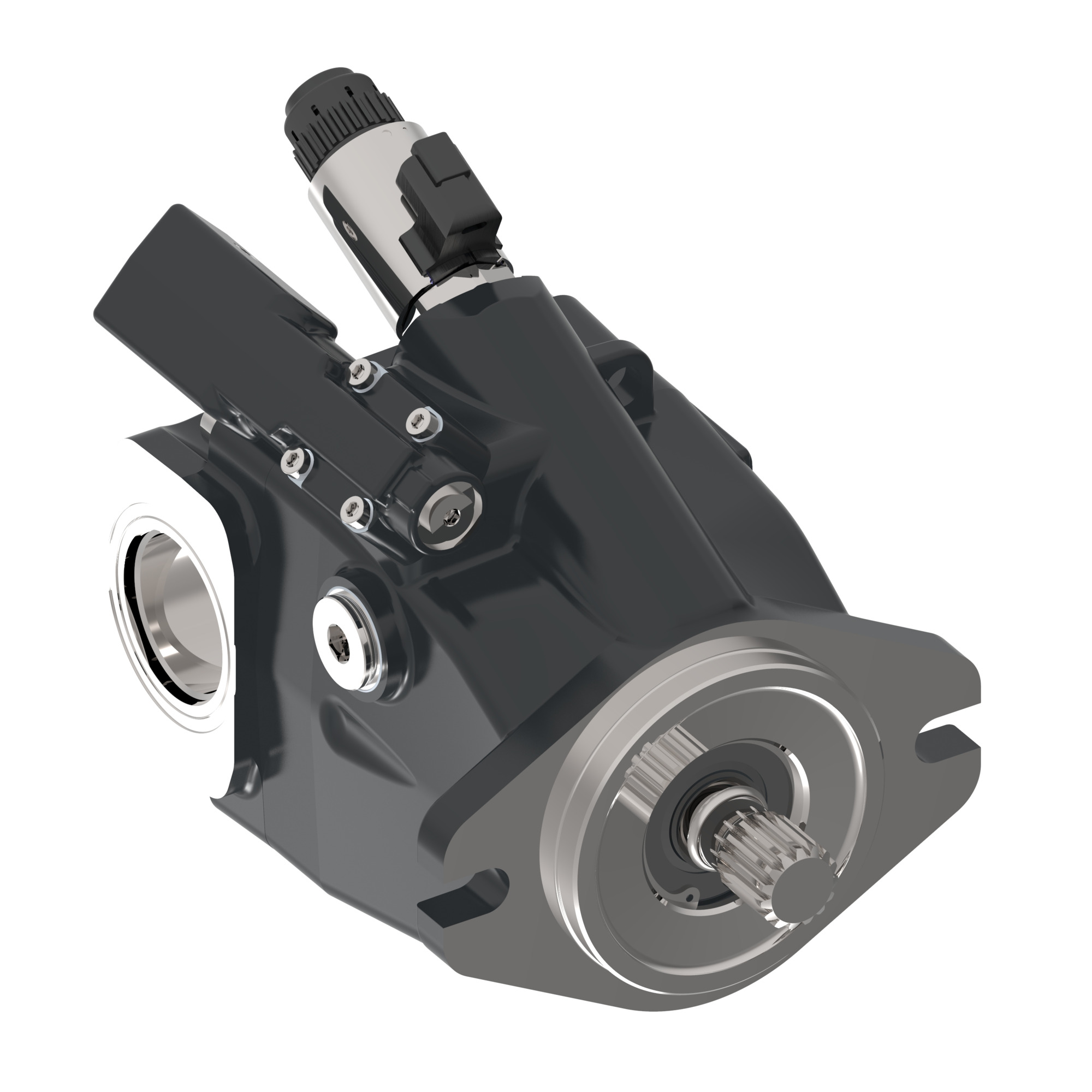

PUMP-VAR DISPL, CW S45PVOC_K2

MPN: 83120272
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83120272?

Danfoss PUMP-VAR DISPL, CW S45PVOC_K2, manufacturer part number 83120272. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	K2 frame axial piston open circuit pump
Rotation	Clockwise rotation
Displacement and load life	38 cc/rev - 260 bar maximum continuous rated pressure
Control type	Electric fan drive control, 24VDC, proportional pressure decreasing functionality (NC), Deutsch connector left [PC pressure range:100-210 bar]
Pressure compensator setting	210 bar [3045 psi]
Load sensing setting	Not applicable
Torque limiter setting	Not applicable
Choke orifice	0.8 mm diameter, fan drive control, servo choke orifice
Gain orifice	1.2 mm diameter orifice, fan drive control, gain orifice
Shaft, auxiliary flange, and endcap	13 tooth 16/32 pitch shaft, SAE-B 13 tooth auxiliary, radial, inlet: 4-bolt split flange (1.5 inch port, M12 thread), outlet: 4-bolt split flange (1.0 inch port, M10 thread)
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-B 2-bolt flange, SAE O-ring ports
Displacement limiter	Adjustable displacement limiter set to max flow
Special hardware	Special hardware - none
Special features	VLV=PNT-BLACK,TG-VOLVO
Proposition 65	Cancer and Reproductive Harm
