Home / Danfoss (Drives) / Electrohydraulic steering valves / Danfoss 83119907

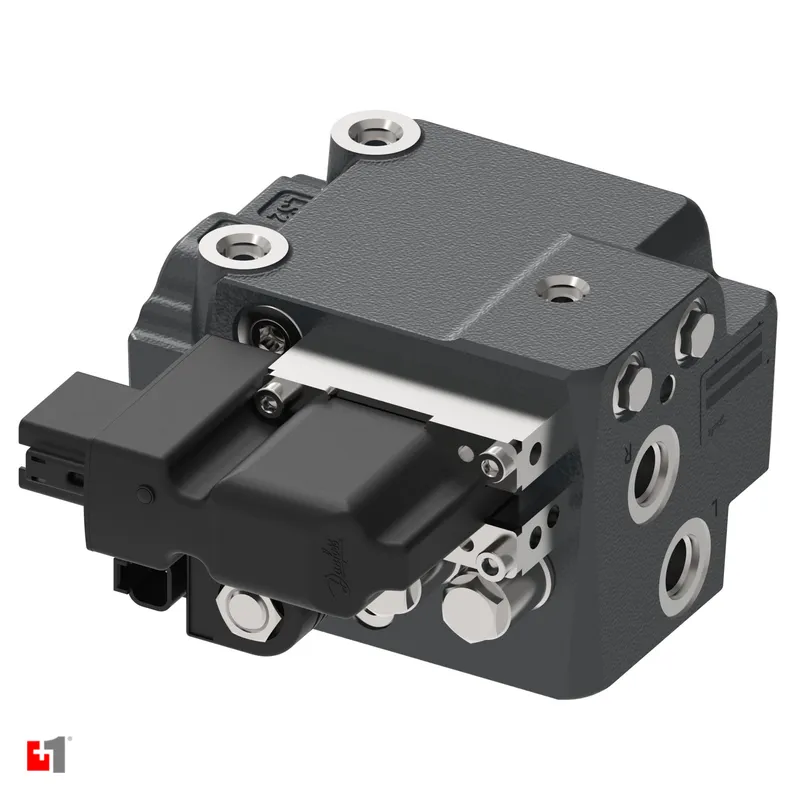

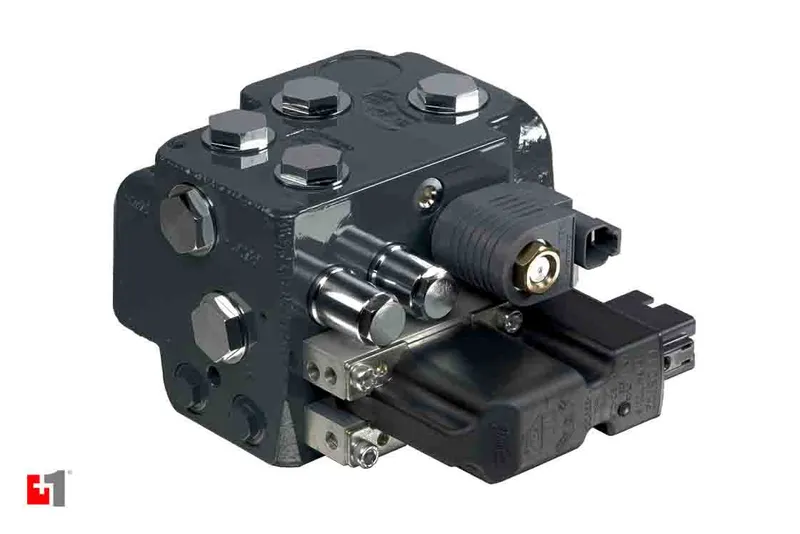

Danfoss 83119907

EHI STEERING VALVE

MPN: 83119907
Category: Electrohydraulic steering valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83119907?

Danfoss EHI STEERING VALVE, manufacturer part number 83119907. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Product type	EHi
Electrohydraulic flow, nominal	30 L/min
Circuit type	Load sense dynamic
Pilot unit type	Non-Reaction
Disengage	Electric
LS1 signal (external)	Dynamic
Integrated priority valve	Without integrated valve
Excess flow	No excess flow
Integrated priority valve type	No Priority valve
Integrated priority valve spring	No priority spool
Pressure resolver (PVFC)	Without check valves
Relief valve connection	Build-in relief valve will limit steering pressures while steering withEHi as well as with pilot unit.
Ports standard	ISO 11926-1
Ports size	3/4-16, 7/16-20
LS1 port	Plastic plug
LS2 port	Plastic plug
EF port	Not available
P and T front ports	Plastic plugs
P and T side ports	Steel plugs
CL and CR ports	Plastic plugs
L and R ports	Plastic plugs
CF port	Not available
PVE actuator	PVED-CLS s5 Deutsch (SIL2)
Firmware version	Standard
Firmware revision	2.02
Firmware package	Not applicable
Additional information	No additional info
Cut off connector	Deutsch
Cut off coil voltage	24 VDC
Relief valve setting	185-195 Bar
Shock valve setting	No Shock valves
Dynamic orifice	No priority spool
PP orifice	No priority spool
LS orifice	Regular. 1.2 mm LS orifice
Reaction Switch	No reaction switch
Special feature	No special feature
Product Label	Danfoss Standard Label
Paint	Painted black
Software ID	SWID005420
Label	Danfoss Standard Label
Proposition 65	Cancer and Reproductive Harm
