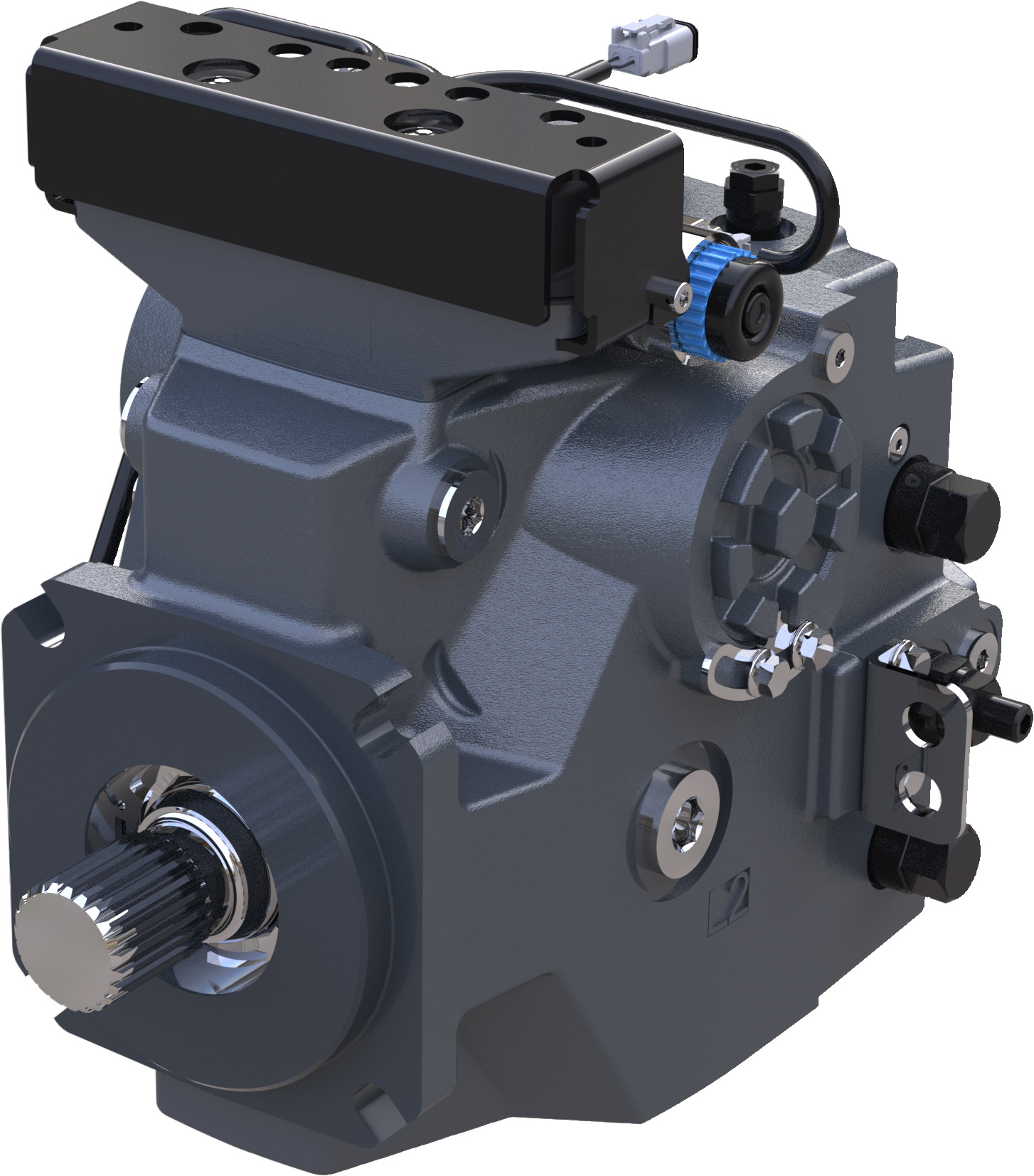

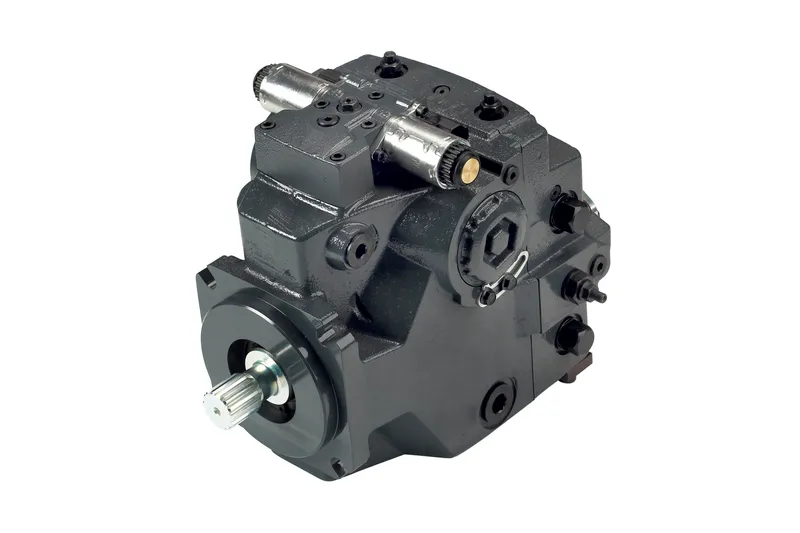

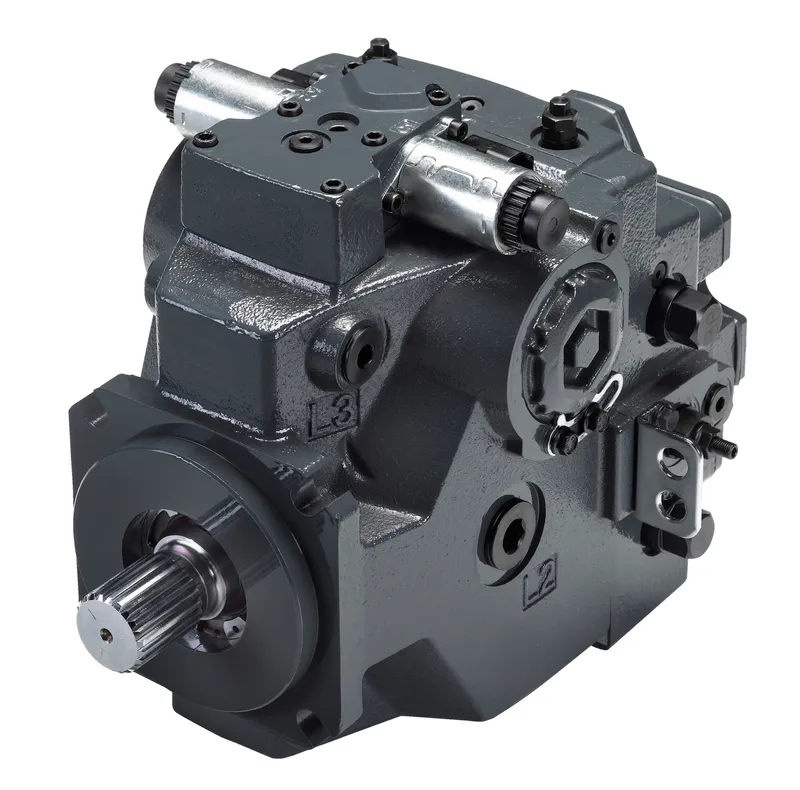

Danfoss 83111037

PUMP-VAR DISPL CCW H1PV078

MPN: 83111037
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83111037?

Danfoss PUMP-VAR DISPL CCW H1PV078, manufacturer part number 83111037. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Variable pump
Frame Size	78cc/rev max/variable displacement
Rotation	Left hand - counterclockwise
Product version	Product version B
Configuration of ports	ANSI O-ring boss port configuration
Control	Electrical displacement control, 12V Deutsch DT04-2P connector, manual override
Orifices	P = none, A+B = none, TA+TB = none
Displacement limitation	No limiters electrical displacement control/forward neutral reverse control
Endcap type	Twin port, code 62 metric 4 bolt flange, integral pressure filter
Mounting flange	SAE C 4 bolt flange
Input shaft	38.1mm taper without key
Auxiliary pad	No auxiliary pad
Protection type side A	Pressure limiter, high pressure relief valve
High pressure setting side A	400 bar
Protection type side B	High pressure relief valve + pressure limiter
High pressure setting side B	400 bar
Charge pump	17cc/rev
Filtration	Integral full flow with filter bypass sensor
Charge relief pressure setting	24 bar charge pressure relief valve
Special hardware features	Electrical displacement control/forward neutral reverse control/ manual displacement control valve plate, without handle
Paint and nametag	Black paint, Danfoss tag A
Settings	Default, no special settings
Proposition 65	Cancer and Reproductive Harm
