Danfoss 83109915

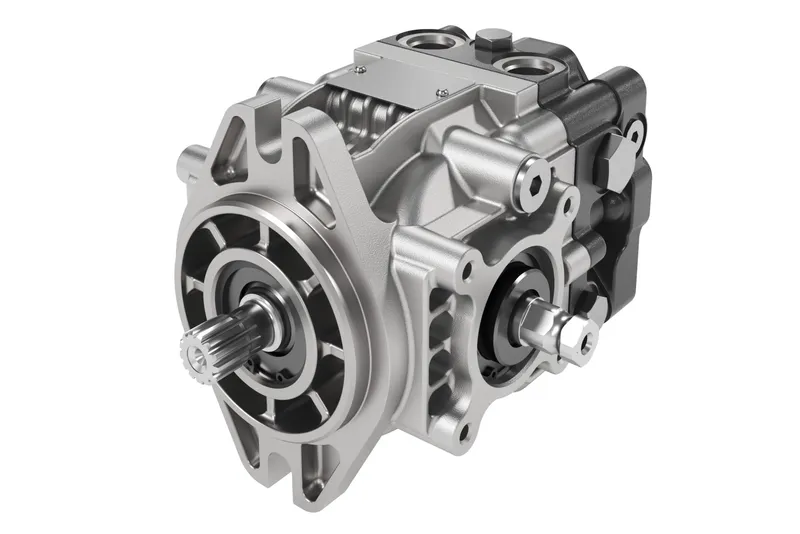

PUMP-VAR-DISPL CW DDC24

MPN: 83109915
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83109915?

Danfoss PUMP-VAR-DISPL CW DDC24, manufacturer part number 83109915. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

DDC Product	DDC Axial Piston Closed Circuit Pump
A: BASE FRAME SIZE	Rotating group displacement: 24 cc/rev
B: PRODUCT VERSION	Variable Displacement Pump Product Version "A"
R: ROTATION	Rotation,Right-hand, CW, Clockwise Rotation
E: CONTRL ARM CONFIG/MAX DISPL	Control Arm Location Right side, 17mm square trunion shaft
G: NAM CONF & ORIENTATION	Neutral Assiste Mechanism, None
M: BYPASS VALVE	With Bypass Valve
H: LOOP FLHUSHING SETTING	Defeated Loop Flushing
K: CHARGE PUMP DISPL	No Charge Pump
F: PUMP IP SHFT/AUX SPLINE/CHP	Pump Input Shaft, No Charge pump, With Aux, SAE B, 13 teeth
J: Endcp/AuxP/CHP/LpFls&Byps	Endcap with Bypass and Defeated Loop Flush, No Charge pump, External Filtration, Aux Pad SAE-A, 13T
S: INPUT FLNGE & HOUSING	Mounting Flange & Housing Features, SAE 'A' Flange, Three drain ports with steel case drain plugs
L: CHARGE RELIEF SETTING	21 bar charge pump relief setting
N: SYS PRESSURE PROTECTION A	System Pressure Protection Port A,High Pressure Relief Valve 210 bar
P: SYS PRESSURE PROTECTION B	System Pressure Protection Port B, High Pressure Relief Valve 210 bar
Y: SPECIAL HARDWARE	No Special Hardware
Z: PAINT & TAG	Black Paint, Danfoss logo, Format A
C: VALVE PLATE	Rotation CW (R) Valve Plate, High neutral seeking moments
Proposition 65	Cancer and Reproductive Harm
