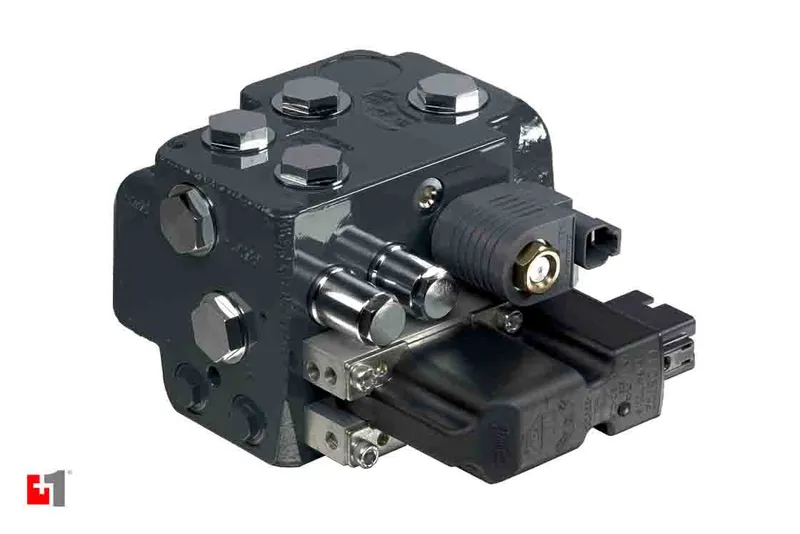

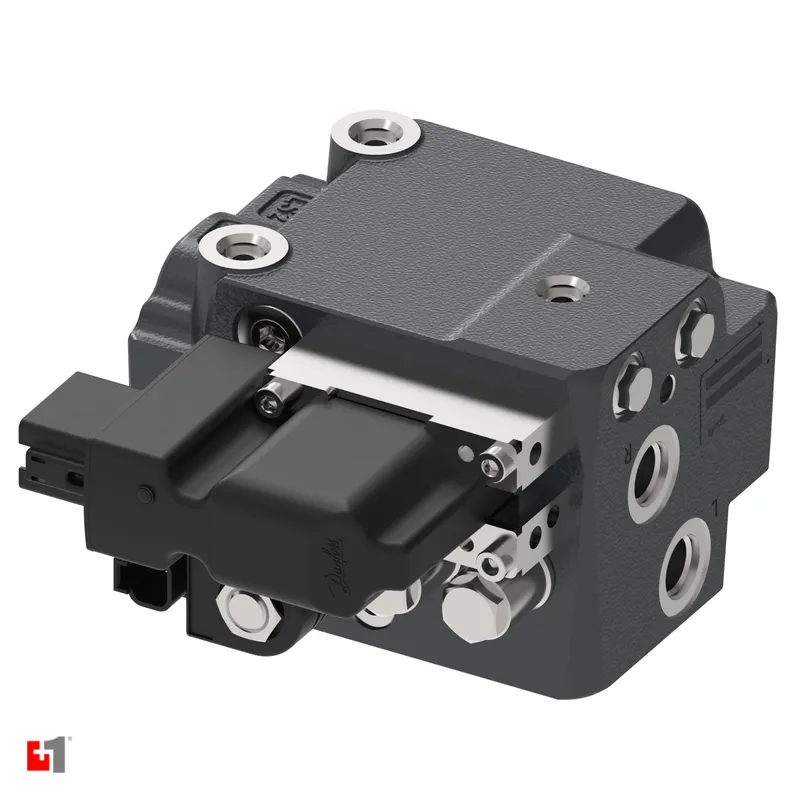

Danfoss 83109629

EHI STEERING VALVE

MPN: 83109629
Category: Electrohydraulic steering valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83109629?

Danfoss EHI STEERING VALVE, manufacturer part number 83109629. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Product type	EHi
Electrohydraulic flow, nominal	70 L/min
Circuit type	Steer by Wire
Pilot unit type	No pilot unit
Disengage	Not relevant
LS1 signal (external)	Static
Integrated priority valve	For system with nominal pump flow above 45 l/min
Excess flow	Excess flow available
Integrated priority valve type	Static
Integrated priority valve spring	10 bar spring
Pressure resolver (PVFC)	None
Relief valve connection	Build-in relief valve will only limit EHi steering pressure. If pilotunit is present additional relief valve to limit steering pressure inpilot unit will be needed.
Ports standard	ISO 6149-1
Ports size	P,T,EF: M22CL,CR,L,R,CF: M18LS1,LS2: M18if machined
LS1 port	Steel plug
LS2 port	Not available
EF port	Plastic plug
P and T front ports	Plastic plugs
P and T side ports	Steel plugs
CL and CR ports	Plastic plugs
L and R ports	Not available
CF port	Steel plug
PVE actuator	PVED-CLS s5 Deutsch (SIL2)
Firmware version	Standard
Firmware revision	2.02
Firmware package	Not applicable
Additional information	No additional info
Cut off connector	Deutsch
Cut off coil voltage	24 VDC
Relief valve setting	160-170 Bar
Shock valve setting	210-233 bar
Dynamic orifice	Static. No dyn. orifice
PP orifice	Regular. 0.7 mm PP orifice
LS orifice	Regular. 1.2 mm LS orifice
Reaction Switch	No reaction switch
Special feature	No special feature
Product Label	Danfoss Standard Label
Paint	Painted black
Software ID	SWID003359
Label	Danfoss Standard Label
Proposition 65	Cancer and Reproductive Harm
