Danfoss 83109599

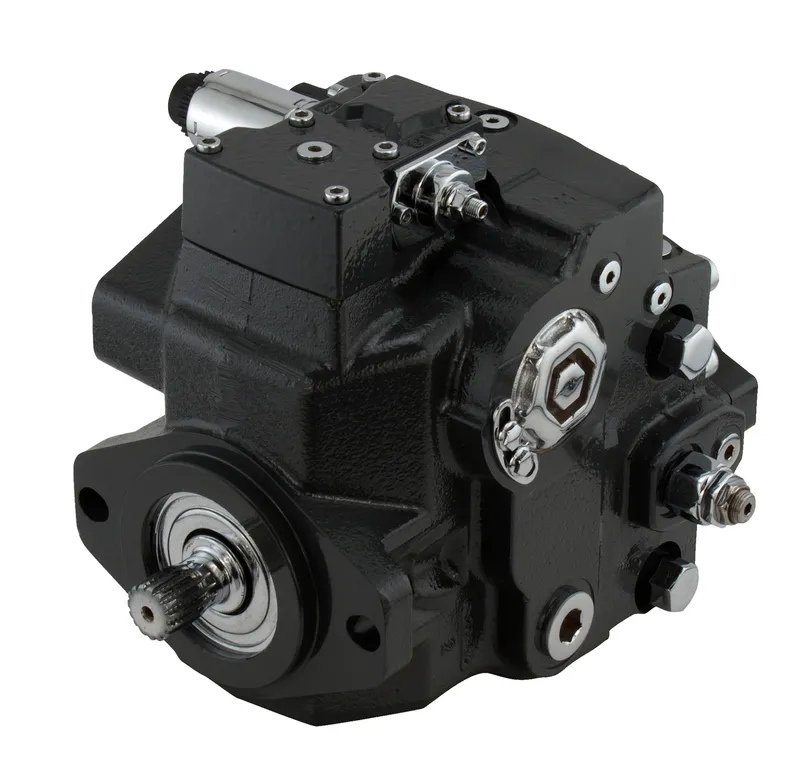

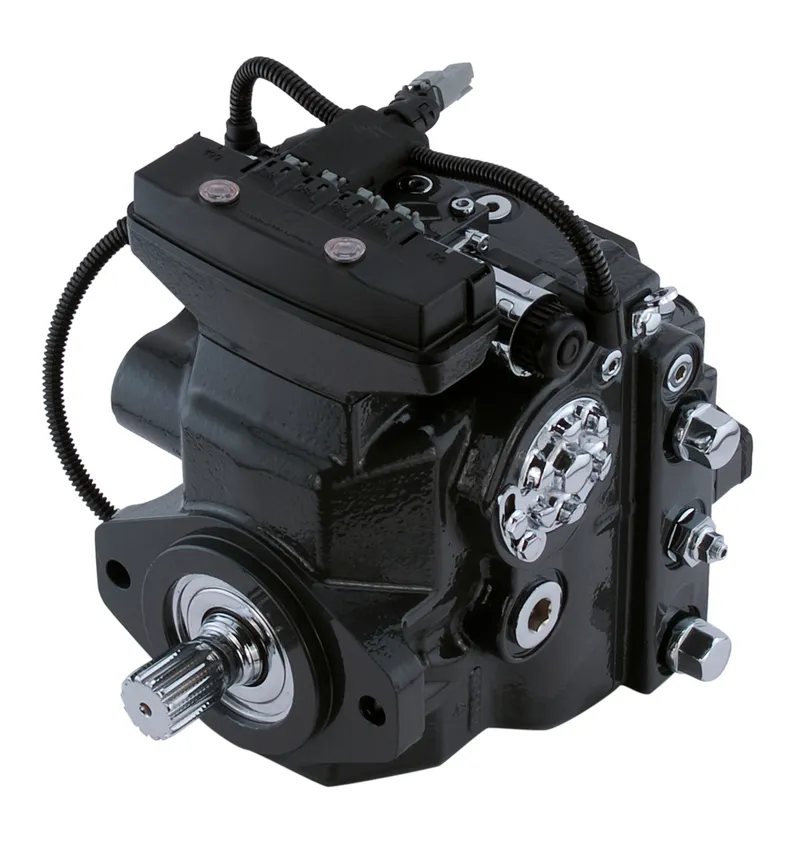

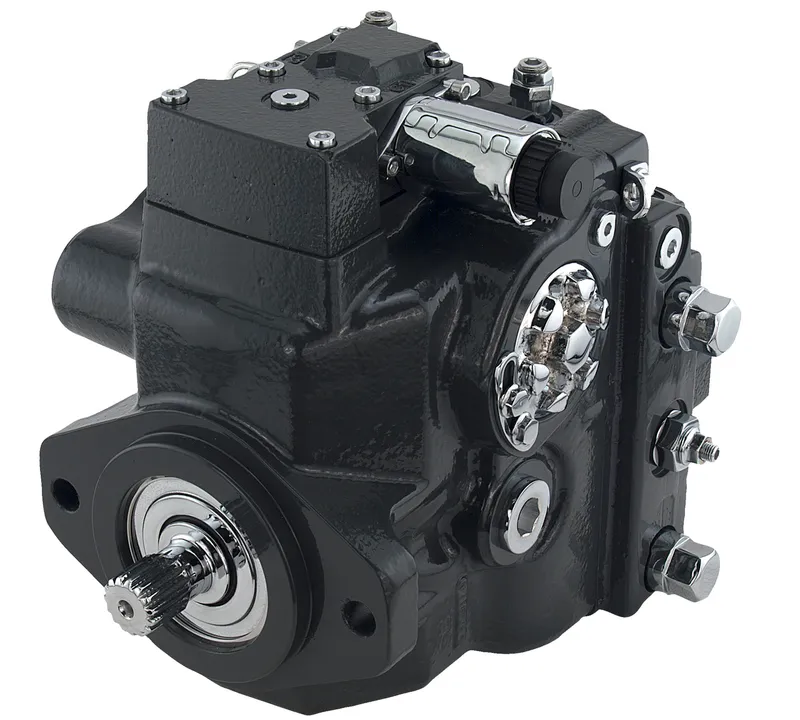

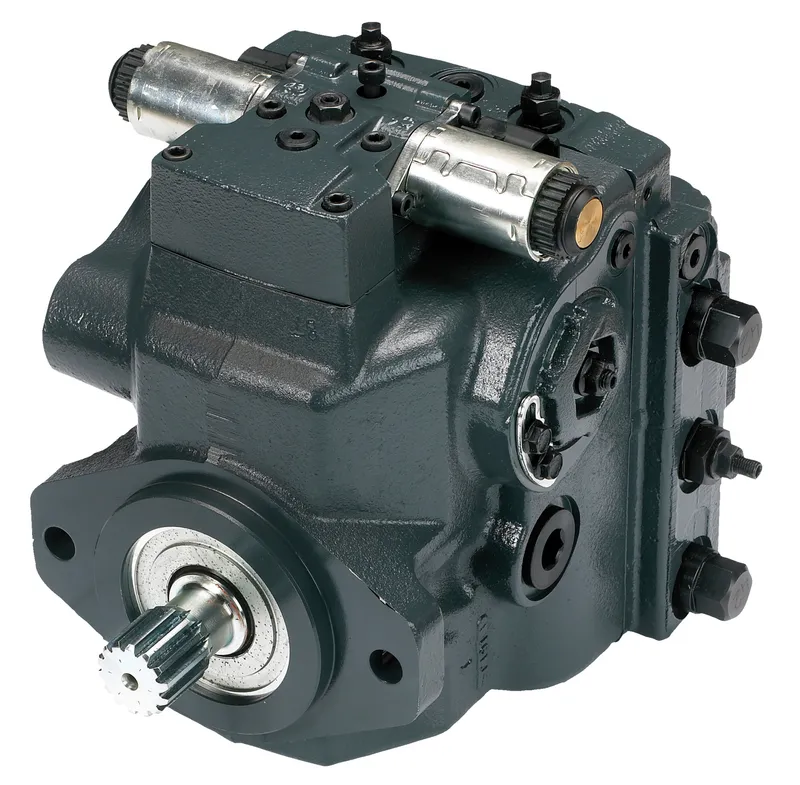

PUMP-VAR DISPL CW H1P045R

MPN: 83109599
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83109599?

Danfoss PUMP-VAR DISPL CW H1P045R, manufacturer part number 83109599. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Variable pump
Frame Size	45cc/rev max/variable displacement
Rotation	Right hand - clockwise
Product version	Product version A
Configuration of ports	ANSI O-ring boss port configuration
Control	Fan drive control, 24V Deutsch DT04-2P connector, side C1 solenoid
Orifices	P = none, A+B = 0.8mm, TA+TB = none
Displacement limitation	No limiters automotive control/non-feedback proportional electric (nested springs)
Endcap type	Twin port, code 62 metric 4 bolt flange, remote filter
Mounting flange	SAE B 2 bolt flange (for installation of pump, M12 screws and hardened washers must be used)
Input shaft	13 tooth, 16/32
Auxiliary pad	13 tooth, B pad
Protection type side A	Pressure limiter, high pressure relief valve, for fan drive control
High pressure setting side A	150 bar pressure limiter / 250 bar high pressure relief valve (PL are field adjustable from 150 bar to 200 bar)
Protection type side B	Pressure limiter and high pressure relief valve designed for fan drive control
High pressure setting side B	150 bar pressure limiter/ 250 bar high pressure relief valve, (pressure limiter are field adjustable from 150 bar to 200 bar)
Charge pump	12cc/rev
Filtration	Remote full flow
Charge relief pressure setting	24 bar charge pressure relief valve
Special hardware features	Automative control /non-feedback proportional electric/fan drive control valve plate
Paint and nametag	Black paint, Danfoss tag A
Settings	Default, no special settings
