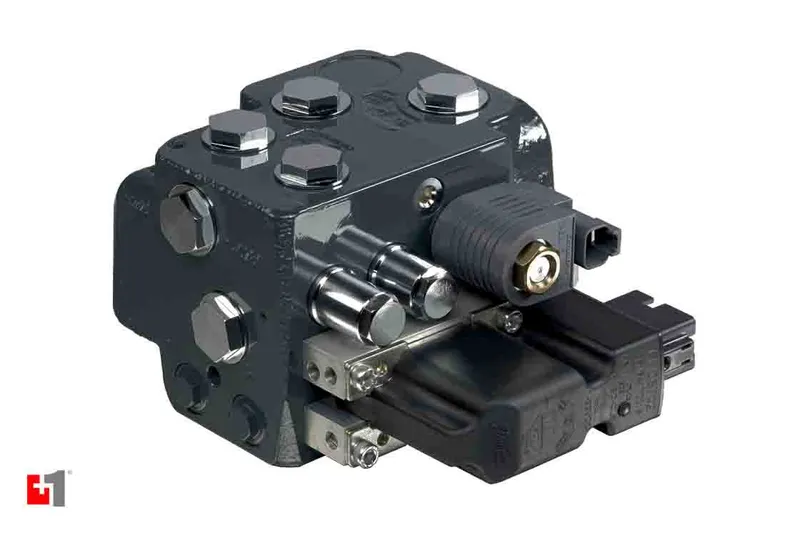

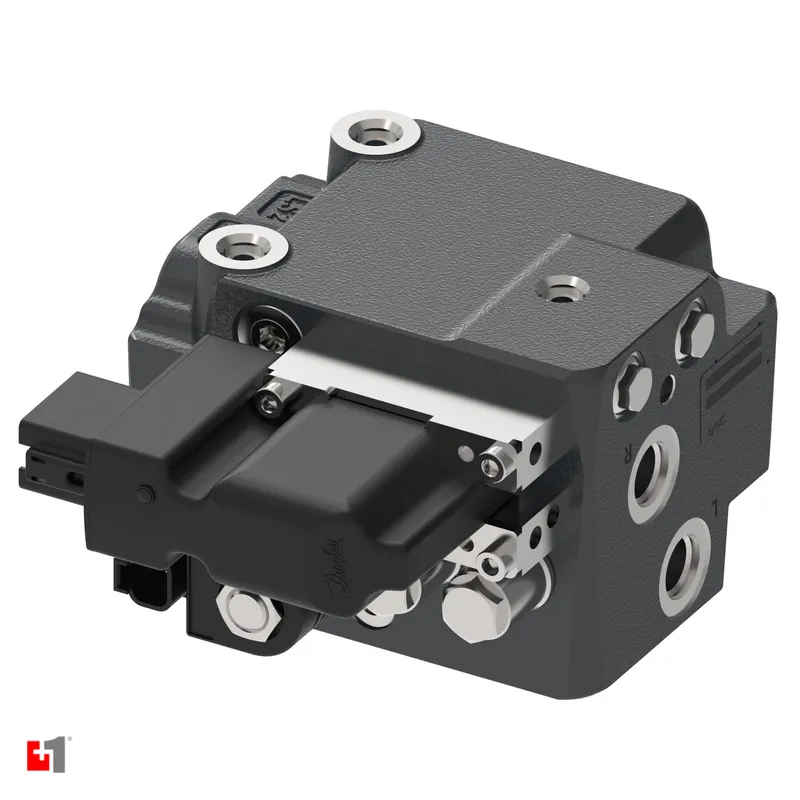

Danfoss 83109569
EHI STEERING VALVE
- MPN
- 83109569
- Category
- Electrohydraulic steering valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 83109569?
Danfoss EHI STEERING VALVE, manufacturer part number 83109569. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Product type | EHi |
| Electrohydraulic flow, nominal | 12 L/min |
| Circuit type | Steer by Wire |
| Pilot unit type | No pilot unit |
| Disengage | Not relevant |
| LS1 signal (external) | Not present |
| Integrated priority valve | For system with nominal pump flow above 45 l/min |
| Excess flow | Excess flow available |
| Integrated priority valve type | Static |
| Integrated priority valve spring | 10 bar spring |
| Pressure resolver (PVFC) | None |
| Relief valve connection | Build-in relief valve will only limit EHi steering pressure. If pilotunit is present additional relief valve to limit steering pressure inpilot unit will be needed. |
| Ports standard | ISO 6149-1 |
| Ports size | P,T,*EF: M22CL,CR,*L,*R,*CF: M18LS1,*LS2: M18*if machined |
| LS1 port | Steel plug |
| LS2 port | Not available |
| EF port | Plastic plug |
| P and T front ports | Plastic plugs |
| P and T side ports | Steel plugs |
| CL and CR ports | Plastic plugs |
| L and R ports | Not available |
| CF port | Steel plug |
| PVE actuator | PVED-CLS s5 Deutsch (SIL2) |
| Firmware version | Standard |
| Firmware revision | 2.02 |
| Firmware package | Not applicable |
| Additional information | No additional info |
| Cut off connector | Deutsch |
| Cut off coil voltage | 24 VDC |
| Relief valve setting | 140-150 Bar |
| Shock valve setting | 190-213 bar |
| Dynamic orifice | Static. No dyn. orifice |
| PP orifice | Regular. 0.7 mm PP orifice |
| LS orifice | Regular. 1.2 mm LS orifice |
| Reaction Switch | No reaction switch |
| Special feature | No special feature |
| Product Label | Danfoss Standard Label |
| Paint | Painted black |
| Software ID | SWID003324 |
| Label | Danfoss Standard Label |
| Proposition 65 | Cancer and Reproductive Harm |
