Danfoss 83109384

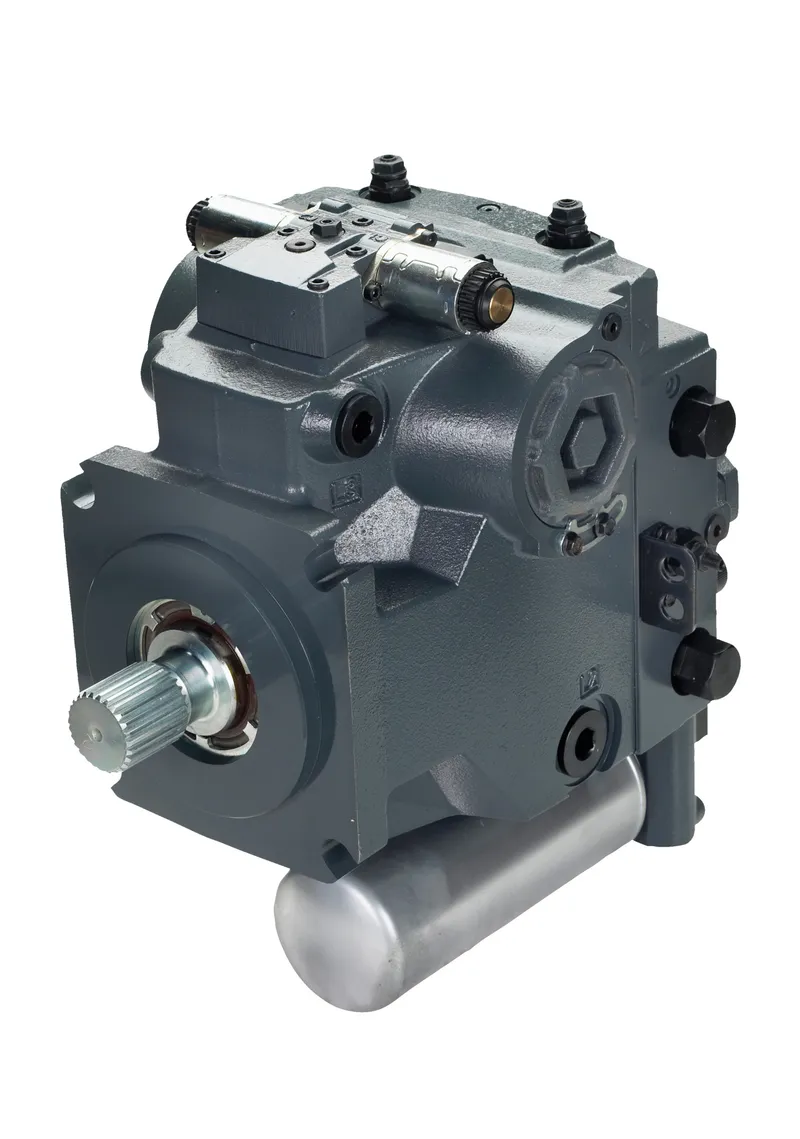

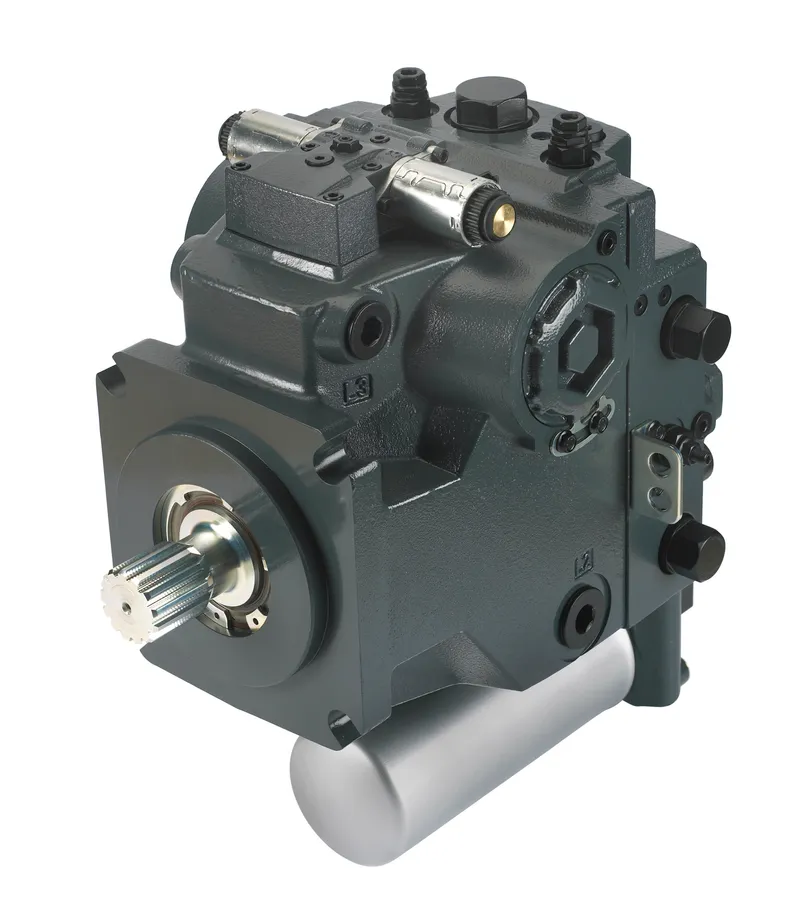

PUMP-VAR-DISPL CW H1PV147

MPN: 83109384
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83109384?

Danfoss PUMP-VAR-DISPL CW H1PV147, manufacturer part number 83109384. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Variable pump
Frame Size	147cc/rev max/variable displacement
Rotation	Right hand - clockwise
Product version	Product version D
Configuration of ports	ANSI O-ring boss port configuration
Control	Non-feedback proportional electric, 24V, control cut off Deutsch DT04-2PC, manual override
Orifices	P = none, A+B = none, TA+TB = none
Displacement limitation	Adjustable externally advanced control/non-feedback proportional electric (nested springs)
Endcap type	Twin port, code 62 metric 4 bolt flange, suction filter
Mounting flange	SAE D 4 bolt flange + speed sensor
Input shaft	13 tooth, 8/16
Auxiliary pad	14 tooth, C pad
Protection type side A	High pressure relief valve only, system gage ports (select high pressure relief valve setting below)
High pressure setting side A	450 bar
Protection type side B	High pressure relief valve only, system gage port
High pressure setting side B	450 bar
Charge pump	34cc/rev
Filtration	Suction filtration
Charge relief pressure setting	28 bar charge pressure relief valve
Special hardware features	Automative control /non-feedback proportional electric/fan drive contro valve plate + speed sensing
Paint and nametag	Black paint, Danfoss tag A
Settings	Default, no special settings
Proposition 65	Cancer and Reproductive Harm
