Danfoss 83109054

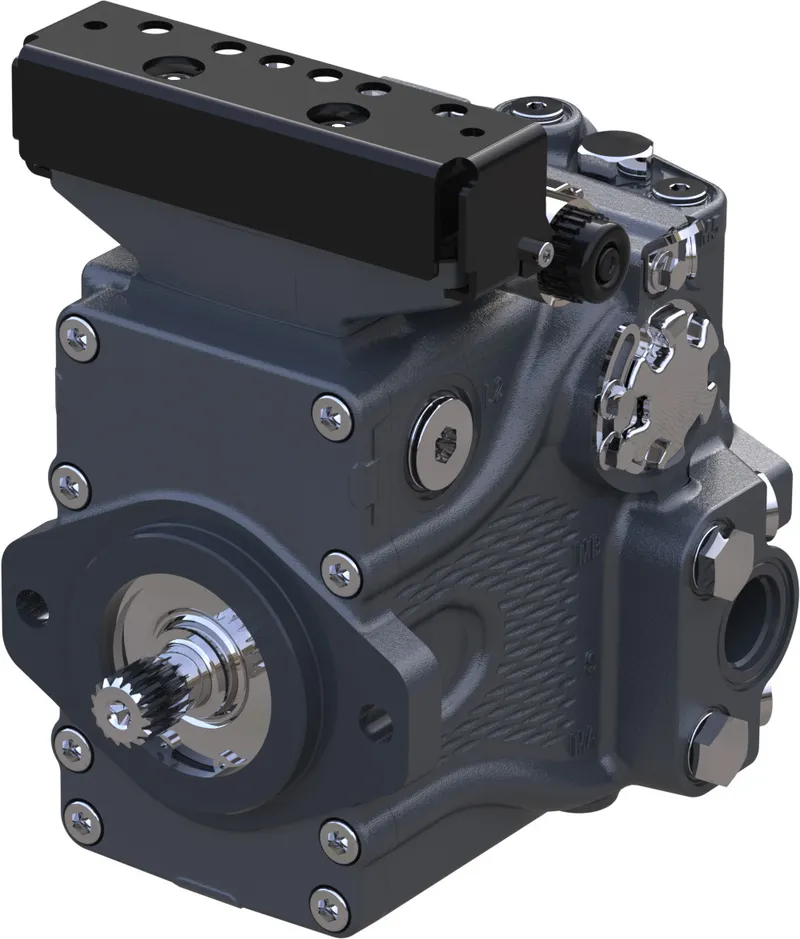

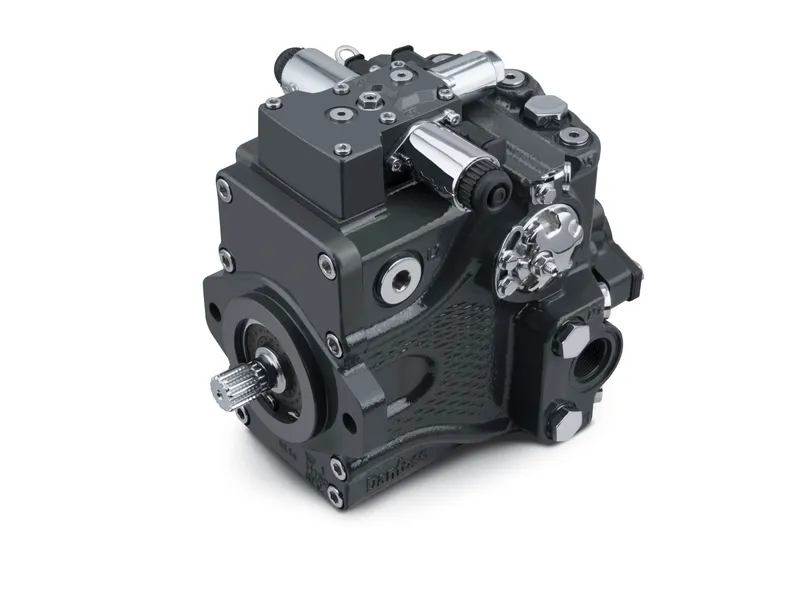

PUMP-VAR DISPL MP1P45R

MPN: 83109054
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83109054?

Danfoss PUMP-VAR DISPL MP1P45R, manufacturer part number 83109054. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	MP1 - Series
Product type	Variable pump
A: DISPLACEMENT & ROTATION	45 cc/rev max/variable displacement, clockwise
B: PRODUCT VERSION & UNIT	Product version A, inch
C: AC & INCHING	Automotive control, none
D: CONTROL	Electrical displacement control, 24V, Deutsch DT04-2P connector, manual override
F: ORIFICES	Pressure = none, A+B = 0.8mm, TA+TB = none
K: CHG PMP AND AUX PAD	12cc/rev charge pump, 13 tooth B pad
E: DISPLACMENT LIMITATION	No displacement limiters
M: HIGH PRESSURE SETT SIDE A	High pressure setting A side, 345 bar
N: HIGH PRESSURE SETT SIDE B	High pressure setting B side, 345 bar
Z: POR SETTING	POR setting, none
L: LOOP FLUSHING	Loop flushing, none
V: CHARGE RELIEF PRESSURE SETT	22 bar charge pressure relief setting
G: PORTING TYPE	System ports, O-ring boss, inch per ISO 11926-1
W: SPECIAL HARDWARE FEATURES	Special hardware, standard, 45cc, clockwise
X: PAINT AND NAMETAG	Black paint, standard nametag, layout A
Proposition 65	Cancer and Reproductive Harm
