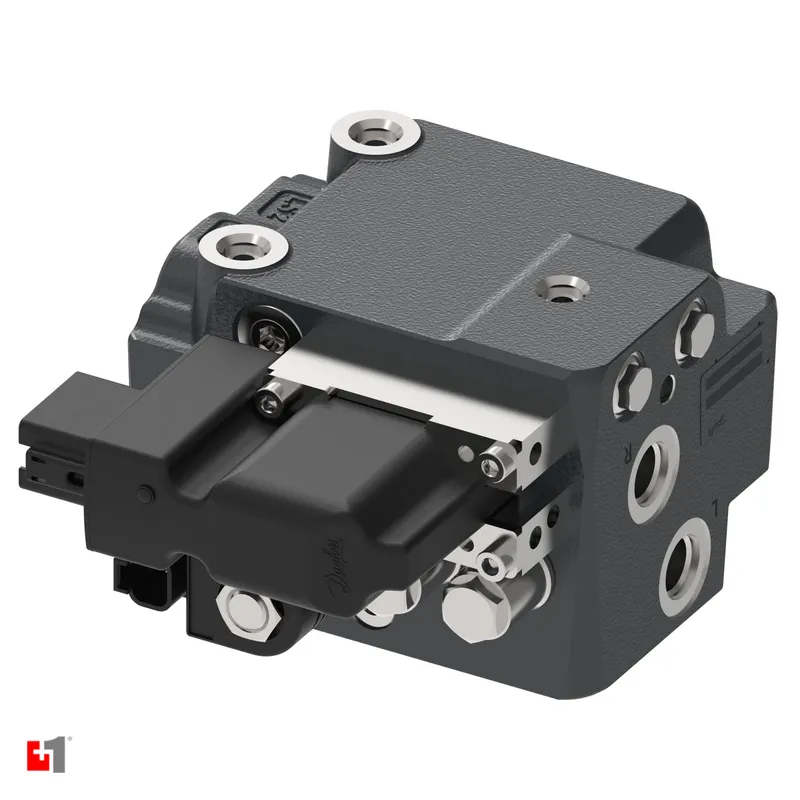

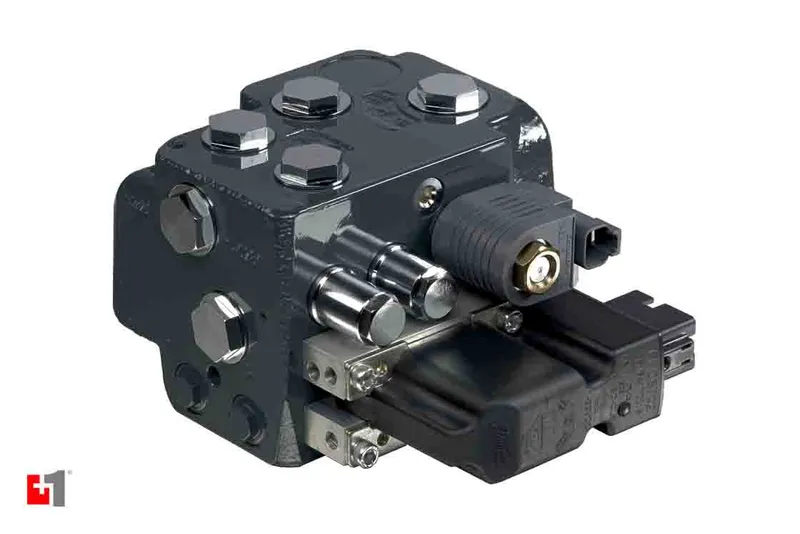

Danfoss 83106883

EHI STEERING VALVE

MPN: 83106883
Category: Electrohydraulic steering valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83106883?

Danfoss EHI STEERING VALVE, manufacturer part number 83106883. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Product type	EHi
Electrohydraulic flow, nominal	70 L/min
Circuit type	Load sense dynamic
Pilot unit type	Reaction
Disengage	Electric
LS1 signal (external)	Dynamic
Integrated priority valve	Without integrated valve
Excess flow	No excess flow
Integrated priority valve type	No Priority valve
Integrated priority valve spring	No priority spool
Pressure resolver (PVFC)	Without check valves
Relief valve connection	Build-in relief valve will limit steering pressures while steering withEHi as well as with pilot unit.
Ports standard	ISO 6149-1
Ports size	P,T,EF: M22CL,CR,L,R,CF: M18LS1,LS2: M18if machined
LS1 port	Plastic plug
LS2 port	Plastic plug
EF port	Not available
P and T front ports	Plastic plugs
P and T side ports	Steel plugs
CL and CR ports	Plastic plugs
L and R ports	Plastic plugs
CF port	Not available
PVE actuator	PVED-CLS s5 Deutsch (SIL2)
Firmware version	Standard
Firmware revision	2.02
Firmware package	Not applicable
Additional information	No additional info
Cut off connector	Deutsch
Cut off coil voltage	12 VDC
Relief valve setting	190-200 Bar
Shock valve setting	240-264 bar
Dynamic orifice	No priority spool
PP orifice	No priority spool
LS orifice	Regular. 1.2 mm LS orifice
Reaction Switch	Choose this option if orbital displacement is higher than 300 cc/rev
Special feature	No special feature
Product Label	Danfoss Standard Label
Paint	Painted black
Software ID	SWID001508
Label	Danfoss Standard Label
Proposition 65	Cancer and Reproductive Harm

83106883: frequently asked questions

When can 83106883 be shipped?

83106883 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83106883 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83106883 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83106883, subject to availability and destination.
