Danfoss 83105085

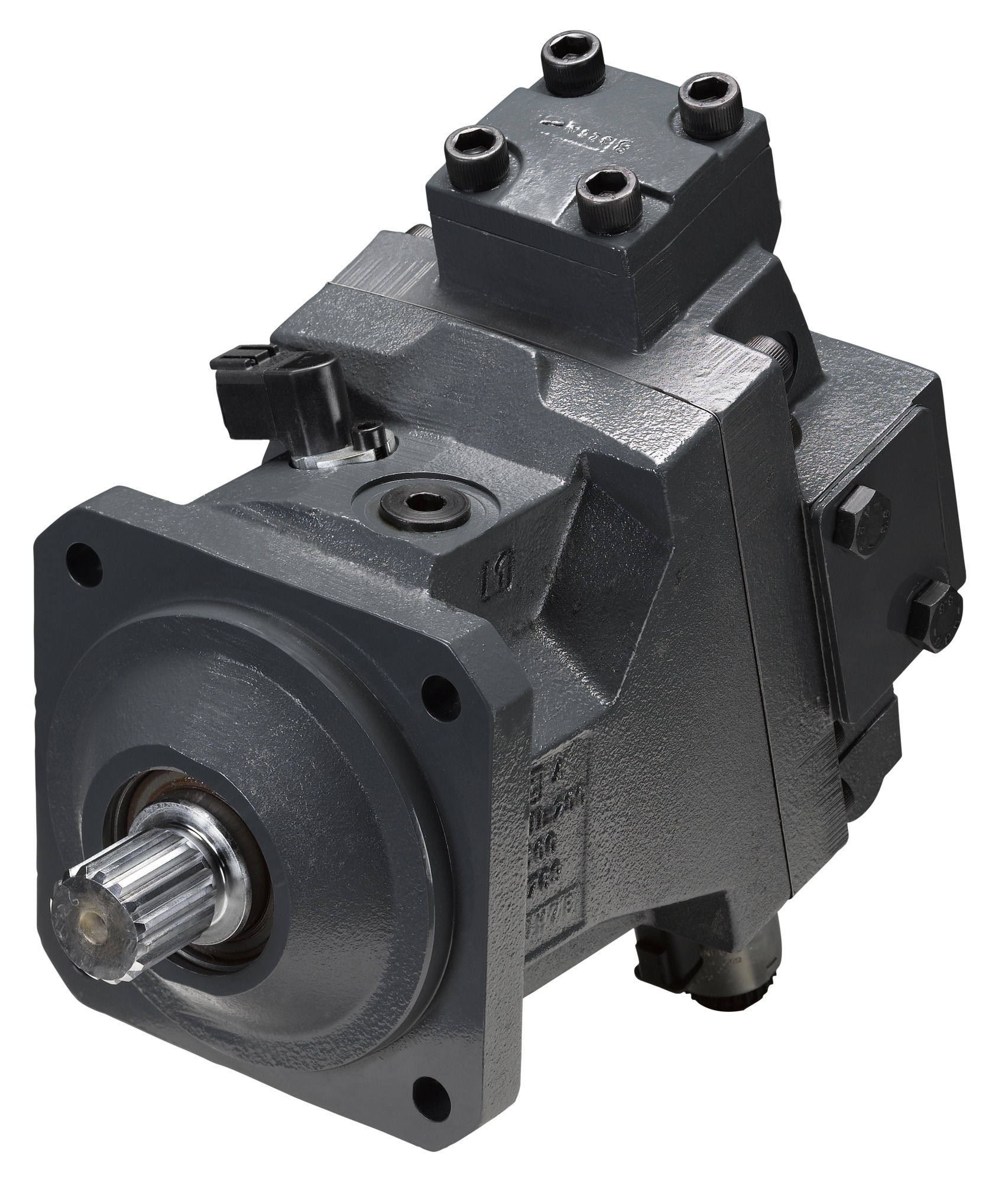

MOTOR-VAR-DISPL H1B080

MPN: 83105085
Category: Variable displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83105085?

Danfoss MOTOR-VAR-DISPL H1B080, manufacturer part number 83105085. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Bent-axis variable motor
Frame Size	Displacement 80 cc/rev at maximum angle
Revision	Product version A of H1B series
Configuration of ports	Port configuration: inch according to ISO 11926-1
Control	Hydraulic 2 position, system pressure supply, default (without control pressure) = maximum displacement, no pressure compensatoroverride
Pressure compensator override and brake pressure defeat	Without pressure compensator override and without brake pressure defeat, internal system pressure supply, use with “HE” control
Threshold setting	Not applicable
Orifices	0.8mm diameter orifices M4 and M5
Endcap type and ports	Endcap for 2 position and pressure compensator controls, side ports ISO 6162 Type 1 (metric), use with “E”, “F”, “T”, “P” and“H*” controls
Flange and housing	Cartridge-flange motor housing, with speed sensor port
Shaft and speed ring	W35x2x30x16x9g DIN 5480, with speed ring
Sensor	Speed sensor ready (plugged)
Loop flushing shuttle system	Loop flushing, 6.5 bar shuttle shift pressure
Loop flushing relief valve	5 l/min, non adjustable, 16 bar cracking pressure
Special hardware features	Standard hardware feature 2 position standard
Minimum displacement	030 cc/rev minimum displacement setting
Maximum displacement	100% maximum displacement, non adjustable, use with "E", "F", "T","P" & "H*"
Pressure compensator override setting	No pressure compensator override function, use with “L”, “M”, “E”, “F” and “H*” controls
Paint and nametag	Danfoss nametag
Proposition 65	Cancer and Reproductive Harm
