Danfoss 83104898

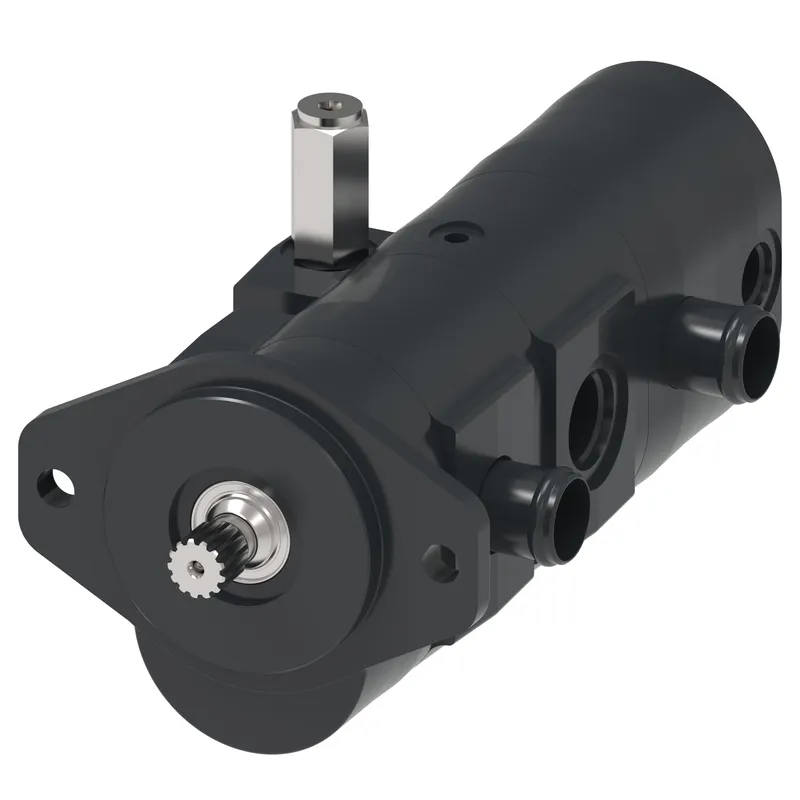

GEAR PUMP-RH, QUAD DISPL

MPN: 83104898
Category: Rugid cast iron gear pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83104898?

Danfoss GEAR PUMP-RH, QUAD DISPL, manufacturer part number 83104898. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Product	D-series right-hand quadruple
Front displacement and input drive	10.8cc / splined shaft: SAE 13 tooth spline x 1.62 inch extension
Mounting flange	SAE B 2 bolt
Porting after first section	Bearing plate, 1 1/2 inch beaded tube inlet, 7/8-14 ORB outlet, note: inlet tube is stepped down to 1 1/4 inch
Second section displacement	10.8 cc [0.66 CIR]
Porting after second section	(N)PORTS,NO INLET,7/8" ORB
Third section displacement	11: 10.8cc [0.66 CIR]
Porting prior to rear cover	Bearing plate, 1 1/2 inch beaded tube inlet, 7/8-14 ORB outlet, note: inlet tube is stepped down to 1 1/4 inch
Rear displacement	9.5cc [0.58 CIR]
Rear cover and porting	Cover, no inlet, 7/8-14 ORB outlet
Control setting	No controls
Relief valve pressure	No relief valve
Screws	BN: Screws
Nameplate	Standard nameplate
Special features	Standard black paint
Proposition 65	Cancer and Reproductive Harm
