Danfoss 83104033

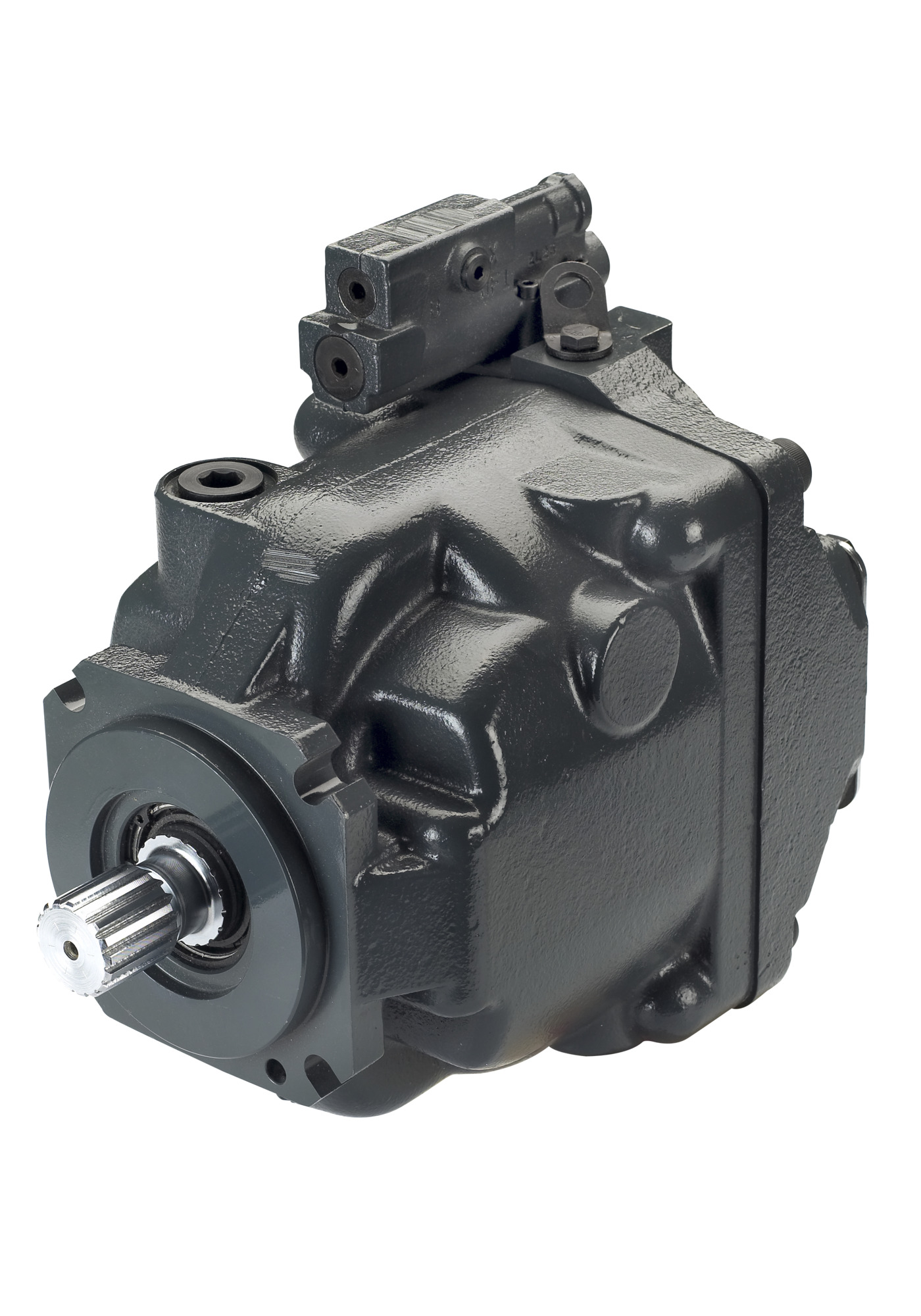

PUMP-VAR DISPL, CW S45PVOC_E

MPN: 83104033
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83104033?

Danfoss PUMP-VAR DISPL, CW S45PVOC_E, manufacturer part number 83104033. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	E frame axial piston open circuit pump
Rotation	Clockwise rotation
Displacement and load life	130 cc/rev - 310 bar maximum continuous rated pressure
Control type	Pressure compensated / load sensing [PC pressure range: 100-280 bar, LS pressure range: 10-40 bar]
Pressure compensator setting	200 bar [2900 psi]
Load sensing setting	20 bar [290 psi]
Torque limiter setting	Not applicable
Choke orifice	None
Gain orifice	Standard orifice
Shaft, auxiliary flange, and endcap	14 tooth 12/24 pitch shaft, radial, 2.5in inlet, 1.25in outlet, metric thread, no aux pad
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-C 4-bolt flange, SAE O-ring ports
Displacement limiter	Adjustable displacement limiter set to max flow
Special hardware	Special hardware - none
Special features	Black paint, Danfoss tag
Proposition 65	Cancer and Reproductive Harm
