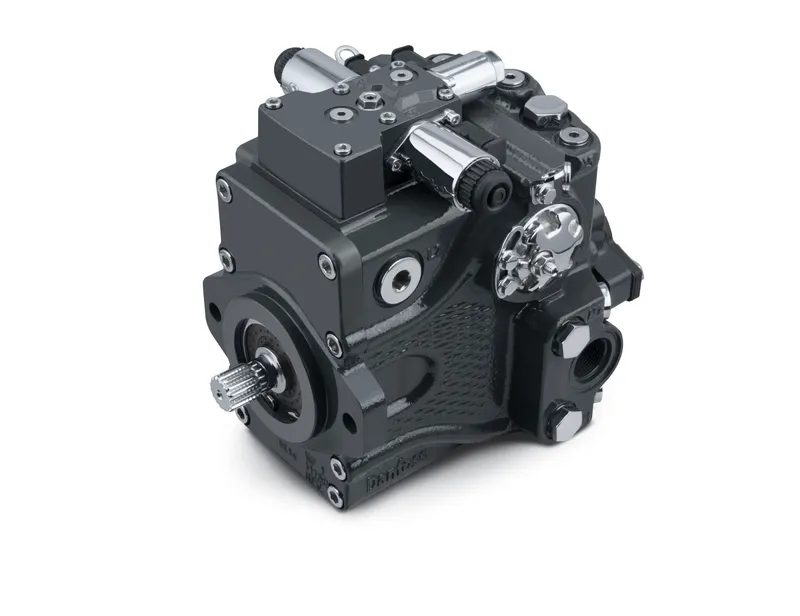

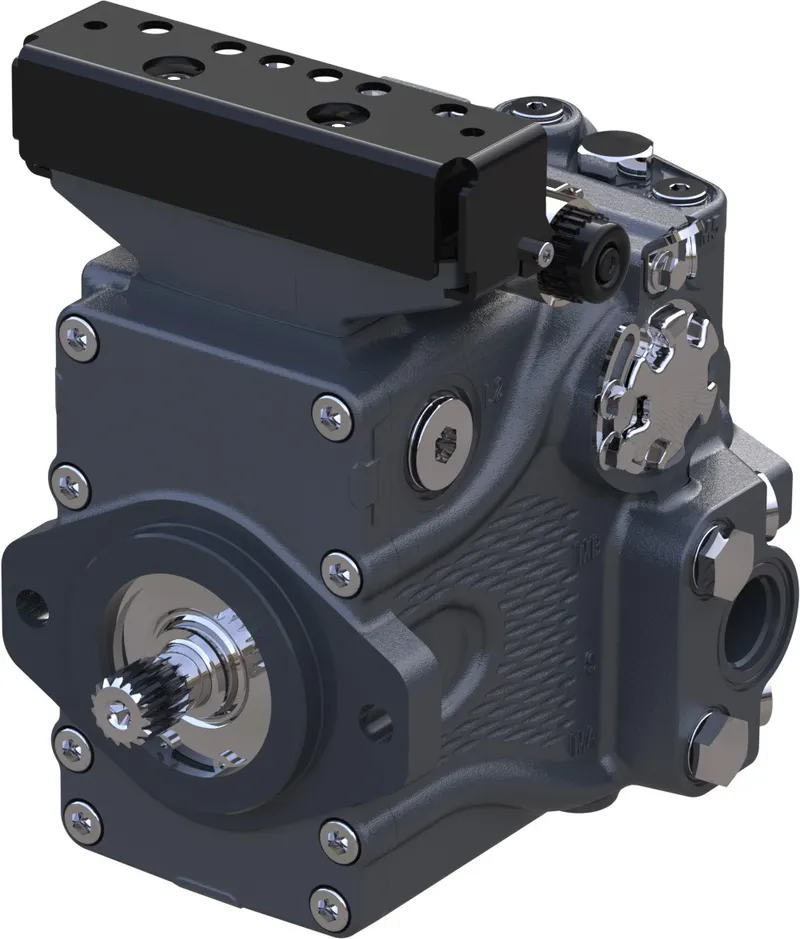

Danfoss 83103692

PUMP-VAR DISPL MP1P38R

MPN: 83103692
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83103692?

Danfoss PUMP-VAR DISPL MP1P38R, manufacturer part number 83103692. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	MP1 - Series
Product type	Variable pump
A: DISPLACEMENT & ROTATION	38 cc/rev max/variable displacement, clockwise
B: PRODUCT VERSION & UNIT	Product version A, metric
C: AC & INCHING	Automotive control, none
D: CONTROL	Manual displacement control
F: ORIFICES	Pressure = 1.0mm, A+B = none, TA+TB = 0.8mm
H: MOUNTING FLANGE	SAE-B flange
J: INPUT SHAFT	15 tooth 16/32
T: FILTRATION	Filtration, remote full flow
K: CHG PMP AND AUX PAD	9cc/rev charge pump, no auxiliary pad, metric
E: DISPLACMENT LIMITATION	No displacement limiters
M: HIGH PRESSURE SETT SIDE A	High pressure setting A side, 250 bar
N: HIGH PRESSURE SETT SIDE B	High pressure setting B side, 250 bar
Z: POR SETTING	POR setting, none
L: LOOP FLUSHING	Loop flushing, none
V: CHARGE RELIEF PRESSURE SETT	20 bar charge pressure relief setting
G: PORTING TYPE	System ports, O-ring boss, metric per ISO 6149-1
W: SPECIAL HARDWARE FEATURES	Special hardware, standard, 38cc, clockwise
X: PAINT AND NAMETAG	Black paint, standard nametag, layout A
Y: SETTINGS	Settings, manual displacement control control handle standard position
Proposition 65	Cancer and Reproductive Harm

83103692: frequently asked questions

When can 83103692 be shipped?

83103692 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83103692 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83103692 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83103692, subject to availability and destination.
