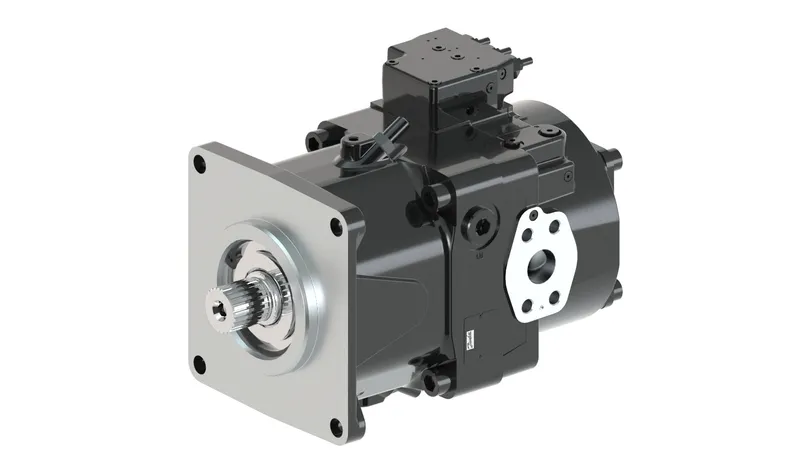

Danfoss 83103285

PUMP-VAR DISPL, D1P193

MPN: 83103285
Category: D1P open-circuit high-power axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83103285?

Danfoss PUMP-VAR DISPL, D1P193, manufacturer part number 83103285. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

D1P Product	D1P variable axial piston pump
Displacement	193cc/rev max/variable displacement
Rotation	Right hand - clockwise
Product version	Product version A
Control type	Pressure compensated control + load sensing control
Input shaft	Spline Shaft SAE J744, D1P193 15T 8/16 DP, D1P260&290 17T 8/16 DP
Front mounting flange	SAE J744 165-4 (E)
Endcap	Radial side flange ports inlet: SAE J518, 3 1/2 inch, M16x2 outlet: SAE J518, 1 1/2 inch, M16x2 with impeller
Auxiliary flange	No auxiliary flange
Power control setting	No power control
Pressure compensator setting	150 bar pressure compensated control setting
Load sense setting	No load sensing control
Hydraulic displacement control start pressure setting	No hydraulic displacement control
Maximum displacement setting	100% of maximum displacement
Minimum displacement setting	0% of displacement
Special hardware	No special hardware
Special feature	Black paint, Danfoss tag, format A, without control oil filter
Proposition 65	Cancer and Reproductive Harm

83103285: frequently asked questions

When can 83103285 be shipped?

83103285 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83103285 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83103285 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83103285, subject to availability and destination.
