Danfoss 83102714

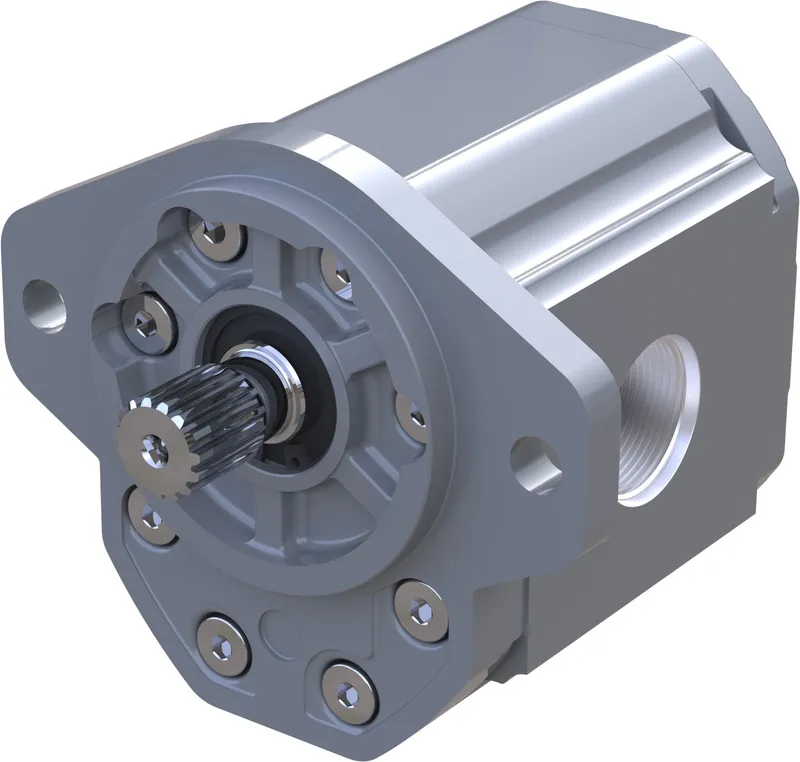

GEAR PUMP GR3 FIXED DISPL

MPN: 83102714
Category: GearMe single stage

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83102714?

Danfoss GEAR PUMP GR3 FIXED DISPL, manufacturer part number 83102714. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

B: Displacement	Displacement 22 cc
C: Rotation	Product with clockwise rotation
D: Project version	Standard Version of Project
E: Mounting flange	Flange with pilot D.101,6 and 2 holes for bolts and special shaft seal BCC
F: Drive gear	Splined SAE J498-13T-16/32-Dp Class 1FIT -for flange SAE 'B' ; rear spline DIN 5482 22 x 19 L=16,5 SC47
G: Rear cover	Not assigned (with intermediate flange instead cover)
H: Inlet size	25x26,19x52,37x3/8-16UNC
I: Outlet size	18,5x22,23x47,63x3/8-16UNC
J: Ports position	Standard from catalogue
K: Seals	Two opposite shaft seal
L: Screws	Screws standard
M: Valve setting	without setting
N: Mark type	Standard Marking
O-Ring, Inside Diameter	Slash
O: Mark position	Position Marking standard
Proposition 65	Cancer and Reproductive Harm
Single Stage Family	Gr3 Main stage
Slash separator	Slash
