Danfoss 83101346

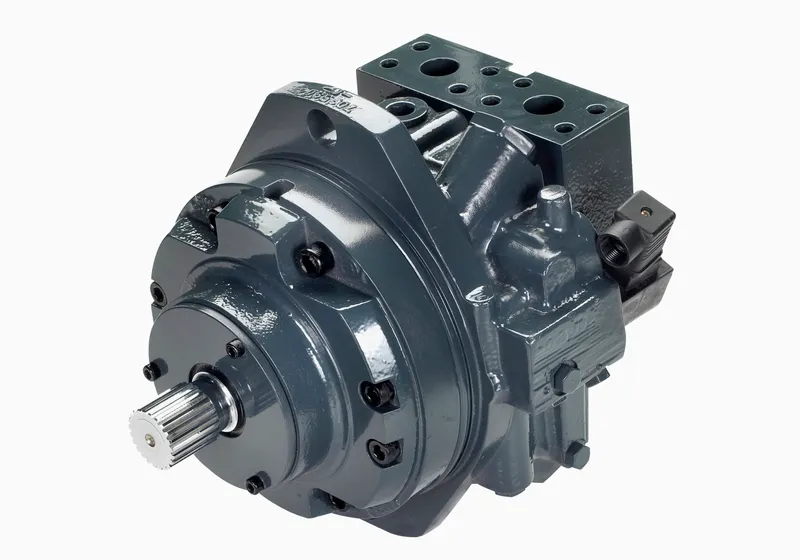

PUMP-VAR-DISPL CW 90PV130

MPN: 83101346
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83101346?

Danfoss PUMP-VAR-DISPL CW 90PV130, manufacturer part number 83101346. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

F: DISPLACEMENT LIMITATION	Limitation Both Sides
G: ENDCAP PORTS	twin ports
H: CHARGING SYSTEM	26 cc/rev
J: AUXILARY MOUNTING PAD	SAE-C with 14 T coupling, 4 bolt adapter,(2) ½-13 UNC tapped holes for support of pump
K: CHARGE PRESSURE SETTING	24 bar
L: INPUT SHAFT	27T 16/32 Pitch
M: CONTROL	3 positon F-N-R solenoid control ( 24 V , DC ),DIN connector
M: CONTROLS	3 positon F-N-R solenoid control ( 24 V , DC ),DIN connector
N: FILTRATION	Remote filtration
P: HIGH PRESSURE REGULATION	Port A & B: fast response PL, up to 450 bar settings
Proposition 65	Cancer and Reproductive Harm
SERIES 90 PUMP TYPE	Series 90 130cc/rev, clockwise rotation
T: CONTROL ORIFICES	FNR (P) 0,66 (TA) 1,2 (TB) 1,2 (A) none (B) none
W: SPECIAL HARDWARE FEATURES	CP15 +0.5 VALVE PLATE
Y: HIGH PRESSURE SETTING A	350 Bar
Z: HIGH PRESSURE SETTING B	350 Bar
