Danfoss 83101274

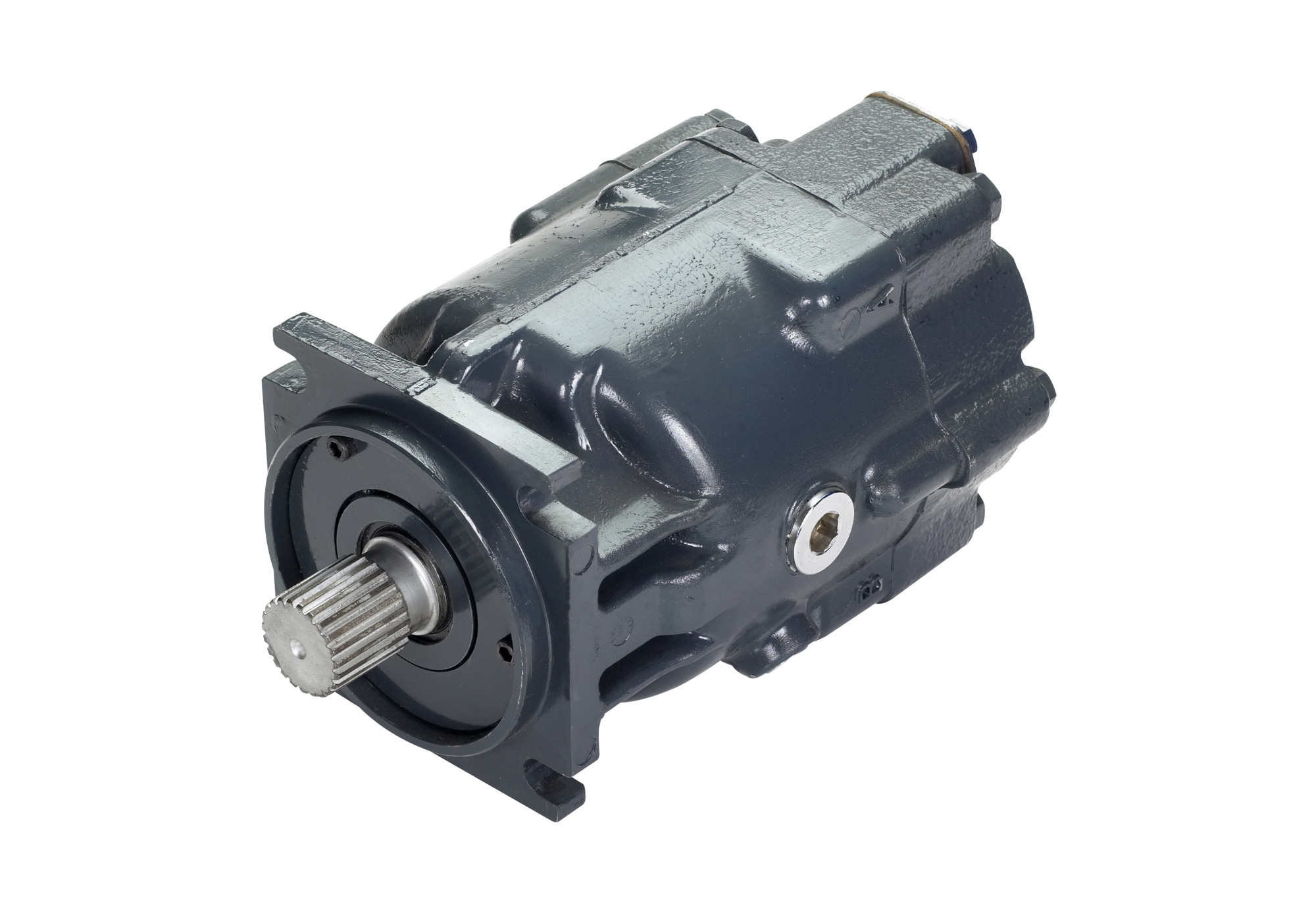

MOTOR-FIX DISPL 90MF075

MPN: 83101274
Category: Fixed displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83101274?

Danfoss MOTOR-FIX DISPL 90MF075, manufacturer part number 83101274. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

F: NOT USED	NOT APPLICABLE
G: END CAP	1 inch Twin Ports, 6000 PSI
H: LOOP FLUSHING TYPE	With Loop Flushing Valve
J: NOT USED	Not Applicable
K: CHARGE PRS RLF AMS	Loop Flushing Flow 16 l/min at 25 bar, Cracking Pressure 16 bar, Orifice 3x1,5 mm
L: SHAFT	Splined Shaft, 23 Teeth, Pitch = 16 / 32
M: NOT USED	NOT APPLICABLE
N: NOT USED	NOT APPLICABLE
P: PRESSURE REGULATION	No High Pressure Regulation
Proposition 65	Cancer and Reproductive Harm
Series 90 Displacement	75 Cubic Centimeters per Revolution
Series 90 Flange Style MF	Fixed Motor, SAE Flange
Series 90 Product Line	Series 90
T: NOT USED	NOT APPLICABLE
W: SPECIAL HARDWARE FEATURE	Speed Sensor, Weather-Pack Connector, 7-32V, Non Direction Sensing, One Speed Signal, Open Collector, KPPx16408
Y: HIGH PRS SETTING PORT A	Pressure Settings Not Adjusted
Z: HIGH PRS SETTING PORT B	Pressure Settings Not Adjusted
