Danfoss 83100613

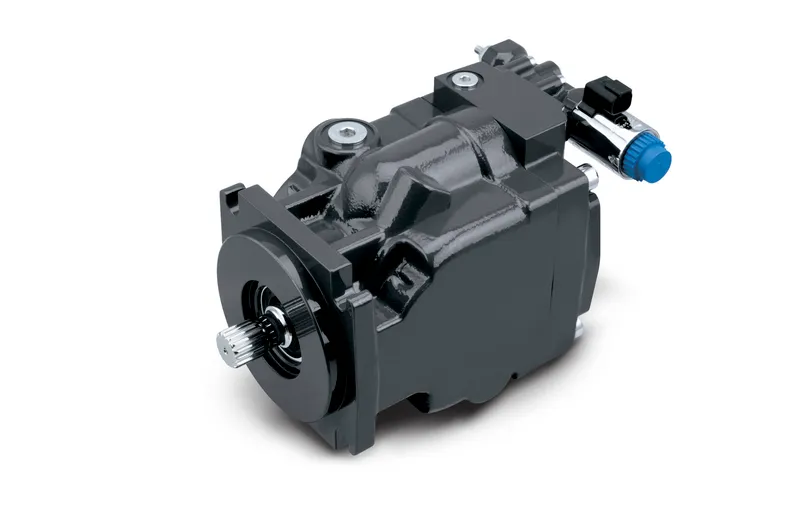

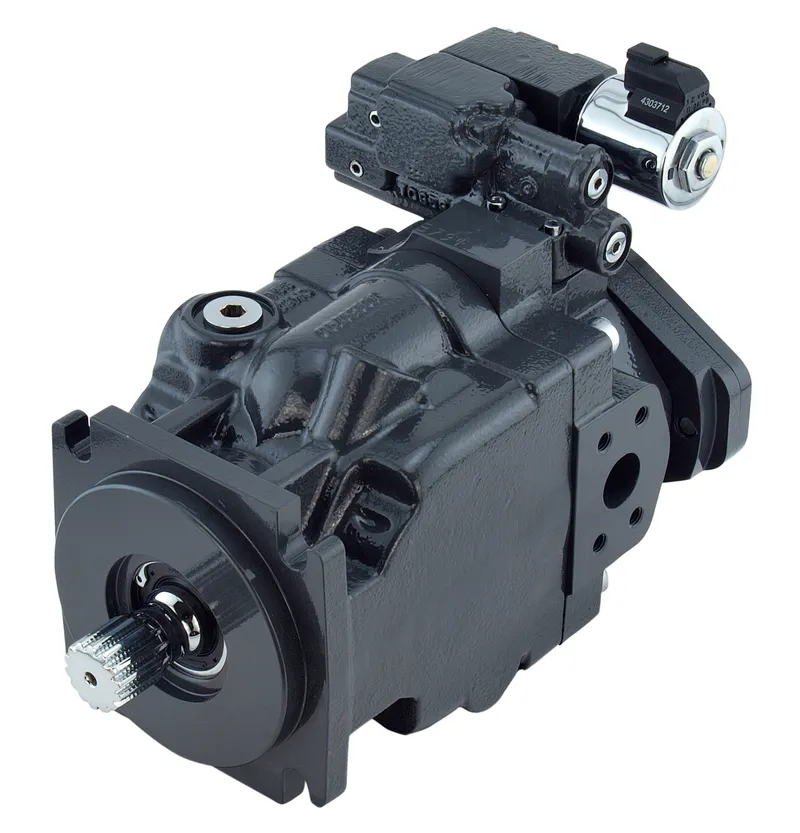

PUMP-VAR DISPL, CCW S45PVOC_J

MPN: 83100613
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 83100613?

Danfoss PUMP-VAR DISPL, CCW S45PVOC_J, manufacturer part number 83100613. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	J frame axial piston open circuit pump
Rotation	Counter-clockwise rotation
Displacement and load life	60 cc/rev - 310 bar maximum continuous rated pressure
Control type	Pressure compensated / load sensing [PC pressure range: 100-280 bar, LS pressure range: 10-40 bar]
Pressure compensator setting	210 bar [3045 psi]
Load sensing setting	20 bar [290 psi]
Torque limiter setting	Not applicable
Choke orifice	None
Gain orifice	Standard orifice
Shaft, auxiliary flange, and endcap	14 tooth 12/24 pitch shaft, no auxiliary, axial, inlet: 4-bolt split flange (2 inch port, 0.5 inch threads), outlet: 4-bolt splitflange (1 inch port, 0.375 inch threads), with displacement limiter
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-C 4-bolt flange, SAE O-ring ports
Displacement limiter	Adjustable displacement limiter set to max flow
Special hardware	Special hardware - none
Special features	Black paint, Danfoss tag
Proposition 65	Cancer and Reproductive Harm

83100613: frequently asked questions

When can 83100613 be shipped?

83100613 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83100613 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83100613 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83100613, subject to availability and destination.
